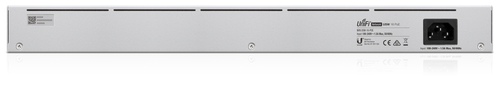

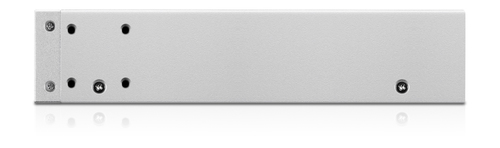

Name: Ubiquiti UniFi 16-Port PoE, L2/L3, Gigabit Ethernet Managed Switch
Brand: Ubiquiti Networks
SKU: SWHO-238
Price: 371.99 USD
Availability: InStock

Ubiquiti UniFi 16-Port PoE, L2/L3, Gigabit Ethernet Managed Switch

In Stock

UK Free Shipping

$371.99 exc. VAT

Description
Documents
Reviews

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Specifications

Management features
Switch layer	L2/L3
Switch type	Managed
Ports & interfaces
SFP module slots quantity	2
Installed SFP+ modules quantity	0
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Network
VLAN support	Yes
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
Flow control support	Yes
Spanning tree protocol	Yes
Full duplex	Yes
Port mirroring	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
Data transmission
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	26.78 Mpps
Throughput	18000 Mpps
Throughput	18000 Mpps
Switching capacity	36 Gbit/s
Security
Authentication type	IEEE 802.1x, RADIUS
Design
LED indicators	Activity, Link, PoE, Speed, System
Product colour	Silver
Form factor	1U
Rack mounting	Yes
Power
DC input voltage	44 - 57 V
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power supply included	Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	48 W
Power over Ethernet (PoE) power per port	32 W
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 40 °C
Weight & dimensions
Weight	2.8 kg
Height	43.7 mm
Depth	200 mm
Width	442.4 mm
Certificates
Certification	CE, FCC, IC
