Imagine a busy office where every device fights for bandwidth and power. The network slows, cameras lose feed, and phones drop calls. The Ubiquiti UniFi Pro 48-Port PoE, L2/L3, Gigabit Managed Switch, Rack mounting, 1U gives you a single, reliable hub that powers and connects all your gear. It stops bottlenecks and keeps your business running smoothly.

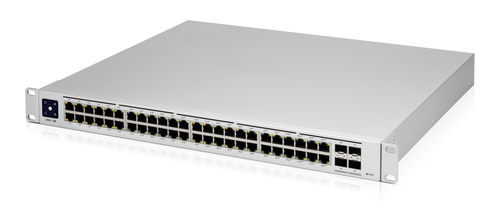

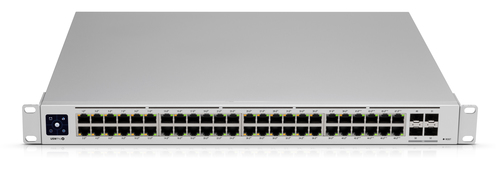

Ubiquiti UniFi Pro 48-Port PoE, L2/L3, Gigabit Managed Switch, Rack mounting, 1U
Many small and medium businesses struggle with too many separate switches, limited power, and complex configuration. When a switch cannot handle the load, users experience lag and equipment may lose power. This switch solves the problem by offering 48 gigabit ports, 40 PoE+ ports, and full L2/L3 management in a compact 1U rack. You get high-speed data, reliable power, and easy control from a single device, so your network stays fast and stable.
Usages
The switch works well in a corporate office where dozens of desktops, VoIP phones, and Wi-Fi access points need power and fast data. It is ideal for a retail store that runs security cameras, digital signage, and point-of-sale terminals from the same device. In a small data center it can serve as a core layer, linking servers with 10 Gb fiber while still feeding rack-mount servers with PoE. Any environment that requires reliable power and high-speed connectivity will benefit.
Specifications
| Management features |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-sensing |
Yes |
| Flow control support |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Data transmission |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
130.944 Mpps |
| Throughput |
88000 Mpps |
| Throughput |
88000 Mpps |
| Switching capacity |
176 Gbit/s |
| Security |
| Authentication type |
IEEE 802.1x, RADIUS |
| DHCP features |
DHCP server |
| Design |
| LED indicators |
Activity, Link, PoE, Speed, System |
| Product colour |
Silver |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
| Input current |
11.54 A |
| DC input voltage |
44 - 57 V |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Number of power supply units |
1 |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
600 W |
| Power over Ethernet (PoE) power per port |
64 W |
| Power over Ethernet plus (PoE+) ports quantity |
40 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-5 - 40 °C |
| Weight & dimensions |
| Height |
43.7 mm |
| Depth |
399.6 mm |
| Width |
442.4 mm |
| Certificates |
| Certification |
CE, FCC, IC |
