UfiSpace S9500-30XS 30-Port 10/25/100G Disaggregated Cell Site Gateway Router
The UfiSpace S9500-30XS is a compact disaggregated cell site gateway router designed for modern telecom networks transitioning from legacy infrastructure to 5G New Radio. Its combination of 100M/1G, 10G/25G, and 40G/100G interfaces provides flexible connectivity for legacy BBU, 5G BBU, and high-speed backhaul network requirements.
The S9500-30XS supports SyncE and IEEE 1588v2 with T-GM, T-BC, T-TC, T-TSC capabilities, along with GNSS, 1PPS, 10MHz, ToD, and BITS timing interfaces. These timing functions make it suitable for cell site deployments where accurate synchronization is required for mobile transport networks and evolving 5G infrastructure.

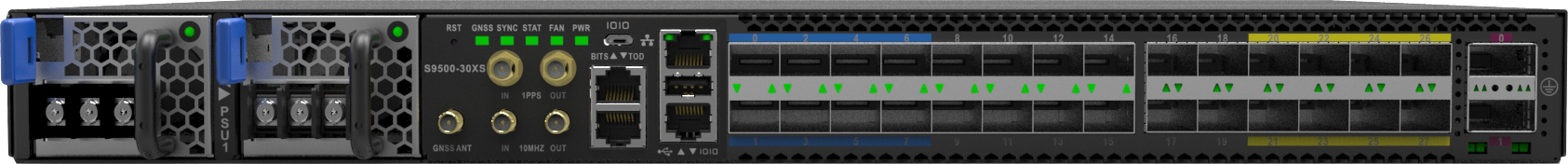

Its 30-port design includes 20 SFP+ ports for 100M/1/10G connectivity, 8 SFP28 ports for 1/10/25G connectivity, and 2 QSFP28 ports for 40/100G connectivity. The router also provides 3GB deep buffering and an Intel Broadwell-DE 4-Core processor to support demanding network traffic and backhaul applications.
Designed for outside plant installation, the S9500-30XS meets TP76200 GR-3108 Class 2 OSP and NEBS Level 3 requirements. Its compact 1RU chassis fits standard 19-inch racks, while hot-swappable power supplies and fan modules simplify maintenance and help support continuous network operation.
The UfiSpace S9500-30XS can be deployed for cell site aggregation, 5G transport, mobile backhaul, and disaggregated open networking infrastructure. Its OCP Accepted and TIP compliant design supports open standard NOS applications, providing flexibility for network management, orchestration, and future feature expansion.
Key Features
-
Supports SyncE and IEEE 1588v2 timing
-
2 x 40/100G QSFP28 ports for high-speed backhaul
-
8 x 1/10/25G SFP28 ports for 5G connectivity
-
20 x 100M/1/10G SFP+ ports for legacy connectivity
-
3GB deep buffering with Intel 1.5GHz quad core CPU
-
Integrated GNSS receiver for master clock implementations
-
1RU compact design with 300mm depth for 19-inch racks
-

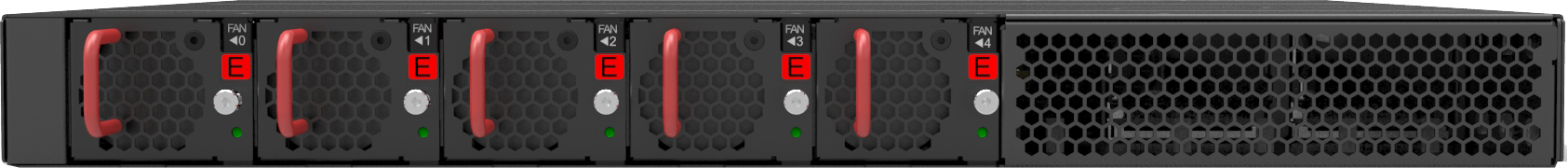

Hot-swappable power and fan modules with redundancy support
SPECIFICATION
| PORTS |
|
| QSFP28 Ports |
2 x 40/100G QSFP28 ports |
| SFP28 Ports |
8 x 1/10/25G SFP28 ports |
| SFP+ Ports |
20 x 100M/1/10G SFP+ ports |
| Serial Console Port |
1 x RJ45 serial console port |
| Micro USB Console Port |
1 x Micro USB console port |
| Management Port |
1 x 100/1000M RJ45 management port |
| General Purpose Port |
1 x USB 2.0 Type-A general purpose port |
| Timing Ports |
GNSS, 1PPS, 10M, ToD, and BITS timing ports |
| FEATURES |
|
| Timing |
Supports SyncE and IEEE 1588v2 T-GM, T-BC, T-TC, T-TSC |
| Timing Input/Output Interfaces |
Rich timing input/output interfaces: ToD, BITS, 1PPS and 10MHz |
| GNSS |
Internal GNSS receiver for master clock implementations |
| Legacy Connectivity |
Supports 100M/1G for legacy BBU, 10G/25G for 5G BBU |
| Backhaul |
Supports backhaul data rates up to 100 Gbps |
| Buffering and CPU |
3GB deep buffering and Intel 1.5 GHz quad core CPU for network operation |
| Timing Accuracy |
Class C timing accuracy |
| OCXO |
Integrated Stratum 3E OCXO with optional hold over performances |
| BMC |
Individual BMC for monitoring and managing health status |
| Power Redundancy |
2 hot swappable power supplies with 1+1 redundancy support |
| Fan Redundancy |
5 hot swappable fan modules with 4+1 redundancy support |
| Chassis Design |
1 RU compact design with 300mm depth suitable for standard 19" racks |
| PHYSICAL |
|
| Processor |
Intel® Broadwell-DE 4-Core @ 1.5GHz |
| Memory |
Standard : 8GB DDR4, Premium : 16GB DDR4 (Up to 32GB) |
| Storage |
Standard : 32GB SSD, Premium : 128GB SSD |
| ASIC |
Broadcom Qumran-AX BCM88470 |
| BMC |
AST2400 |
| Chassis |
1RU, 440W x 302D x 43.5H mm (17.32" x 11.89" x 1.713") |
| Weight without FRU |
4.76 kg (10.49 lbs) |
| Redundancy |
1+1 Hot swappable power units, 4+1 Hot swappable fan units |
| ENVIRONMENTAL |
|
| Power Specs. |
AC input: 100 to 240V, 6ADC input: -36 to -75V, 16A, Typical power: 153 Watts (no transceiver) |
| Operating Specs. |
Operating temperature: -40°C to 65°C (-40°F to 149°F), Operating humidity: 5% to 85% (RH),
non-condensing
|
| Non-Operating Specs. |
Storage temperature: -40°C to 70°C (-40°F to 158°F), Storage humidity: 5% to 93% (RH),
non-condensing
|
