UfiSpace S9600-64X 64-Port, 25/100G Open Aggregation Router

UfiSpace S9600-64X 64-Port 25/100G Open Aggregation Router

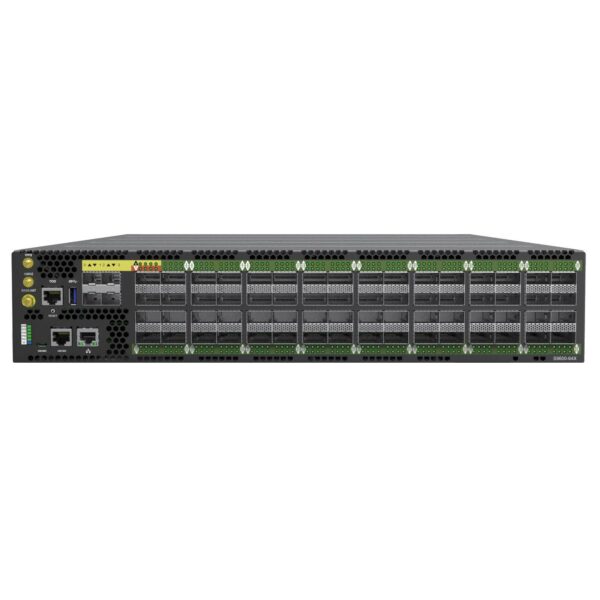

The UfiSpace S9600-64X is a high-density, multi-function open aggregation router designed for high-capacity network aggregation and modern telecom infrastructure. It provides 64 x 40/100G QSFP28 ports along with 4 x 1/10/25G SFP28 ports, giving network operators flexible options for high-speed aggregation and in-band connectivity.

The router supports SyncE and IEEE 1588v2, including T-GM, T-BC/OC, T-TC, and T-TSC functions, as well as full segment routing over IPv6 (SRv6). These capabilities make the S9600-64X suitable for 5G transport, service provider, data center, and other networks requiring high-speed routing and precise synchronization.

The S9600-64X includes Class C timing accuracy, an integrated Stratum 3E OCXO with optional hold over performances, and an internal GNSS receiver for master clock implementations. GNSS, 1PPS, 10MHz, and ToD timing interfaces provide rich timing input and output connectivity for network synchronization deployments.

For management and system access, the router provides RJ45 and Micro USB serial console ports, a 100/1000M RJ45 management port, and a USB 3.0 Type-A general purpose port. It also includes BMC remote monitoring and management, 8GB deep buffering, and an optional 4x25G breakout configuration in place of port #0.

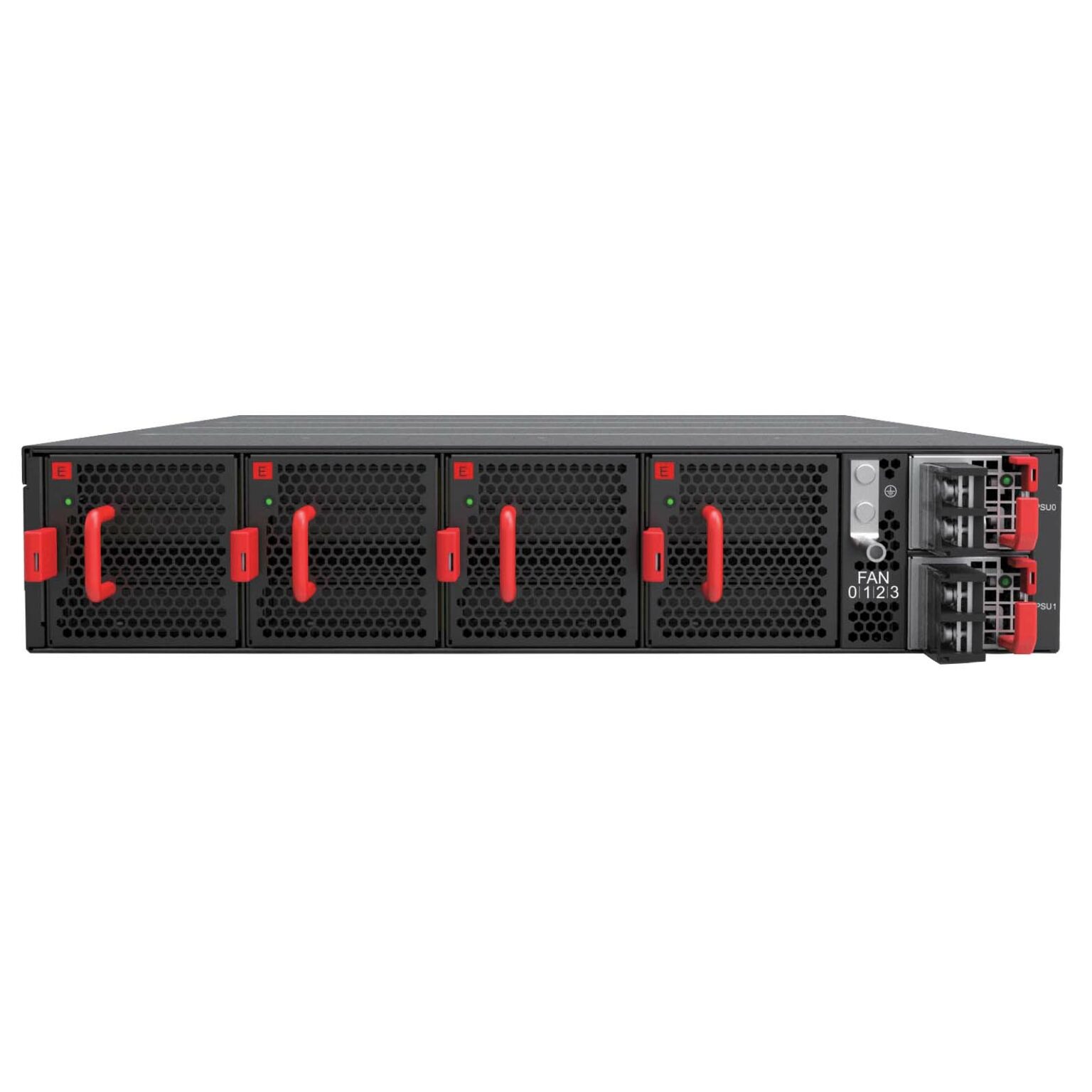

Built in a 2RU chassis with 762mm depth for standard 19-inch racks, the S9600-64X features two hot-swappable power supplies with 1+1 redundancy and four hot-swappable fan modules with 3+1 redundancy. Its Intel Skylake-D 8-Core processor, 32GB DDR4 memory, 128GB SSD, and Broadcom Qumran2c BCM88820 ASIC provide a platform for demanding aggregation applications.

Key Features

• 64 x 40/100G QSFP28 ports for high-density aggregation

• 4 x 1/10/25G SFP28 ports with optional 4x25G breakout

• Supports full segment routing over IPv6 (SRv6)

• Supports SyncE and IEEE 1588v2 timing functions

• Class C timing accuracy with integrated Stratum 3E OCXO

• Internal GNSS receiver with ToD, 1PPS and 10MHz interfaces

• 8GB deep buffering with BMC remote monitoring and management

• 1+1 redundant power supplies and 3+1 redundant fan modules

SPECIFICATION
