Tired of juggling separate PLC hardware and a separate HMI screen? Unitronics brings both together in one sturdy panel. The UniStream 15.6" PLC+HMI lets you control machines and see live data without extra wiring. If your plant suffers from downtime because of mismatched devices, this all-in-one controller can keep things running smooth. It saves space, cuts cost, and gives you a single point of control that is easy to program.

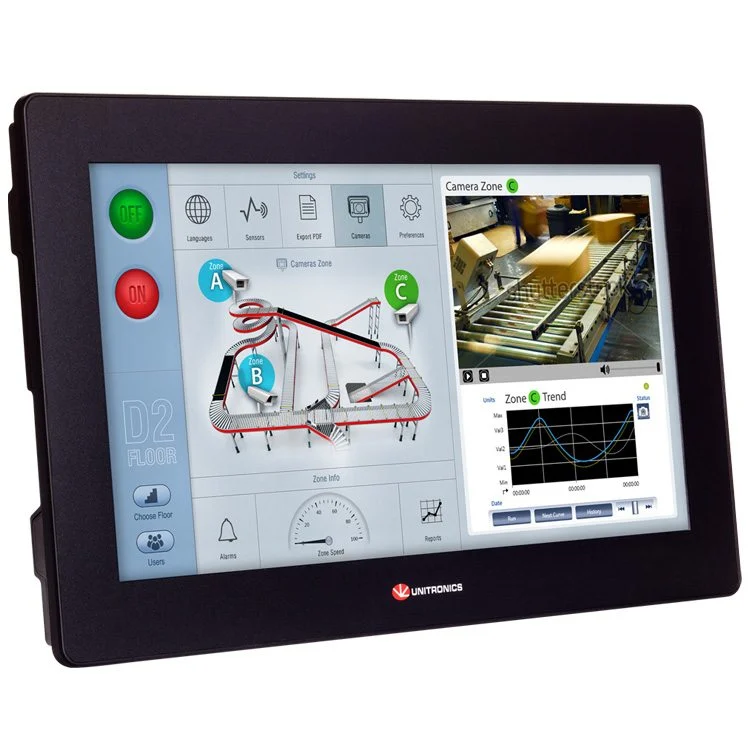

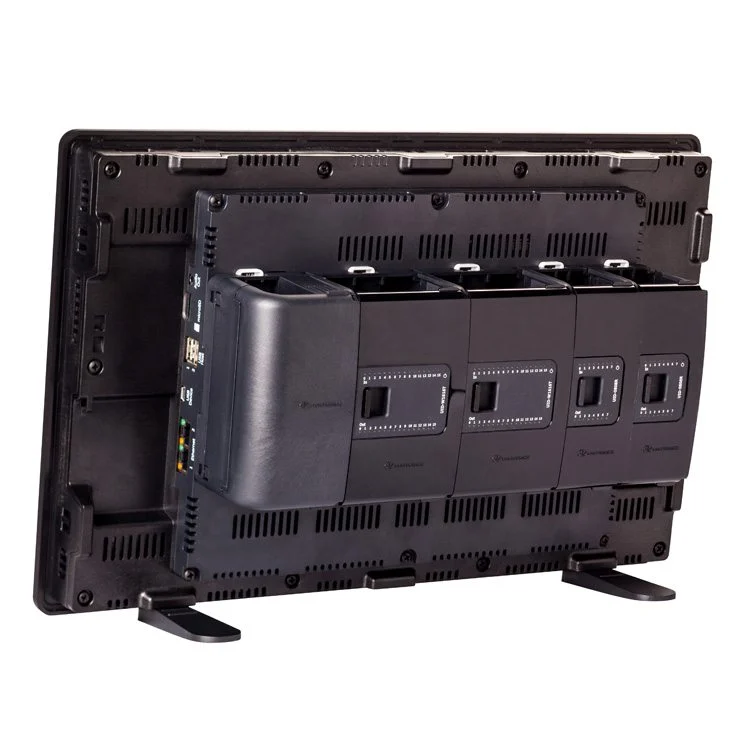

Unitronics UniStream 15.6" Programmable Logic Controller (PLC+HMI)
Many factories still use a separate PLC and a separate touch screen. That set-up creates extra cables, more points of failure, and longer commissioning time. The problem matters because each extra component adds cost and risk of error. The UniStream combines a powerful 24 V PLC with a 15.6-inch TFT touch screen in one panel. It lets you program, monitor, and adjust processes from a single device, so you spend less time troubleshooting and more time producing.
Key Features
- 15.6-inch TFT display with 1366 768 resolution.
- 16-million-color (24-bit) support for clear graphics.
- Resistive analog touch screen for reliable input.
- Two RJ45 Ethernet ports for fast network connections.
- Two USB Type-A host ports for programming and data logging.
- VNC client over Ethernet for remote monitoring.
- 24 VDC operating voltage with low current draw.
- Anti-glare surface for easy reading in bright light.
- CE, UL, UKCA, and EAC certifications for global compliance.
Specifications
| General |
|
| Model |
USL-156-B05 |
| Product Type |
UniStream® Display |
| Display Size |
15.6 in |
| LCD Type |
TFT |
| Touch Screen |
Resistive Analog |
| Color Support |
16M (24-bit) |
| Resolution |
1366 × 768 (WXGA) |
| Viewing Area |
344.23 × 193.53 mm |
| Brightness |
Typically 400 nits (cd/m²) at 25°C |
| Backlight Type |
White LED |
| Backlight Longevity |
50,000 hours |
| Panel Orientation |
Landscape / Portrait |
| Surface Treatment |
Anti-glare |
| Communication & Connectivity |
|
| Ethernet Ports |
2 × RJ45 |
| USB Host Ports |
2 × USB Type-A |
| Protocol |
VNC Client over Ethernet |
| Power |
|
| Operating Voltage |
24 VDC |
| Maximum Current Consumption |
0.8 A @ 24 VDC (1.54 A @ 12 VDC) |
| Mechanical |
|
| Mounting |
Panel Mount |
| Panel Cutout |
395 × 249 mm |
| Environmental |
|
| Front Panel Protection |
IP66 / NEMA 4X (when panel-mounted) |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Approvals |
|
| Certifications |
CE, UKCA, UL, EAC |
