Many factories still rely on people to do the same motion over and over. That creates fatigue, mistakes and higher labor cost. When a task is repetitive, safety becomes a concern and production slows down. The Universal Robots UR10e Collaborative Robot removes the need for a human to stay at the workstation, keeps the line moving, and protects workers from strain.

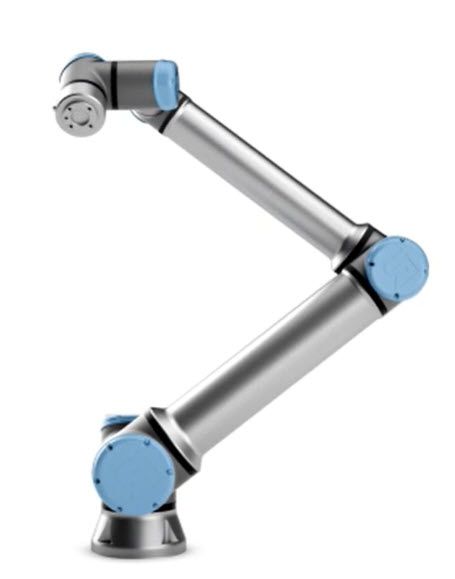

Universal Robots UR10e Collaborative Robot with Universal
Imagine a robot that works side by side with you, learns fast and never takes a break. The UR10e is a true collaborative robot that can lift 12.5 kg and reach 1300 mm, so it fits most small-to-medium tasks. It is built for easy programming on a 12-inch touchscreen, so you do not need a coding expert. If you are losing money because of slow manual work, this robot gives you a clear, safe and flexible solution.
Benefits
- Reduces worker fatigue by taking over repetitive motions.
- Boosts production speed with a 4 m/s arm movement.
- Improves safety with 17 configurable safety functions.
- Easy to program, so you can start using it in days.
- Low energy use, saving electricity costs.
Key Features
- Payload of 12.5 kg for most small parts.
- 1300 mm reach covers wide work areas.
- Six rotating joints give full flexibility.
- 12-inch touchscreen with PolyScope UI.
- 100 N force sensing for gentle handling.
- 0.05 mm repeatability for precise placement.
- IP54 rating protects against dust and splashes.
- Noise below 65 dB(A) for a quiet shop floor.
- Tool flange interface EN ISO-9409-1-50-4-M6.
- Two digital I/O and two analog I/O for easy integration.
Specifications
| Category |
Industrial Robots |
| Sub-Category |
Collaborative Robot (Cobot) |
| Model |
UR10e |
| Payload |
12.5 kg |
| Reach |
1300 mm |
| Degrees of freedom |
6 rotating joints |
| Programming |
12-inch touchscreen with PolyScope graphical user interface |
| Average power consumption (max) |
615 W |
| Average power consumption (moderate) |
350 W |
| Operating temperature |
0–50°C |
| Safety functions |
17 configurable safety functions |
| Compliance |
EN ISO 13849-1 (PLd Category 3), EN ISO 10218-1 |
| Performance |
|
| Force sensing |
Tool flange force/torque sensor |
| Force range |
±100 N |
| Torque range |
±10 Nm |
| Force precision |
±5 N |
| Torque precision |
±0.2 Nm |
| Force accuracy |
±5.5 N |
| Torque accuracy |
±0.5 Nm |
| Movement |
|
| Max TCP speed |
4 m/s |
| Pose repeatability (ISO 9283) |
±0.05 mm |
| Base axis range |
±360° |
| Base axis speed |
120°/s |
| Shoulder axis range |
±360° |
| Shoulder axis speed |
120°/s |
| Elbow axis range |
±360° |
| Elbow axis speed |
180°/s |
| Wrist 1 range |
±360° |
| Wrist 1 speed |
180°/s |
| Wrist 2 range |
±360° |
| Wrist 2 speed |
180°/s |
| Wrist 3 range |
±360° |
| Wrist 3 speed |
180°/s |
| Physical |
|
| Footprint |
Ø190 mm |
| Materials |
Aluminum, plastic, steel |
| Tool flange interface |
EN ISO-9409-1-50-4-M6 |
| Connector type |
M8 8-pin female |
| Cable length (robot arm) |
6 m |
| Weight including cable |
33.5 kg |
| Humidity |
≤90% RH (non-condensing) |
| IP classification |
IP54 |
| Cleanroom classification |
ISO 14644-1 Class 5 (≤40%), Class 6 (80%) |
| Noise |
<65 dB(A) |
| Robot mounting |
Any orientation |
| Tool I/O |
|
| Digital inputs |
2 |
| Digital outputs |
2 |
| Analog inputs |
2 |
| Tool I/O voltage |
12/24 V |
| Tool I/O power |
2 A (dual pin), 1 A (single pin) |
