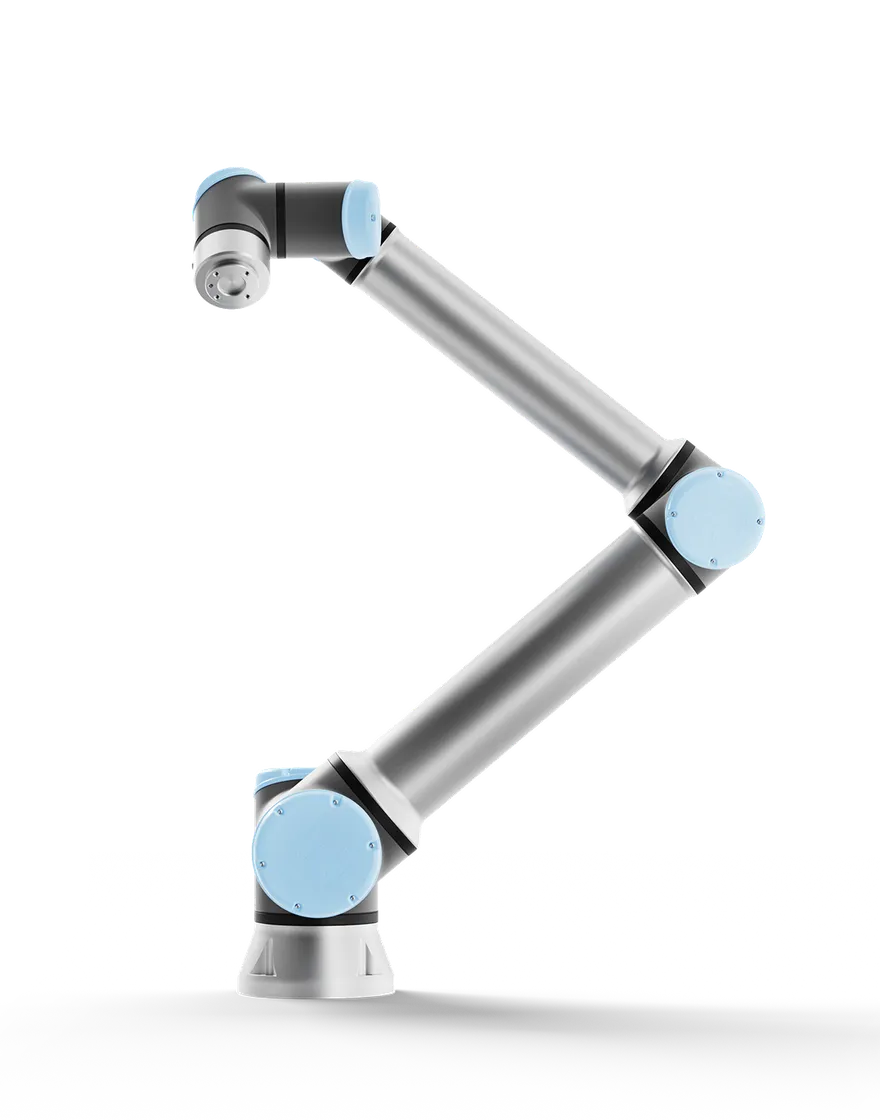

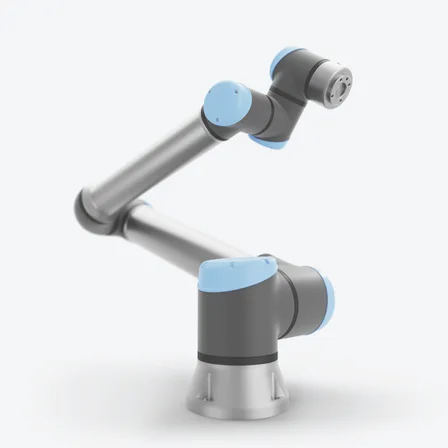

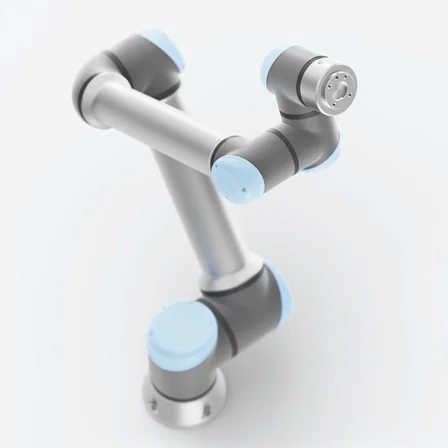

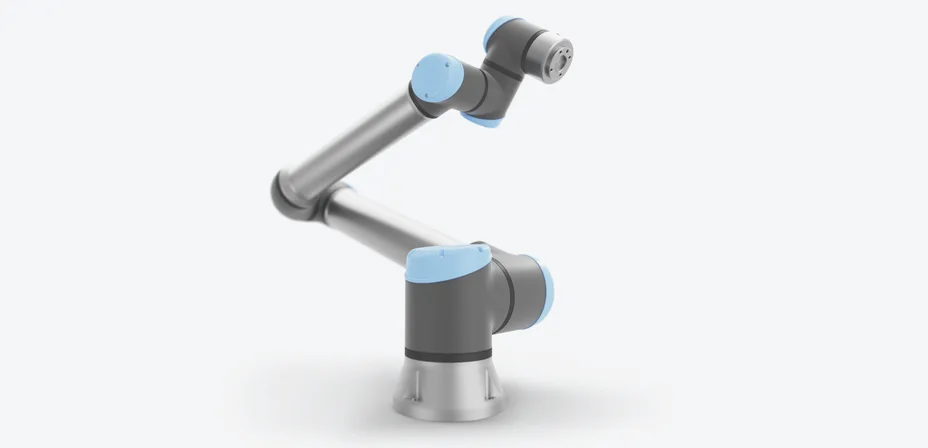

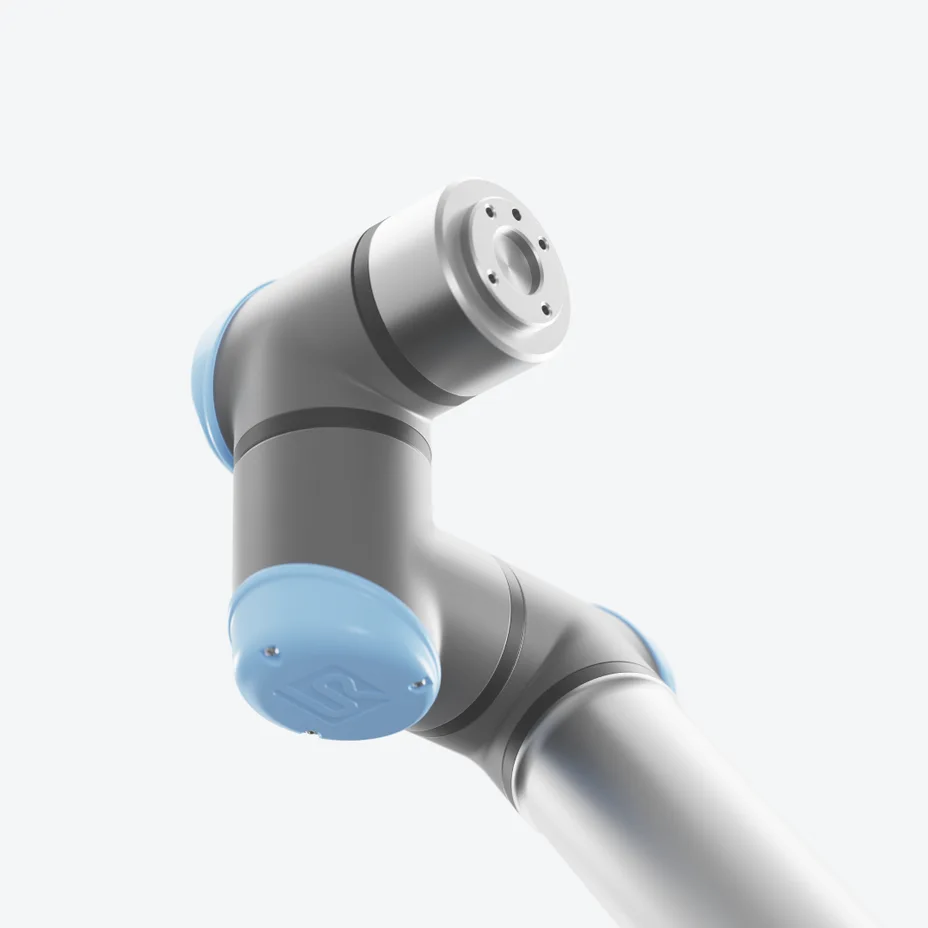

Name: Universal Robots UR12e, Collaborative Robot
SKU: RBOT-002
Price: 72486.99 USD
Availability: InStock

Universal Robots UR12e, Collaborative Robot

UK Free Shipping

Description
Documents
Reviews

Your business, your way

Automating repetitive tasks has, from a technology standpoint, never been the challenge. The challenge has been finding the right tool that will enable you to adapt to the future of manufacturing.

Our most popular collaborative, industrial robot, the UR12e, is supporting customers globally in automating regular tasks such as palletizing, machine tending and welding. It also enables the development of unbelievably creative solutions, such as plastic picking in rivers, glass manufacturing, or car fueling solutions.

This cobot provides sufficient payload and reach capabilities, and is bundled with our powerful ecosystem of UR+ components and kits, making many tasks possible to automate. At the same time, the UR12e is re-deployable and fast to reprogram, giving you the flexibility to change set-up, when required.

Productivity

Increase uptime and productivity, while eliminating mistakes by introducing automated, standardized procedures.

Agile

Create new solutions, re-use programs for recurrent tasks and move the cobot to new processes if required.

Employee-support

Give your employees the freedom to focus on what they are best at and leave the rest to the cobot.

Specifications:

Product Name	UR12e Collaborative Industrial Robot
Manufacturer	Universal Robots
Payload	12.5 kg (27.5 lbs)
Reach	1300 mm (51.2 in)
Degrees of Freedom	6 rotating joints
Programming	12 inch touchscreen with PolyScope graphical user interface
Power Consumption (Maximum)	615 W
Power Consumption (Moderate Operating Settings)	350 W
Operating Temperature	0–50°C (32–122°F)
Safety Functions	21 configurable safety functions
Compliance	EN ISO 13849-1 (PLd Category 3), EN ISO 10218-1
Force Sensing	Tool flange torque sensor
Force Range	±100.0 N
Torque Range	±10.0 Nm
Force Precision	±5.0 N
Torque Precision	±0.2 Nm
Force Accuracy	±5.5 N
Torque Accuracy	±0.5 Nm
Maximum TCP Speed	4 m/s
Pose Repeatability	±0.05 mm (ISO 9283)
Base Axis Working Range	±360°
Base Axis Max Speed	±120°/s
Shoulder Axis Working Range	±360°
Shoulder Axis Max Speed	±120°/s
Elbow Axis Working Range	±360°
Elbow Axis Max Speed	±180°/s
Wrist 1 Working Range	±360°
Wrist 1 Max Speed	±180°/s
Wrist 2 Working Range	±360°
Wrist 2 Max Speed	±180°/s
Wrist 3 Working Range	±360°
Wrist 3 Max Speed	±180°/s
IP Classification	IP54
Noise Level	<65 dB(A)
Arm Mounting	Any orientation
Tool Flange Digital Input	2
Tool Flange Digital Output	2
Tool Flange Analog Input	2
Power Supply Voltage	12/24 V
Power Supply Current	2 A (Dual pin), 1 A (Single pin)
Footprint	Ø190 mm
Materials	Aluminum, plastic, steel
Tool Flange Standard	EN ISO-9409-1-50-4-M6
Connector Type	M8 8-pin female
Cable Length (Robot Arm)	6 m (236 in)
Robot Weight (Including Cable)	33.5 kg (73.9 lbs)
Humidity	≤90% RH (non-condensing)
Teach Pendant
IP Rating	IP54
Humidity	≤90% RH (non-condensing)
Display Resolution	1280 × 800 pixels
Material	Plastic
Size	300 × 231 × 50 mm
Weight	1.6 kg (including 1 m cable)
Cable Length	4.5 m
Control Box
IP Rating	IP44
Humidity	≤90% RH (non-condensing)
Digital Inputs	16
Digital Outputs	16
Analog Inputs	2
Analog Outputs	2
Quadrature Digital Inputs	4
I/O Power Supply	24V, 2A
Industrial Protocols	Modbus TCP, Ethernet/IP Adapter, PROFINET device, PROFIsafe, ROS/ROS2
Hardware Interfaces	Ethernet 1 Gb/s, USB 2.0, USB 3.0, Mini DisplayPort, Injection Moulding Machine Interface (SPI AN-146 & Euromap-67)
Power Source	100–240 VAC, 47–440 Hz
Control Box Size	460 × 449 × 254 mm
Control Box Weight	12 kg
Control Box Material	Powder coated steel
