Name: Universal Robots UR3e, Collaborative Robot
SKU: RBOT-003
Price: 72486.99 USD
Availability: InStock

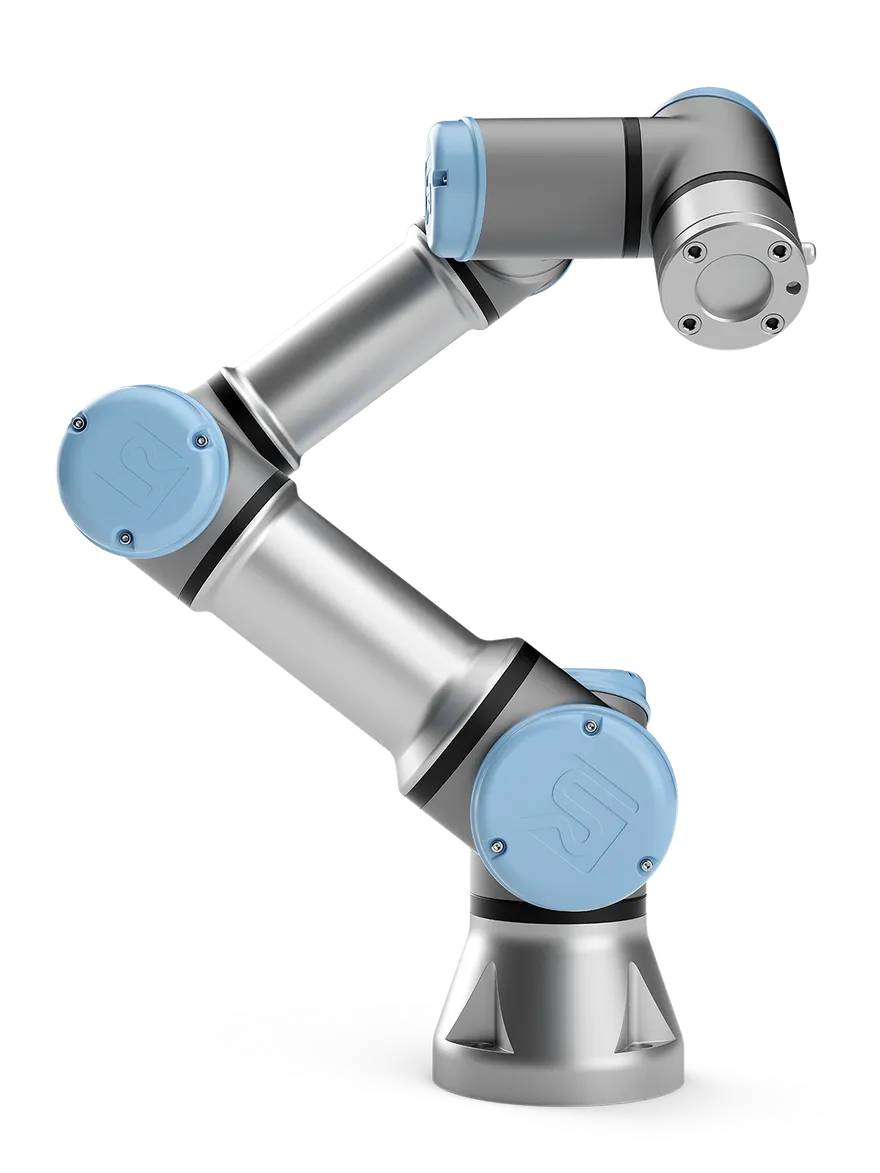

Universal Robots UR3e, Collaborative Robot

UK Free Shipping

Description
Documents
Reviews

Down to the smallest detail

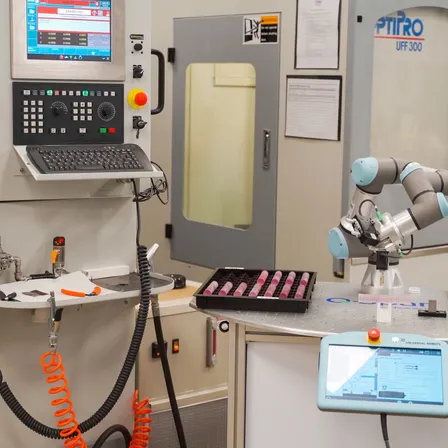

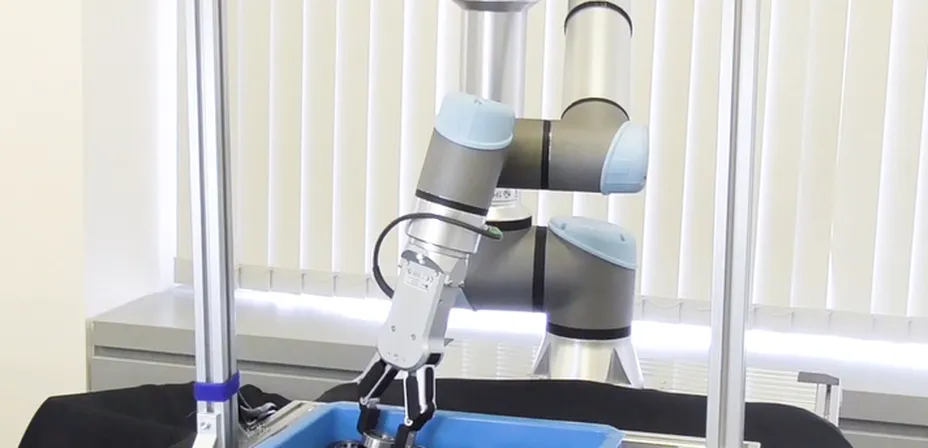

Due to its small size, the UR3e is the ideal definition of a collaborative, industrial robot. Designed to optimize efficiency in confined workspaces, the UR3e offers unmatched flexibility and precision. While the cobot can be mounted on a table working side-by-side with employees, it can also be integrated within a separate workstation for solutions including picking, assembling, and placing parts.

With its small footprint and lightweight design, the UR3e seamlessly integrates into any production environment, complementing human workers and maximizing productivity. This cobot is equipped with cutting-edge safety features, ensuring safe collaboration between humans and machines.

Enhance your operations, improve quality, and stay ahead of the competition with this compact automation solution.

True payload performance

Future-proof your facility with a cobot which enables you to grow with your tasks. When required to lift heavy objects over the maximum distance, do not limit yourself by the way that your end-effector is mounted. If the objects require a change of how they are being lifted, resulting a shift in the center of gravity, the UR3e will support you in this change.

Infinite rotation

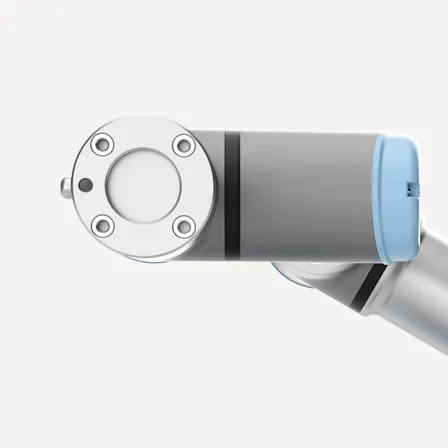

In order to support automating screw driving applications, the UR3e is equipped with an initiate rotating end joint at the tool flange. This feature also enables to directly attach polishing tools or others to the cobot, simplifying the programming and speed up installation setup.

Unlock the full potential of your cobot fleet

By integrating your robots with our comprehensive connectivity platform, you’ll benefit from enhanced productivity, minimized downtime, and efficient fleet management – all from the convenience of your office, wherever that might be.

Designed to improve your work

While our goal is to make automation available for anyone, anywhere, we also aim to support your journey in revolutionizing your business by enabling safe and collaborative human-robot interaction.

Fast deployment

The out-of-box experience for an untrained operator to unpack the cobot, mount it, and program the first simple task is typically less than an hour.

Space saving

Our cobot's small footprint opens opportunities to automate tasks in existing manufacturing setups where floorspace is often set and at a premium.

Power consumption

Automating tasks gives you the possibility to run tasks autonomously without constant monitoring of your employees. In addition, UR cobots use less electricity than traditional industrial robots.

Collaborative and safe

All UR cobots come with built-in safety features, including force-sensing technology and collision detection. These features allow our cobots to work alongside you without the need for safety barriers or cages, increasing productivity and promoting a safe working environment.

Specifications:

Product Name	UR3e Collaborative Industrial Robot
Manufacturer	Universal Robots
Payload	3 kg (6.6 lbs)
Reach	500 mm (19.7 in)
Degrees of Freedom	6 rotating joints
Programming	12 inch touchscreen with PolyScope graphical user interface
Power Consumption (Maximum)	300 W
Power Consumption (Moderate Operating Settings)	150 W
Operating Temperature	0–50°C (32–122°F)
Safety Functions	21 configurable safety functions
Compliance	EN ISO 13849-1 (PLd Category 3), EN ISO 10218-1
Force Sensing	Tool flange torque sensor
Force Range	±30.0 N
Torque Range	±10.0 Nm
Force Precision	±2.0 N
Torque Precision	±0.1 Nm
Force Accuracy	±3.5 N
Torque Accuracy	±0.1 Nm
Maximum TCP Speed	3 m/s
Pose Repeatability	±0.03 mm (ISO 9283)
Base Axis Working Range	±360°
Base Axis Max Speed	±180°/s
Shoulder Axis Working Range	±360°
Shoulder Axis Max Speed	±180°/s
Elbow Axis Working Range	±360°
Elbow Axis Max Speed	±180°/s
Wrist 1 Working Range	±360°
Wrist 1 Max Speed	±360°/s
Wrist 2 Working Range	±360°
Wrist 2 Max Speed	±360°/s
Wrist 3 Working Range	Infinite
Wrist 3 Max Speed	±360°/s
IP Classification	IP54
Noise Level	<60 dB(A)
Arm Mounting	Any orientation
Tool Flange Digital Input	2
Tool Flange Digital Output	2
Tool Flange Analog Input	2
Power Supply Voltage	12/24 V
Power Supply Current	600 mA
Footprint	Ø128 mm
Materials	Aluminum, plastic, steel
Tool Flange Standard	EN ISO-9409-1-50-4-M6
Connector Type	M8 8-pin female
Cable Length (Robot Arm)	6 m (236 in)
Robot Weight (Including Cable)	11.2 kg (17.7 lbs)
Humidity	≤90% RH (non-condensing)
Teach Pendant
IP Rating	IP54
Humidity	≤90% RH (non-condensing)
Display Resolution	1280 × 800 pixels
Material	Plastic
Size	300 × 231 × 50 mm
Weight	1.6 kg (including 1 m cable)
Cable Length	4.5 m
Control Box
IP Rating	IP44
Operating Temperature	0–50°C (32–122°F)
Humidity	≤90% RH (non-condensing)
Digital Inputs	16
Digital Outputs	16
Analog Inputs	2
Analog Outputs	2
Quadrature Digital Inputs	4
I/O Power Supply	24V, 2A
Industrial Protocols	Modbus TCP, Ethernet/IP Adapter, PROFINET device, PROFIsafe, ROS/ROS2
Hardware Interfaces	Ethernet 1 Gb/s, USB 2.0, USB 3.0, Mini DisplayPort, Injection Moulding Machine Interface (SPI AN-146 & Euromap-67)
Power Source	100–240 VAC, 47–440 Hz
Size	460 × 449 × 254 mm
Weight	12 kg
Material	Powder coated steel
