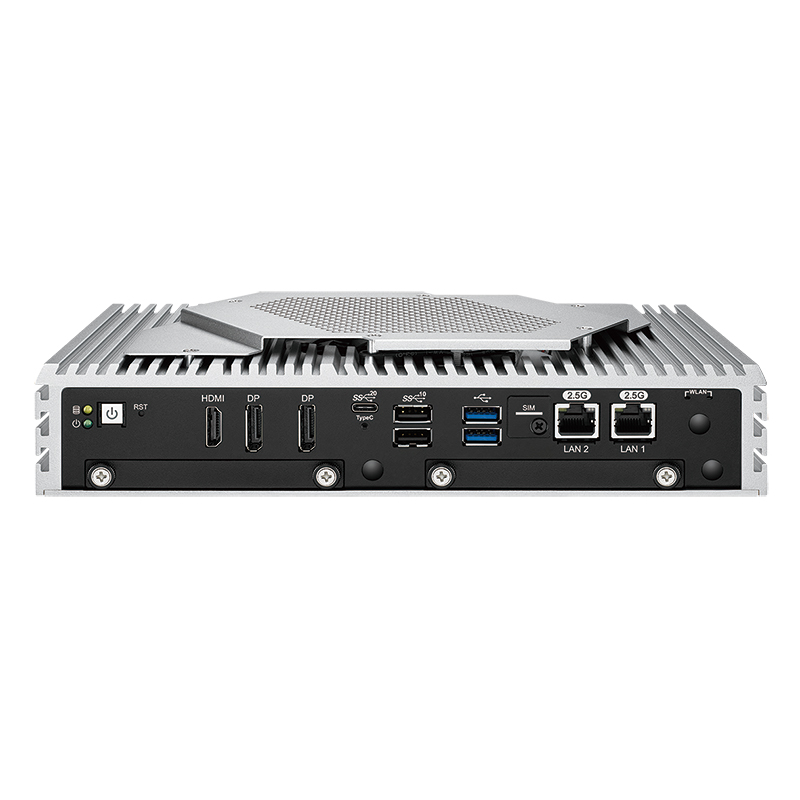

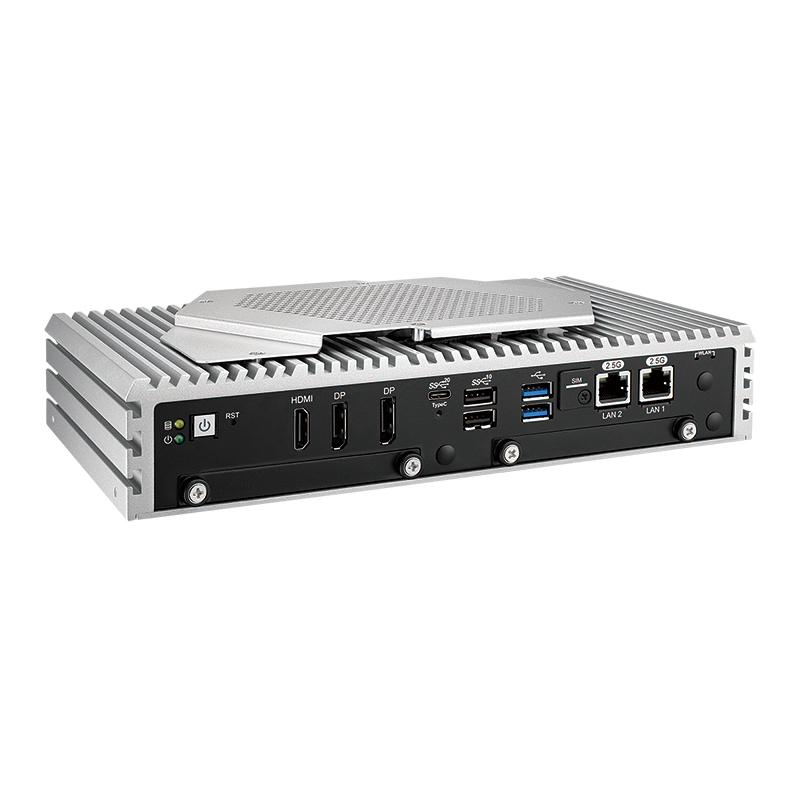

Vecow ECS-4700F-PoER, Intel Core i7-1370PE, 2.5G LAN Marine-grade Rugged PC

When a marine computer has to run demanding software while also connecting to multiple onboard networks, PoE devices, serial equipment, displays, and storage, a compact but rugged platform is needed. The Vecow ECS-4700F-PoER combines high-performance processing with multiple network interfaces, PoE+, industrial I/O, redundant power, and marine-oriented environmental capabilities in one system.

Vecow ECS-4700F-PoER, Intel Core i7-1370PE, 2.5G LAN Marine-grade Rugged PC

The Vecow ECS-4700F-PoER is a marine-grade rugged PC powered by an onboard 14-core 13th Gen Intel Core i7-1370PE processor based on the Raptor Lake-P platform. With Intel Iris Xe graphics, up to 96GB of DDR5 memory, and support for Windows 11, Windows 10, and Linux, it provides a capable computing platform for onboard monitoring, control, data processing, visualization, and other demanding marine computing workloads.

For network-intensive applications, the system provides two Intel I226 2.5GigE LAN ports with TSN support. It also includes four Gigabit PoE+ ports using Intel I350 controllers. These PoE+ interfaces support IEEE 802.3at and provide up to 25.5W per port, allowing compatible network equipment to receive power and data through Ethernet. This makes the system useful where several connected devices need to be integrated without adding separate power connections for each supported PoE device.

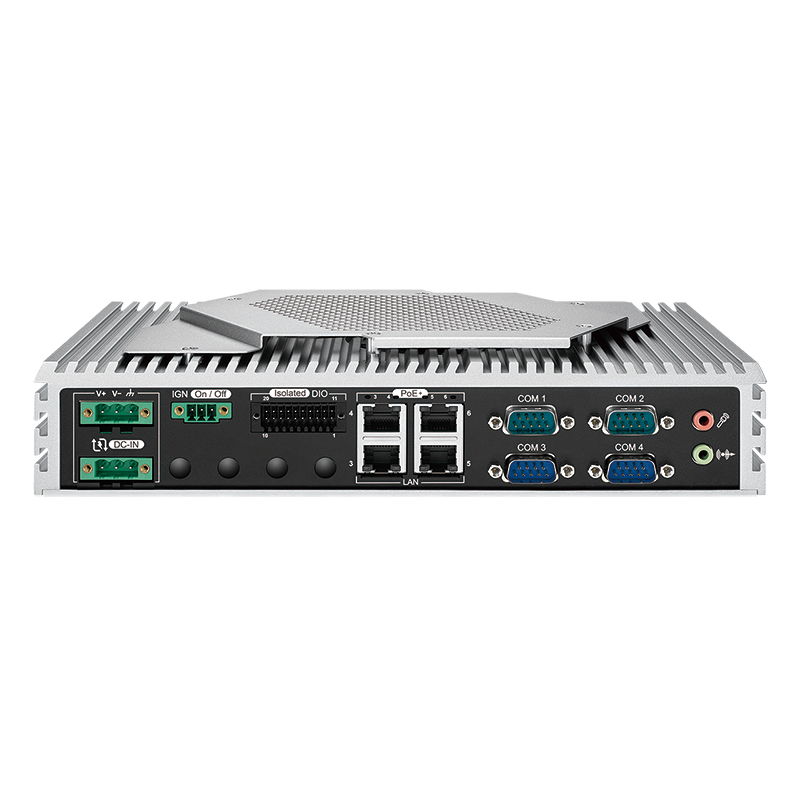

The ECS-4700F-PoER also provides extensive equipment connectivity through four RS-232/422/485 COM ports, 16 isolated digital I/O with 8 digital inputs and 8 digital outputs, USB interfaces, and multiple display outputs. Two DisplayPort 1.4a interfaces and HDMI 2.0 support resolutions up to 3840 x 2160 at 60Hz, while the USB Type-C port can also provide DisplayPort output. These interfaces allow the computer to connect with displays, control equipment, sensors, and other onboard systems.

Storage and expansion are designed for flexible marine system integration. The computer provides two SATA III 6Gbps interfaces with software RAID 0 and 1 support, two front-access 2.5" SSD/HDD trays, and an M.2 Key M PCIe x4 socket. It also includes M.2 Key B and Key E sockets for additional expansion, along with an external Nano SIM socket. TPM 2.0, a watchdog timer, and hardware monitoring provide additional system management and protection functions.

For installation on vessels and other demanding environments, the ECS-4700F-PoER supports redundant DC 9V to 50V power inputs and 16-mode software ignition control. Its wallmount design can be supplemented with optional VESA or DIN rail mounting. The system operates from -25°C to 75°C with airflow, supports a -40°C to 85°C storage temperature range, and includes vibration and shock specifications along with CE, FCC, EN50155, EN50121-3-2, and EN60945 EMC compliance.

Key features

• 14-core 13th Gen Intel® Core™ i7-1370PE Processor
• 2 x Intel® I226 2.5GigE LAN supports TSN
• 4 x GigE IEEE 802.3at PoE+ ports by Intel® I350
• 16 Isolated DIO: 8 DI, 8 DO
• 2 SATA III with software RAID 0, 1 and M.2 PCIe x4 storage
• 4 COM RS-232/422/485 interfaces
• Redundant DC 9V to 50V power inputs with software ignition control
• Marine-grade rugged design with -25°C to 75°C operating temperature
