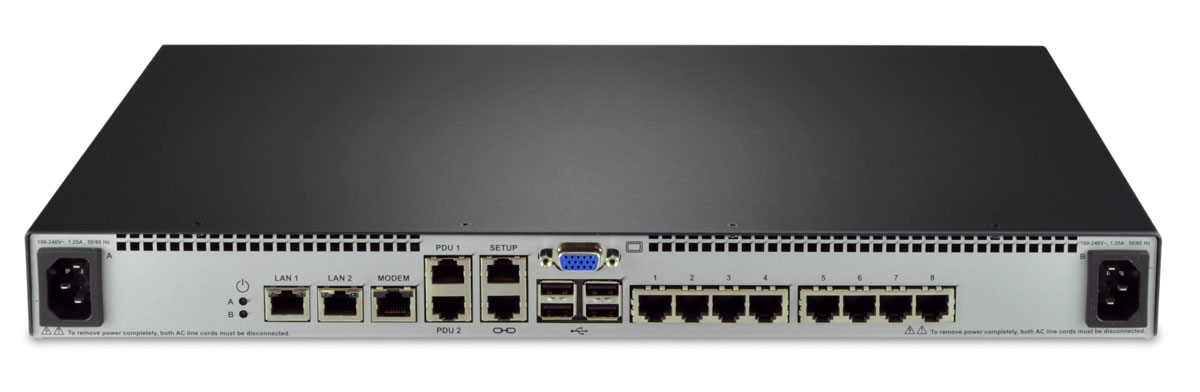

Vertiv Avocent MergePoint Unity 8 Port KVM Over IP Switch
The Vertiv Avocent MergePoint Unity KVM over IP and Serial Console Switch combines analog and digital technology for flexible, centralized control of data center servers and virtual media. The IP-based system facilitates the operation, activation and maintenance of remote branch offices where trained operators may not be available and delivers flexible management of connected devices and secure remote access from anywhere, any time.
Key Benefits
• Significant reduction of cable volume.
• Remote access to KVM, USB, and serial connections.
• Serial adaptors support SSH connections and Cisco pinout to make connections to Cisco equipment quick and easy.
• Virtual media enables remote USB connections and support for smartcard/CAC readers.
• Local and remote browser interface for easy setup and use.
Specifications
| Operating Voltage |
100 - 240 VAC |
| Power Frequency |
50-60 Hz auto-sensing |
| Input Power |
40W max |
| Power Consumption |
13W |
| BTU/hr |
43 BTU/hr |
| Supported Computers |
PS/2, Sun, USB and serial |
| Supported Video |
640x480 @ 60 Hz; 800x600 @ 75 Hz; 960x700 @ 75 Hz; 1024x768 @ 75 Hz; 1280x1024 @ 75 Hz; 1600x1200 @ 75 Hz using the MPUIQ-VMC module |
| Supported Peripherals |
USB keyboard and mouse; VGA video |
| Number of Network Connections |
2 |
| Type of Network Connections |
10/100/1000 Ethernet |
| Serial Port Type |
1 configuration port, 2 power control ports |
| Serial Port Connector |
RS-232, 8-pin modular |
| Operating Temperature |
32° to 22°F (0° to 50°C) |
| Storage Temperature |
-4° to 158°F (-20° to 70°C) |
| Humidity |
Operating: 20% to 80% relative humidity (non-condensing)
Non-operating: 5% to 95% relative humidity, 38.7°C maximum wet bulb temperature |
