Imagine a data center that never loses power, even when the grid flickers. The Vertiv NetSure 5100 582137200 Integrated Single Phase DC Power System is built to keep your equipment running without interruption. It converts single-phase AC into reliable -48 VDC, delivering up to 7.2 kW of clean power. If you have ever worried about outages, equipment damage, or costly downtime, this system solves those problems with built-in redundancy and smart monitoring.

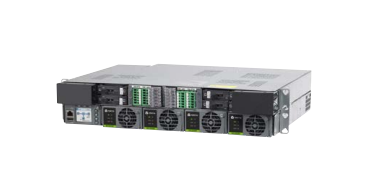

Vertiv NetSure 5100 582137200 Integrated Single Phase DC Power System
Data centers, telecom rooms, and edge sites need power that is both stable and efficient. Unstable power can corrupt data, shorten hardware life, and cause service interruptions that hurt your reputation. The NetSure 5100 removes that risk by providing a single-phase DC solution that fits standard rack spaces, offers front and rear access, and includes remote monitoring so you can see performance at a glance. With a peak efficiency of 96 %, you also save on energy costs while protecting critical loads.
Key Features
- Power capacity: 2-7.2 kW.
- Current capacity: 40-150 A.
- Nominal output: -48 VDC, operational range -42 to -58 VDC.
- Input voltage: 120-240 VAC single phase, operational 85-300 VAC.
- Integrated system with front and rear access.
- Remote NCU monitoring via web, TCP/IP, and SNMP.
- Peak rectifier efficiency of 96 %.
- UL Recognized safety compliance.
- EMC compliance with FCC Part 15 and EN55022.
- Operating temperature from -40 °C to +65 °C.
- Optional battery trays and relay racks for expansion.
Specifications
| Power Capacity |
2-7.2kW |
| Current Capacity |
40-150A |
| Output Voltage, Nominal |
-48VDC |
| Input Voltage, Nominal |
Single phase: 120VAC, 208VAC to 240VAC |
| System Type |
Integrated system |
| Input |
|
| Input Voltage, Nominal |
Single phase: 120VAC, 208VAC to 240VAC |
| Input Voltage, Operational |
Rectifier: (Single Phase) 85 VAC to 300 VAC |
| Input Connections |
Molex for AC cords or hardwiring |
| Equipment Dimensions (H x W x D) |
up to 3U x (19" or 23") x 14.7" |
| Access |
Front and Rear access |
| Output |
|
| Output Voltage, Nominal |
-48VDC |
| Output Voltage, Operational |
Rectifier: -42 VDC to -58 VDC |
| Output Capacity |
Up to 150 amps at -48 VDC plus redundancy |
| Peak Efficiency |
Rectifier: 96% |
| Load Circuit Breakers / Fuses |
1-150 A E/M or E bullet nose breakers or 1-15A GMT fuses |
| Physical characteristics |
|
| Battery Circuit Breakers / Fuses |
1A to 150 A E/M or E breakers |
| Options |
Optional Battery Trays, SM-Temp, BAU, Relay racks |
| Environmental & standard compliance |
|
| Control and Monitoring |
NCU with remote access via web browsers, TCP/IP & SNMP as standard |
| Operating Temperature |
-40 °C to +65 °C ( 40 °F to +149 °F) |
| Safety Compliance |
UL Recognized (cUL) |
| EMC Compliance |
Conforms to FCC rules Part 15, Subpart B, Class B; EN55022 Class B, radiated and conducted; GR-1089 Issue 4 |
