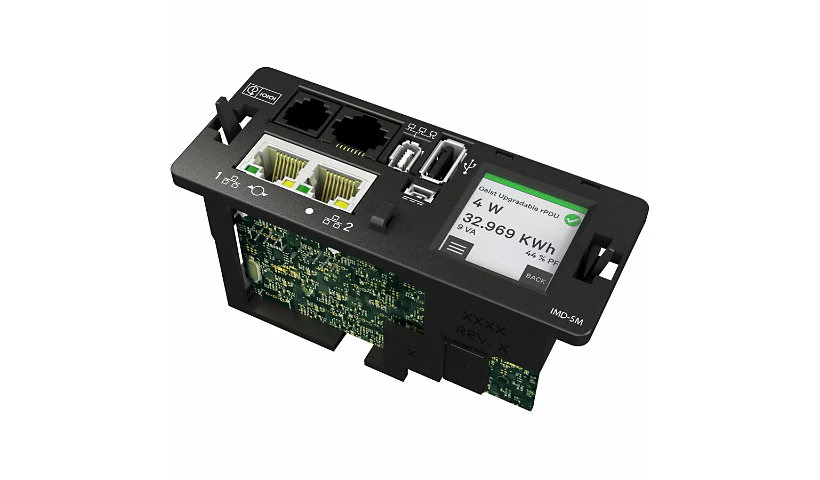

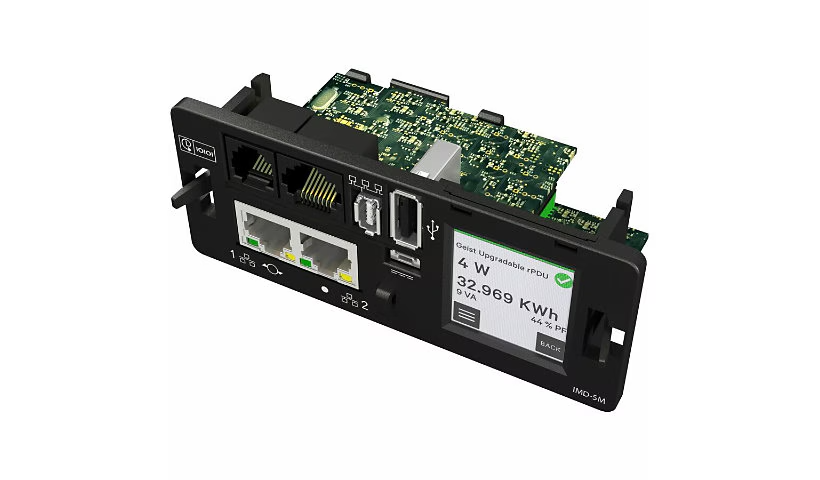

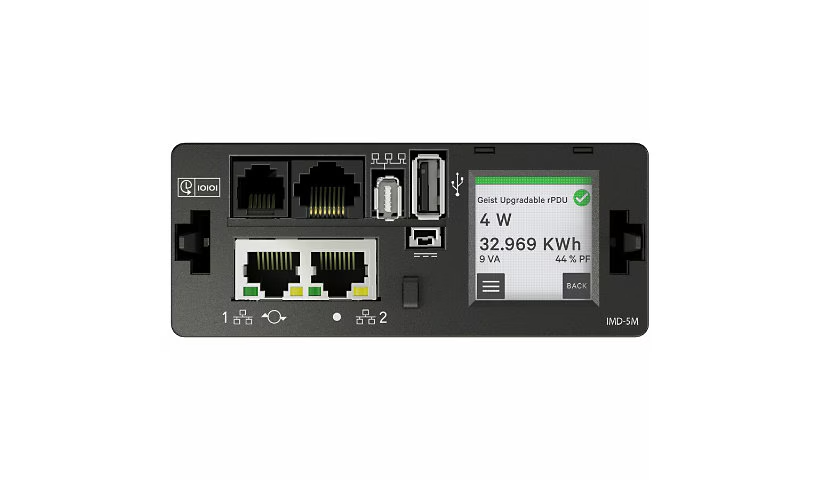

Vertiv PowerIT IMD-5M Interchangeable Monitoring Device
Next Generation Intelligence card supporting input and output level power monitoring, outlet switching, and circuit/breaker current monitoring where applicable, as determined by the base rPDU model. It enables serial communication via an RS232 port and features Secure Boot utilizing a hardware trust anchor. Redundant IMD power sharing is supported via the onboard port. Environmental monitoring is available through optional remote sensors, along with daisy-chain Ethernet connectivity. The card also features a local touchscreen-equipped LCD display with the ability to locally provision the rPDU.
Monitoring
Enables Input and Output level power monitoring, Outlet switching, and Circuit / Breaker current monitoring where applicable as determined by base rPDU model. Environmental monitoring via optional remote sensors. Daisy chain Ethernet connectivity.
Remote Power Management
Individual Outlet Switching with Optional User Defined Time Delays and Sequential Power-up where applicable as determined by base rPDU model
Specifications
| Input Monitoring |
Total Unit Monitoring (kWh, W, VA, PF) |
| Phase Monitoring |
Phase (A, B, C) Monitoring (kWh, W, VA, PF, V, A) where applicable as determined by base rPDU model |
| Power Measurements |
Compliant with ANSI C12.1 and IEC 62053-21 at 1% Accuracy Class Requirements |
| Circuit Monitoring |
Circuit / Breaker Monitoring (A) where applicable as determined by base rPDU model |
| Circuit / Breaker Current Measurements |
Independently Tested and Verified at 1% Accuracy |
| Outlet Monitoring |
Outlet Monitoring (kWh, W, VA, PF, V, A) where applicable as determined by base rPDU model |
| Display |
High-visibility touchscreen LCD Display |
| Display Orientation |
Internal Orientation sensor adjusts display for Vertical or Horizontal mounting |
| Network Connection |
Dual 10 / 100 / 1000Mbps Ethernet |
| Protocols Supported |
DHCP, HTTP, HTTPS, Redfish (FW 7.0.2 and later), IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1 / v2c / v3), Syslog, TACACS+ |
| Data Access Formats |
CSV datalog, JSON API, JSON datalog |
| USB Support |
Yes |
| IP Reset Button |
Yes |
| Hard Reboot Button |
Yes |
| Serial Connection |
RS232 via RJ45 |
| Remote Sensor RJ Connection Jacks |
1 (Supports up to 16 Sensors) |
| Product Warranty |
5-year limited warranty |
| Toolless IMD Removal |
Yes |
| Secure Boot |
Yes, utilizes a hardware based trust anchor |
| Certification/Agency Approvals |
RoHS Compliant |
