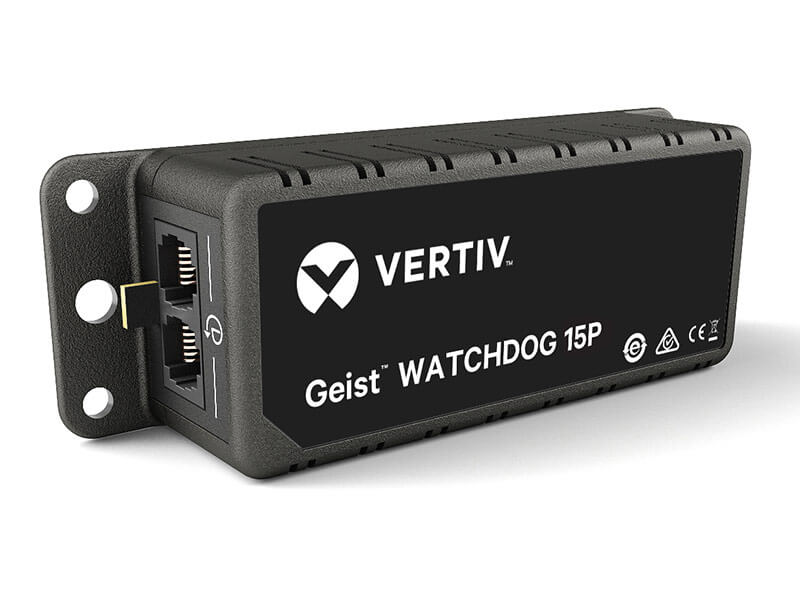

Vertiv Watchdog 15 Monitoring Sensor
The Watchdog 15 is a self-contained environment monitor with an on-board temperature/humidity sensor. Equipped with two digital sensor ports, the Watchdog 15 can support up to four external sensors using a splitter.
Features
• Real Time Sensor Data Feeds
• Sensor Data Logging & Graphing
• Data Logs
• SNMP (v1, v2c, v3)
• Email & Email-to-SMS Alerts
• Alarm Escalations
• Alarm Repeat and Delay
• Alarm Valid Hours
• Office 365 Email Support
• Display in Metric or Imperial
• Multiple Languages
• Access Account Levels
• Encryption via TLS/SSL
• Configuration Back-up
• Interface with IP Surveillance Cameras
• Remote Firmware Updates
Specifications
| On-Board Sensors |
|
| Range |
-20 to 85°C |
| Accuracy (typical) |
± 0.3°C |
| Relative Humidity |
|
| Range |
0 to 100% RH |
| Accuracy (typical) |
± 2.0% RH |
| Dewpoint |
Calculated value, based on temperature & humidity |
| External Sensors |
|
| Digital Sensor Ports |
2 |
| Max Digital Sensor Capacity |
4 |
| Hardware Features |
|
| Ethernet |
10/100 Mbps |
| Power |
|
| Input |
6 - 12 VDC (250mA typ., 350mA max.) |
| DC Power Input Plug |
2.1mm DC barrel, center-positive |
| Power Supply Options |
North American, British, Universal, None |
| Power Over Ethernet |
IEEE802.3af (Watchdog 15-P only) |
| “Reset” Button |
Restore all to factory defaults |
| Physical |
|
| Dimensions (WxHxD) |
5.22" (13.26 cm) x 1.72" (4.37 cm) x 1.29" (3.27 cm) |
