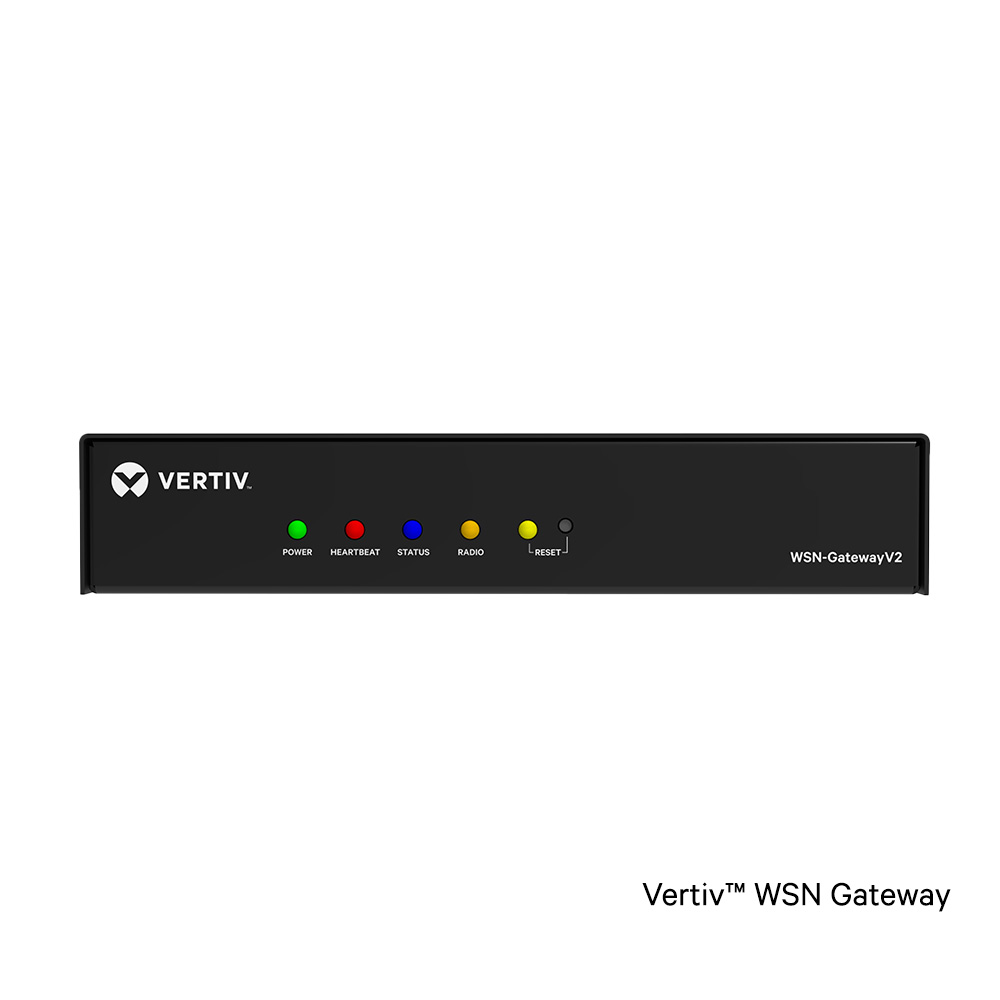

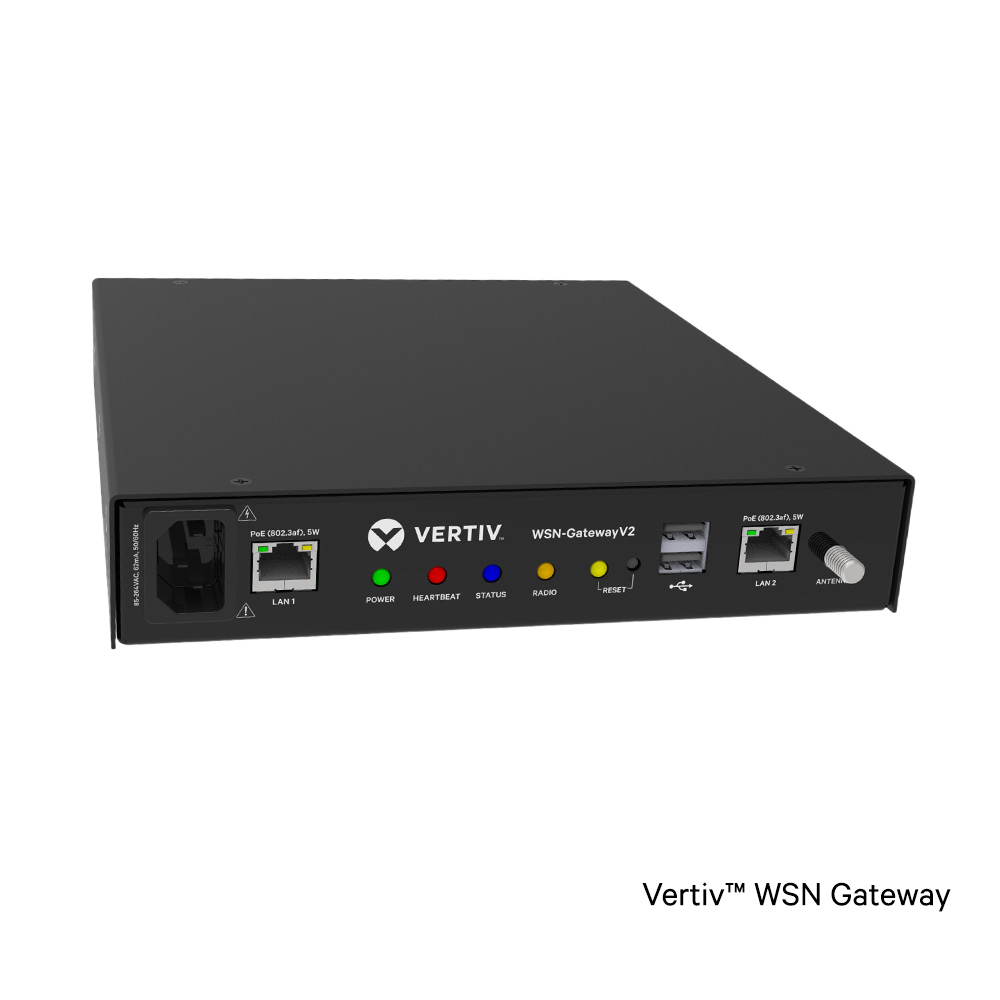

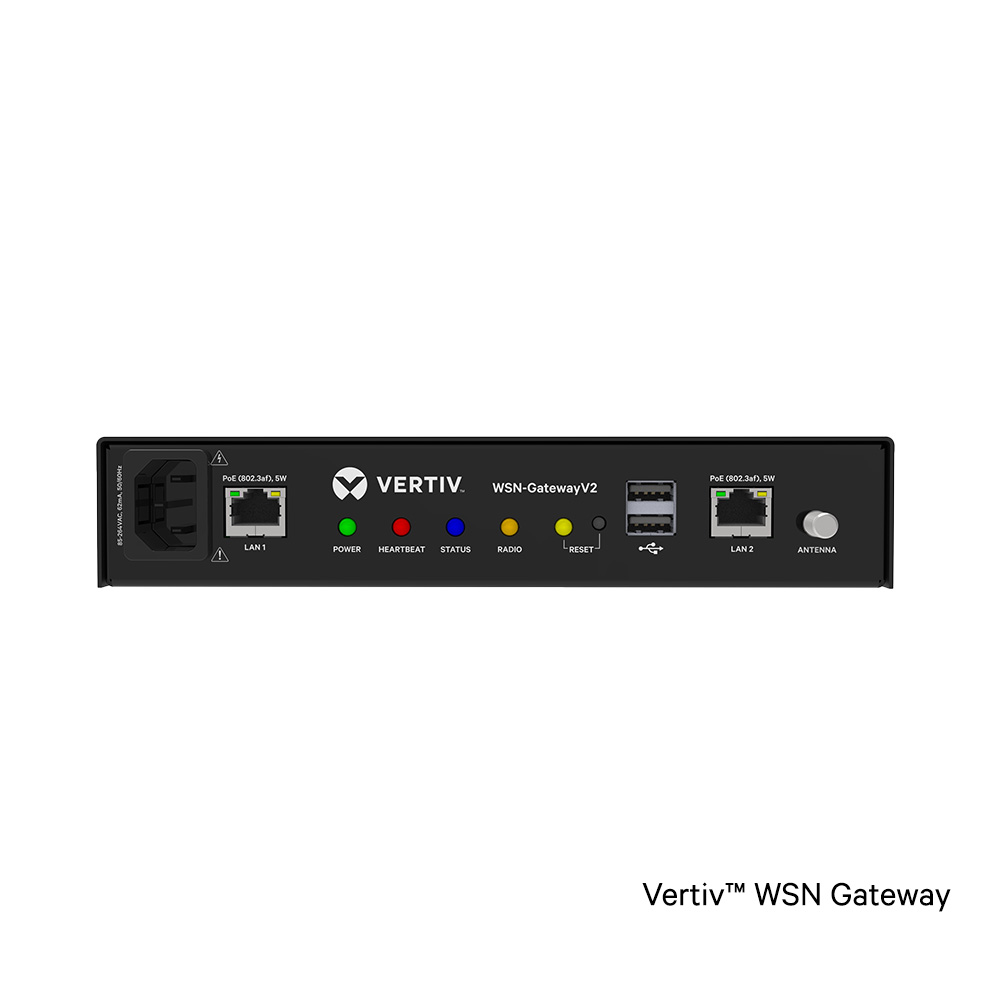

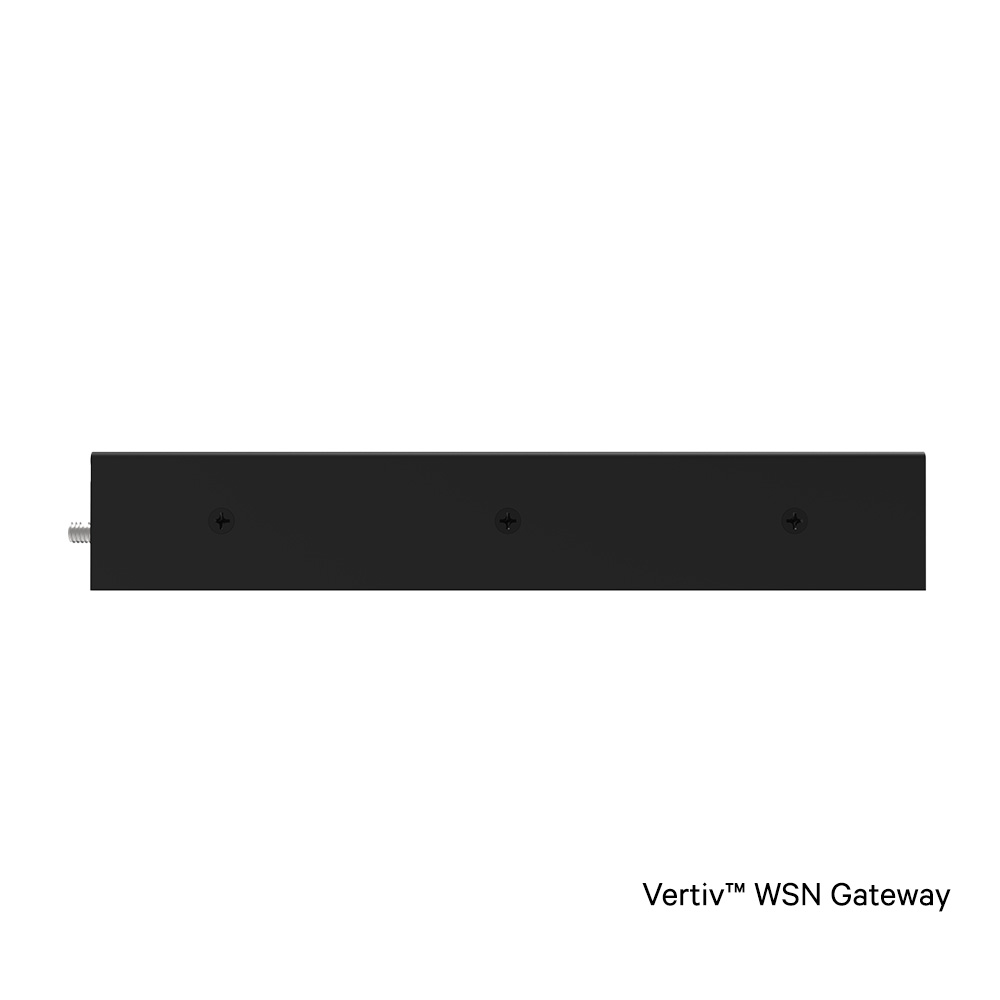

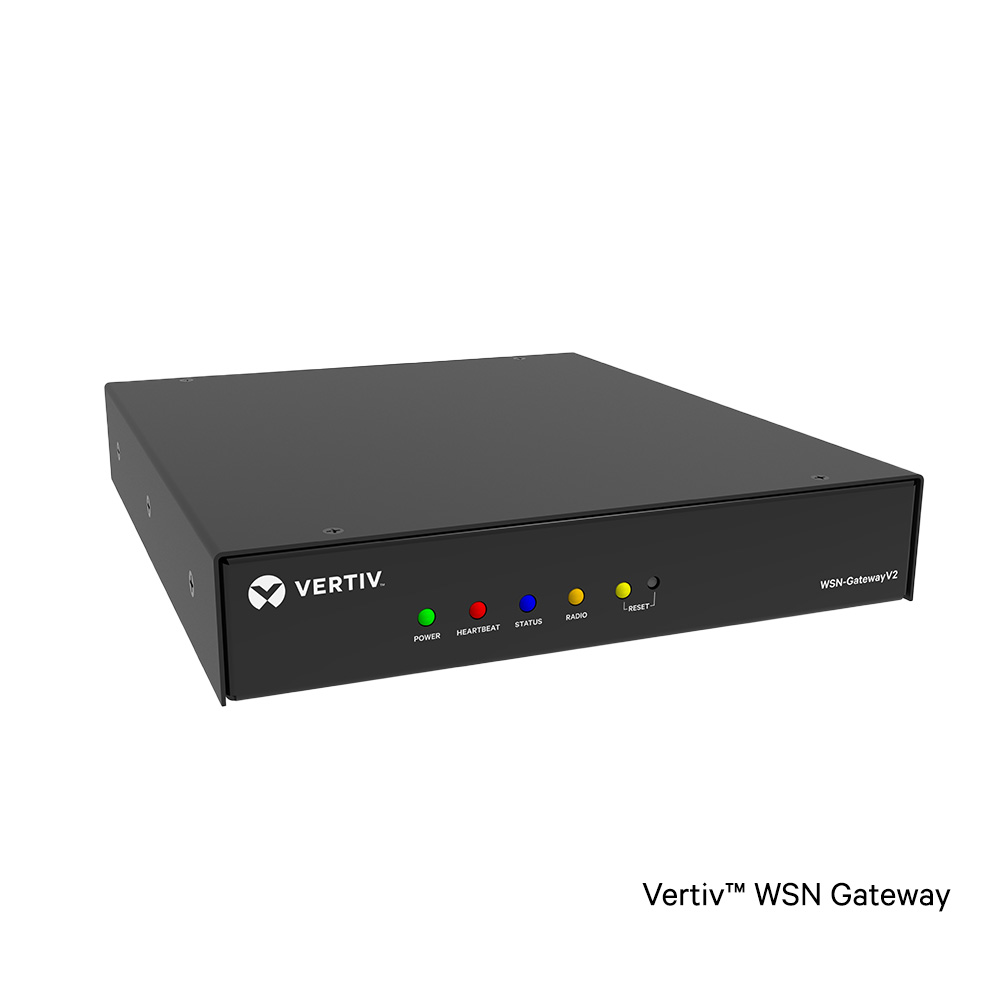

Vertiv™ WSN Gateway – Centralized Wireless Network Gateway
The Vertiv™ WSN Gateway serves as the central hub of the Vertiv™ Wireless Sensor Network, securely collecting data from wireless sensors and delivering it to monitoring systems through a unified web interface. It provides real‑time environmental visibility across data centers and critical facilities, supports sensor auto‑discovery, and integrates via SNMP or custom APIs. Together, these capabilities reduce installation complexity and enable scalable, efficient monitoring through a single interface.
Key Benefits
- FASTER, LOWER-COST DEPLOYMENT: Wireless reduces installation labor and wiring, with one gateway supporting hundreds of sensors.
- SCALABLE LONG-RANGE MONITORING: The WSN scales from small rooms to large sites, delivering long-range communication and extended battery life.
- LAYERED SECURITY PROTECTIONS: Proprietary device key validation, encrypted data, and controlled joining help prevent unauthorized network access.
- CENTRALIZED SYSTEM VISIBILITY: Environmental data is managed in one interface and integrates via SNMP or Modbus TCP with Vertiv and 3rd‑party monitoring systems.
- SIMPLIFIED SYSTEM MANAGEMENT: Fast firmware updates and device configuration simplify ongoing system management.
Specifications
| Operating environment |
Indoor; 0°C → 60°C, non-condensing |
| Web user interface |
Yes |
| SNMP |
Yes |
| Notifications |
Refreshing data/notifications on Web UI |
| Configuration port |
via Web UI/Ethernet |
| Environmental sensors |
Receives Data from WSN-FLEX |
| Direct integration |
BMS via SNMP, Vertiv™ Liebert® iCOM™-S via API |
| Inputs |
via Ethernet / WSN-FLEX Sensors |
| Networking |
Dual 10/100/1000 base-TX RJ45 CAT5/6 Ethernet |
| Height |
8.5 in / 50.2 mm |
| Width |
9.6 in / 89.7 mm |
| Depth |
1.6 in / 28.9 mm |
