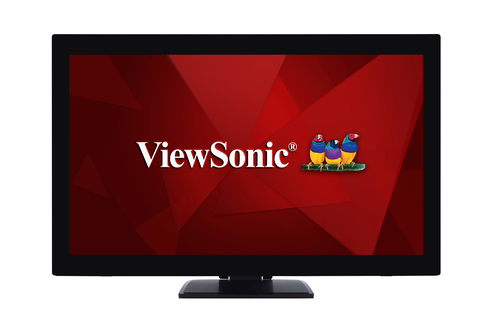

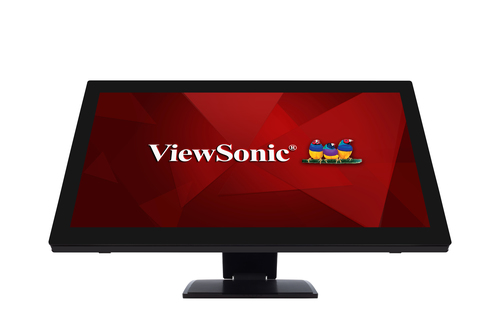

Upgrade your workspace with the Viewsonic TD2760 27" Full HD LED Monitor, offering 1920 x 1080 resolution for clear and vibrant visuals. Its sleek design, wide viewing angles, and responsive performance make it ideal for office work, study, and multimedia tasks.
The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.

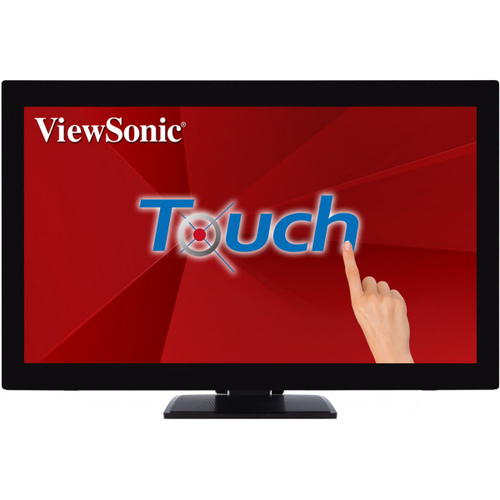

10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

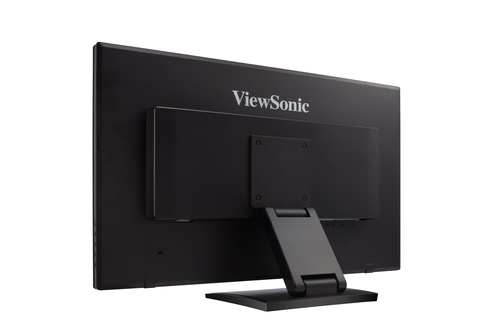

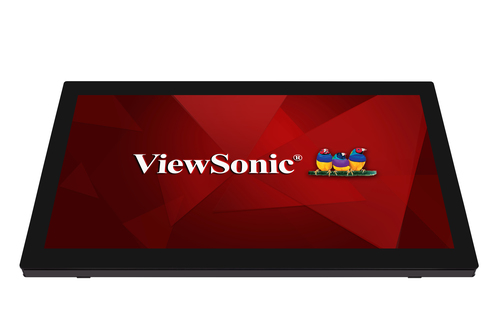

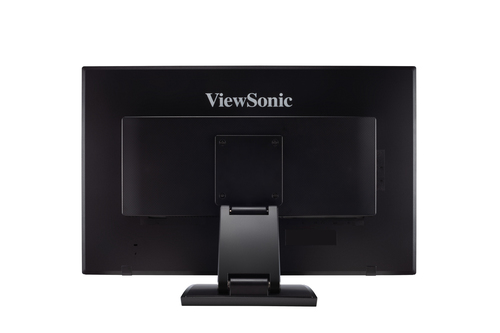

ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.

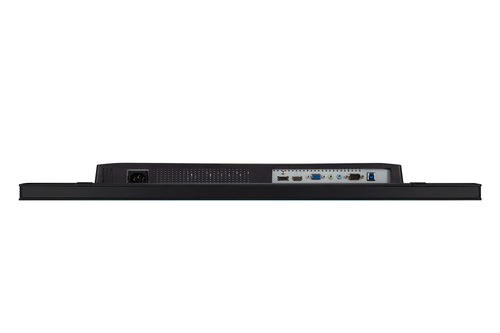

VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.
Specifications
| Display |
| Separate H/V sync |
Yes |
| Surface hardness |
6H |
| Display diagonal (metric) |
68.58 cm |
| Viewable size, vertical |
33.6 cm |
| Viewable size, horizontal |
59.8 cm |
| Vertical scan range |
50 - 76 Hz |
| Horizontal scan range |
15 - 90 kHz |
| Pixel pitch |
0.311 x 0.311 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
50000000:1 |
| Contrast ratio (typical) |
3000:1 |
| Aspect ratio |
16:9 |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Response time |
6 ms |
| Display brightness |
300 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Multi-user |
| Backlight type |
LED |
| LED backlight |
Yes |
| Panel type |
VA |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
68.6 cm (27") |
| Performance |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in microphone |
No |
| Built-in camera |
No |
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Glass thickness |
1.88 mm |
| Product colour |
Black |
| Ports & interfaces |
| RS-232 ports |
1 |
| HDCP |
Yes |
| Audio output |
1 |
| Audio input |
1 |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Type-A downstream ports quantity |
2 |
| Number of USB Type-B upstream ports quantity |
1 |
| Number of upstream ports |
1 |
| USB upstream port type |
USB Type-B |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
| Number of OSD languages |
14 |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-4 - 90° |
| Tilt adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
384384 |
| Power supply type |
AC |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (typical) |
26 W |
| Energy consumption (SDR) per 1000 hours |
19 kWh |
| Energy efficiency class (SDR) |
F |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight (without stand) |
5.5 kg |
| Height (without stand) |
410 mm |
| Depth (without stand) |
58 mm |
| Width (without stand) |
660 mm |
| Weight (with stand) |
7.9 kg |
| Height (with stand) |
443 mm |
| Depth (with stand) |
239 mm |
| Width (with stand) |
660 mm |
| Packaging data |
| Package weight |
10.2 kg |
| Package height |
525 mm |
| Package depth |
204 mm |
| Package width |
753 mm |
| Packaging content |
| Quick start guide |
Yes |
| Other features |
| Certification |
MX-CoC, Mexico Energy, CE, CE EMC, CB |
| Mean time between failures (MTBF) |
30000 h |
| Accessories included |
Power Cable, VGA Cable, HDMI Cable, USB Cable, Audio Cable |
| Connection to PC |
Yes |
| Package weight |
10.2 kg |
