V.SOL HG325AX15T XPON Dual Mode, Triple-play WiFi 6 ONT with VoIP
V.SOL HG325AX15T is an XPON dual-mode Optical Network Terminal designed to deliver triple-play services through a combination of fiber broadband, WiFi 6, voice, and CATV connectivity. It supports EPON and GPON access technologies and provides multiple interfaces for residential broadband deployments.

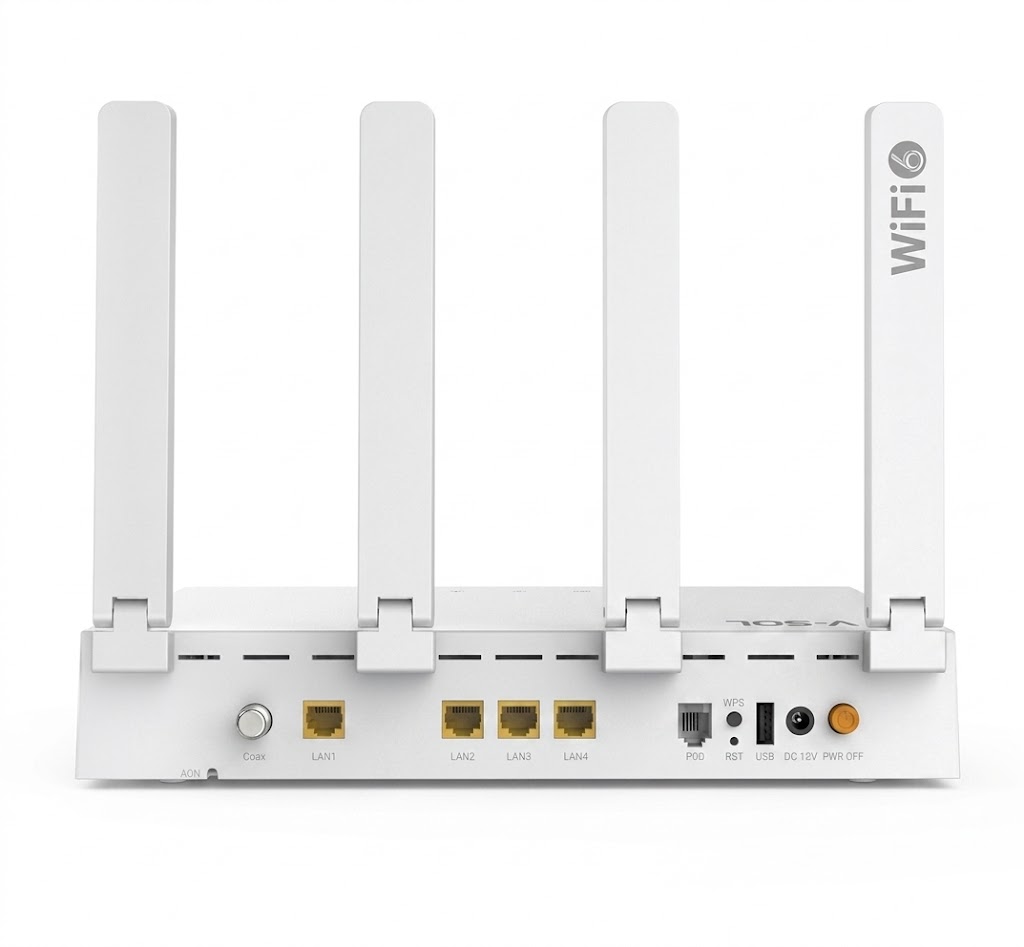

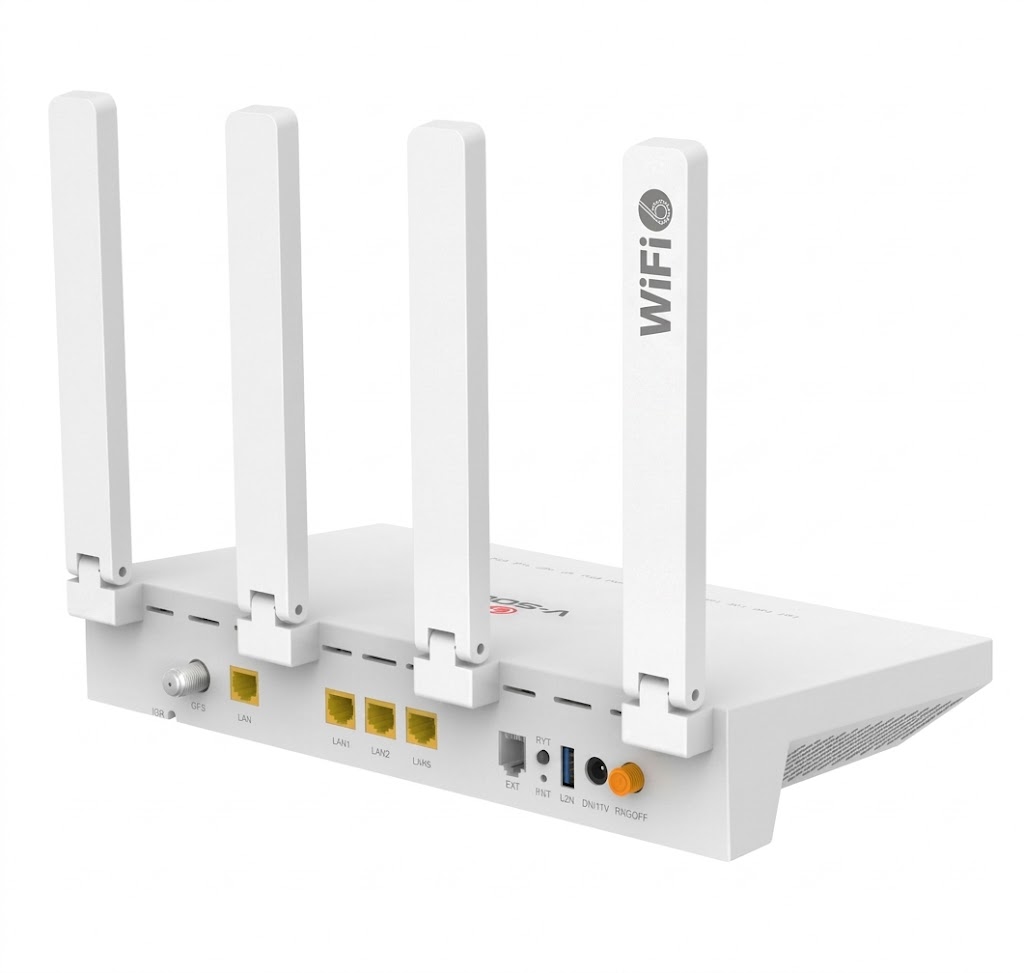

The ONT features 1XPON, 4 × GE Ethernet ports, 1 × POTS RJ11 port, 1 × USB 3.0 interface, CATV, and WiFi 6. Its 4 × 5dBi external antennas provide wireless connectivity, while the Ethernet interfaces support flexible wired network connections for connected devices.
The PON interface supports EPON PX20+ and GPON Class B+ through an SC/APC single-mode connector, with a transmission distance of up to 20KM. Dual-mode XPON connectivity allows the device to operate across compatible EPON and GPON access networks for flexible fiber broadband deployment.
The HG325AX15T is designed for triple-play environments requiring broadband, voice, and video services from one ONT. Its POTS interface provides voice connectivity, while the CATV interface supports optical receiving at 1550±10nm and an RF frequency range of 47–1000MHz for compatible CATV applications.
With its integrated WiFi 6, Gigabit Ethernet, USB 3.0, POTS, and CATV interfaces, the V.SOL HG325AX15T provides a versatile customer-premises access platform. Its compact enclosure, ≤18W power supply requirement, and operating temperature range of −10°C to +55°C support practical deployment in residential network environments.
Key Features
-
XPON dual-mode EPON and GPON ONT
-
WiFi 6 wireless connectivity
-
4 × GE RJ45 Ethernet ports
-
1 × POTS RJ11 voice interface
-
1 × USB 3.0 interface
-
Integrated CATV interface
-
Up to 20KM PON transmission distance
-
4 × 5dBi external antennas
Specifications:
|
Hardware Parameter
|
|
Dimension
|
260.4mm×157.4mm×45.8mm(L×W×H)
|
|
Net weight
|
0.45Kg
|
|
Operating condition
|
Operating temp: -10 ~ +55°C
Operating humidity:5 ~ 95% (non-condensed)
|
|
Storing condition
|
Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95% (non-condensed)
|
|
Power adapter
|
DC 12V, 1.5A, external AC-DC power adaptor
|
|
Power supply
|
≤18W
|
|
Interface
|
1XPON+1GE(WAN/LAN1)+3GE(LAN)+1POTS+1USB3.0+CATV+Wi-Fi 6
|
|

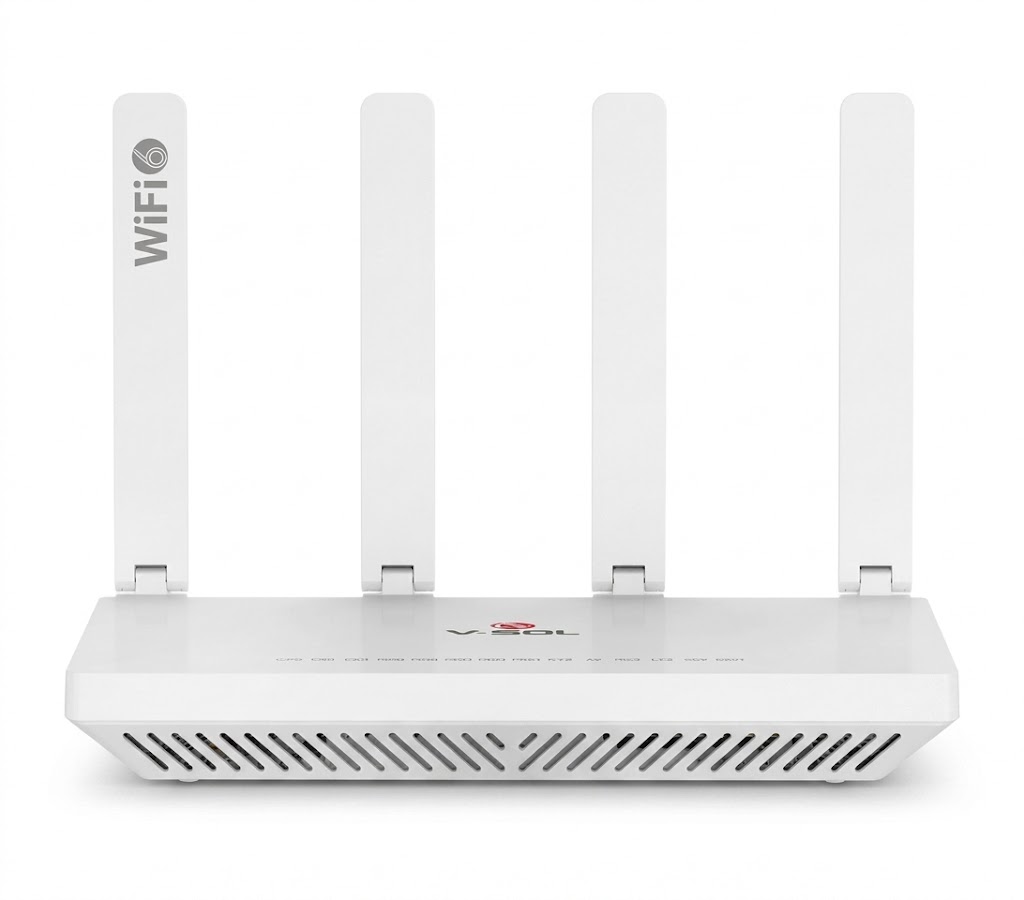

Indicators
|
PWR ,PON ,LOS ,WAN ,LAN1~4 ,2.4G ,5G ,
WPS ,FXS ,USB ,CATV
|
|
|
|
|
○ Interface parameter
|
|
PON Interface
|
l 1XPON port(EPON PX20+ and GPON Class B+)

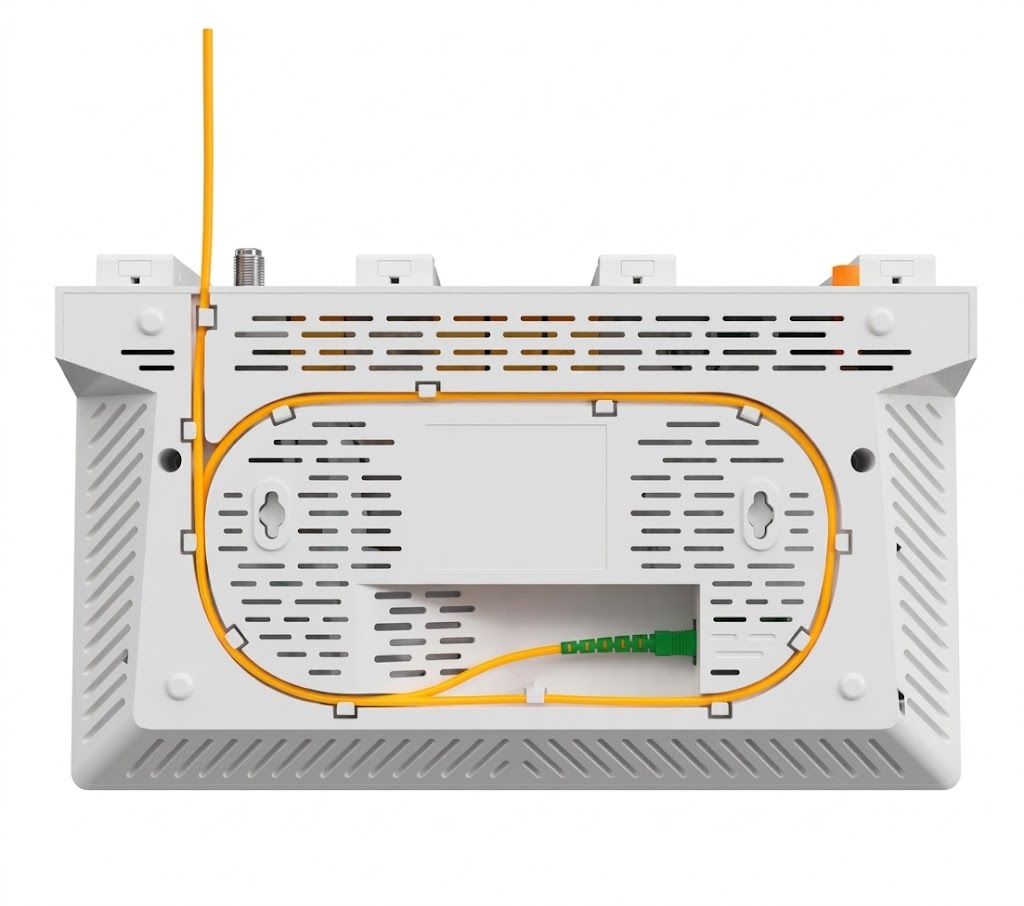

l SC single mode, SC/APC connector
l TX optical power: 0～+4dBm
l RX sensitivity: -27dBm
l Overload optical power: -3dBm(EPON) or -8dBm(GPON)
l Transmission distance: 20KM
l Wavelength: TX 1310nm, RX1490nm
|
|
User
interface
|
l 4×GE, Auto-negotiation,RJ45 ports
l 1×POTS RJ11 Connector
|
|
Antenna
|
4 ×5dBi external antennas
|
|
CATV interface
|
l Optical receiving wavelength: 1550±10nm
l Optical input range: +2～-18dBm
l Optical reflection loss: ≥40dB
l RF frequency range: 47～1000MHz
l RF output impedance: 75Ω
l RF output level and AGC range:
≥81±2dBuv@+1～-10dBm
≥79±2dBuv@ 0～-11dBm
≥77±2dBuv@-1～-12dBm
≥75±2dBuv@-2～-13dBm
≥73±2dBuv@-3～-14dBm
≥71±2dBuv@-4～-15dBm
l MER: ≥32dB(-14dBm optical input)
|
