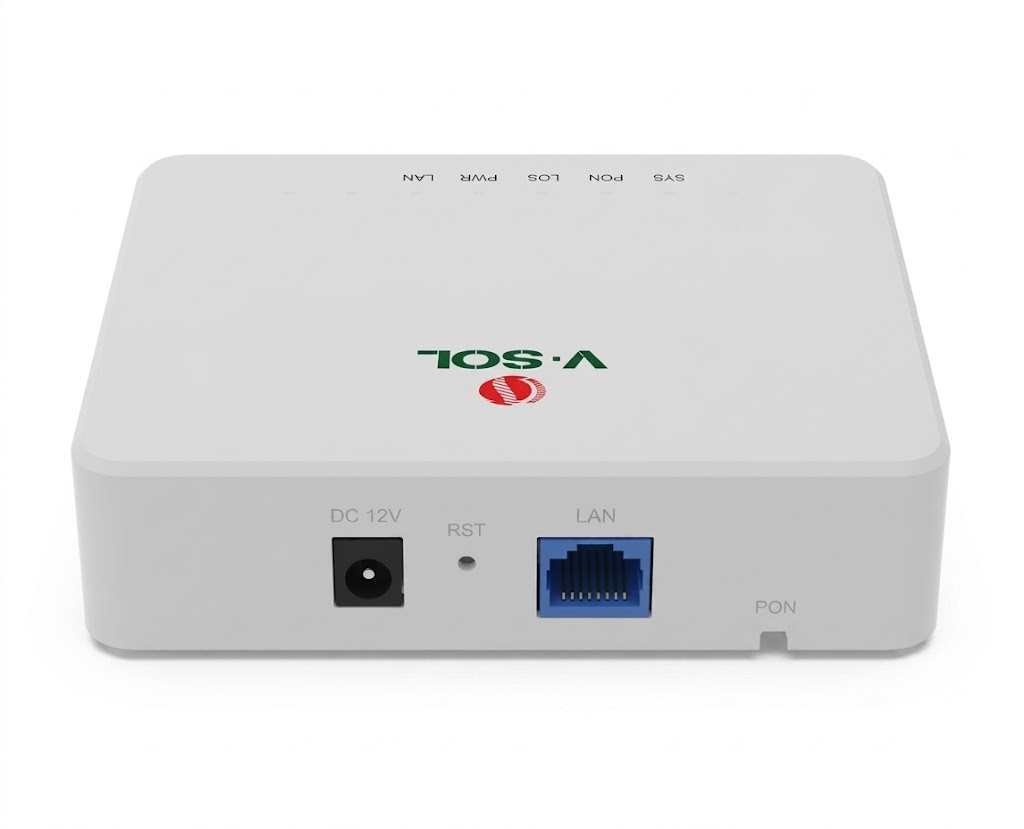

V.SOL V2901Q-A, 10G PON+2.5GbE XGS-PON Optical Network Unit
V.SOL V2901Q-A is a 10G PON Optical Network Unit designed for high-speed fiber access with WiFi 6 wireless connectivity and flexible network management. Its compact ceiling installation design combines XPON access, Gigabit Ethernet, and dual-band WiFi in a single network unit.
The V2901Q-A features 1XPON connectivity supporting EPON PX20+ and GPON Class B+ through an SC/UPC single-mode connector. It supports up to 20KM transmission distance and Power over Fiber (PoF), providing flexible deployment and powering options for compatible fiber access environments.
The unit provides 1 × GE RJ45 user interface with auto-negotiation and WiFi 6 wireless connectivity. Its wireless interface supports 2402 Mbps on 5GHz and 574Mbps on 2.4GHz, with 2x2 antennas on 2.4GHz and 3x3 antennas on 5GHz, supporting up to 128 connected devices.
WiFi 6 features include MU-MIMO, OFDMA, Multiple SSID, hidden SSID, Mesh, and WPA/WPA2/WPA3 personal encryption. These capabilities provide flexible wireless networking for connected devices while Smart network functions such as QoS, VLAN, routing, NAT, and DHCP support practical network deployments.
The V.SOL V2901Q-A also supports WEB, TELNET, OAM, OMCI, and TR069 management, along with unified network management through VSOL OLT. IPv4/IPv6 dual-stack support, firewall functions, Anti-DoS protection, parental control, loop detection, and diagnostic tools provide additional capabilities for managed fiber broadband networks.
Key Features
-
10G PON Optical Network Unit with XPON support
-
EPON PX20+ and GPON Class B+ support
-
20KM optical transmission distance
-
Power over Fiber (PoF) support
-
1 × Gigabit Ethernet RJ45 interface
-
WiFi 6 with up to 2402 Mbps on 5GHz
-
MU-MIMO, OFDMA and Mesh support
-
WEB, TELNET, OAM, OMCI and TR069 management
Specifications:
| HARDWARE |
|
| Dimension |
195mm*195mm*35mm(L*W*H) |
| Net weight |
400g |
| Working condition |
Working temp: -10~+55°C, Working humidity: 5~95% (non-condensing) |
| Storing condition |
Storing temp: -40~+70°C, Storing humidity: 5~95% (non-condensing) |
| Power adapter |
Local power supply: DC 12V, 1.5A, PoF power supply: DC 48~56V or AC 100~240V |
| Power supply |
≤18W |
| Interface |
1GE+WiFi6 |

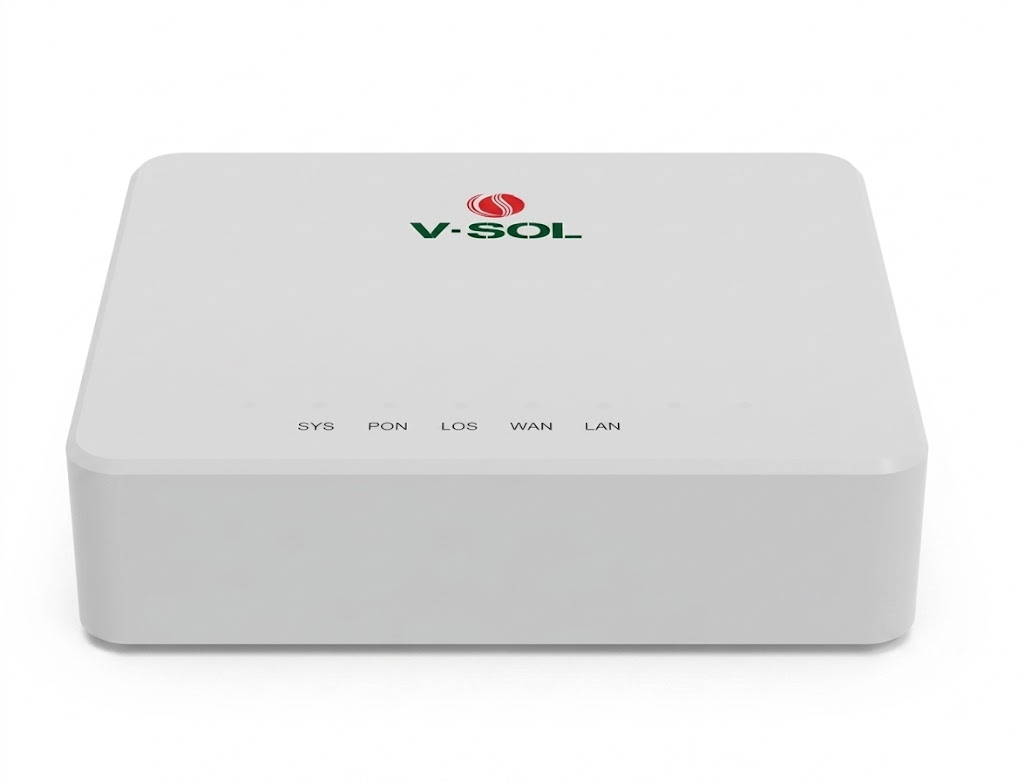

| Indicators |
PON/LOS, LAN |
| Button |
Reset |

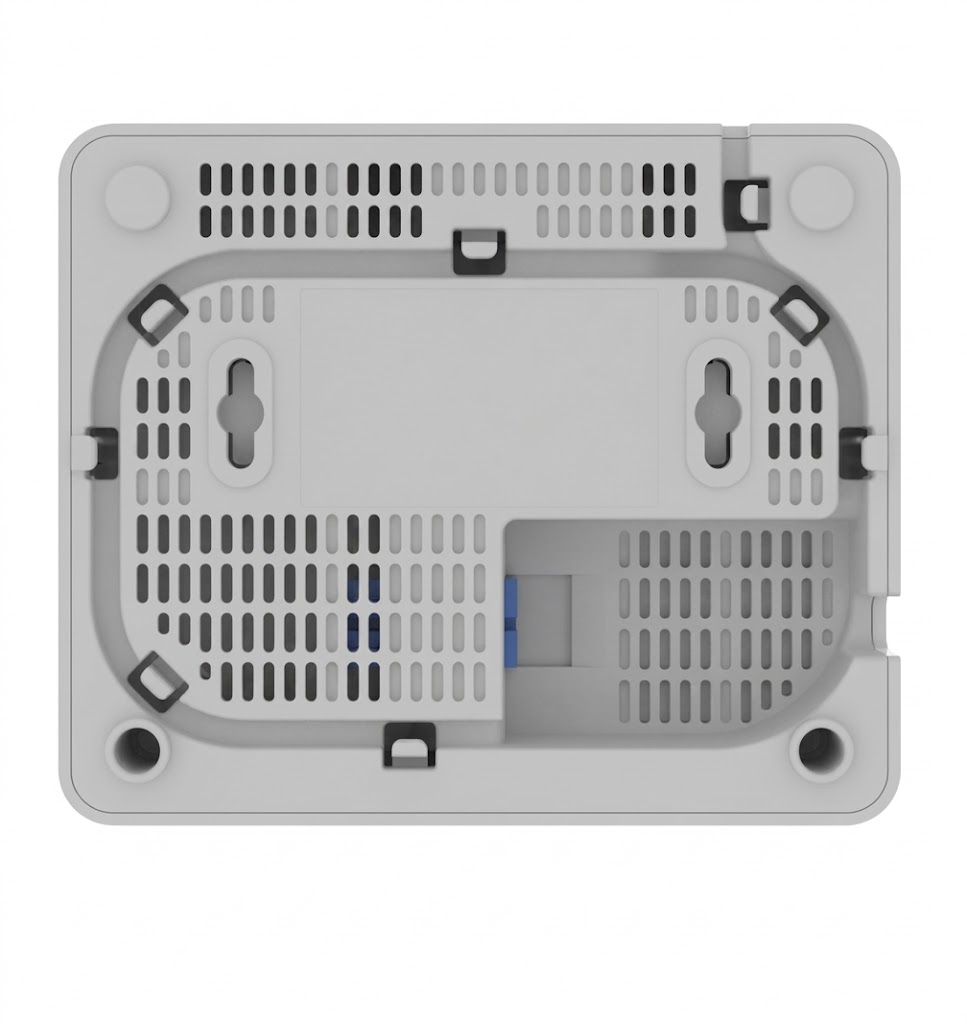

| Installation |
Ceiling installation |
| Interface |
|
| PON Interface |
1XPON port (EPON PX20+ and GPON Class B+), SC single mode, SC/UPC connector,
Support PoF, TX optical power: 0～+4dBm, RX sensitivity: -27dBm,
Overload optical power: -3dBm (EPON) or -8dBm (GPON), Transmission distance: 20KM,
Wavelength: TX 1310nm, RX 1490nm
|

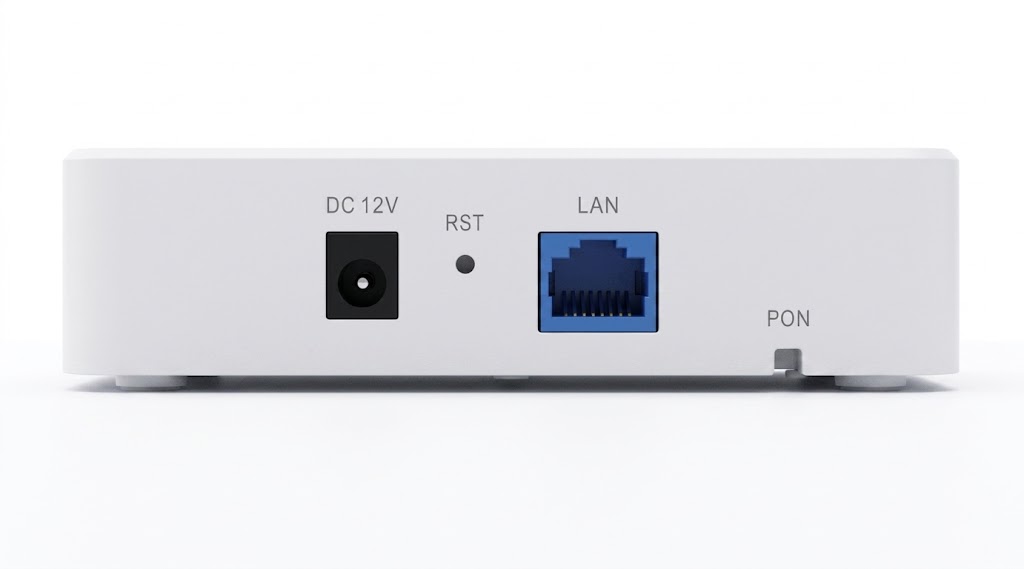

| User Interface |
1*GE, Auto-negotiation, RJ45 ports |
| WLAN Interface |
Compliant with IEEE802.11b/g/n/ac/ax, 2402 Mbps on 5GHz and 574Mbps on 2.4GHz,
2.4GHz: 2x2, 5GHz: 3x3, Internal antennas, Maximum number of connected devices: 128
|
| Function Data |
|
| O&M |
WEB/TELNET/OAM/OMCI/TR069, Support private OAM/OMCI protocol and Unified network management of VSOL OLT |
| Multicast |
IGMP v1/v2/v3, IGMP snooping, IGMP Proxy, MLD v1/v2 snooping, MLD Proxy |
| Wireless |
Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11b/g/n/ax 2.4GHz,
WiFi Encryption: WPA/WPA2/WPA3 (personal), WPS2.0,
Support MU-MIMO & OFDMA, Support Multiple SSID, Support hidden SSID,
Support Mesh
|
| QOS |
Support 4 queues, Support SP, WRR, 802.1P and DSCP |
| L2 |
Support 802.1D & 802.1ad bridge, 802.1Q VLAN |
| L3/L4 |
Support IPv4, IPv6 and IPv4/IPv6 dual stack, Support DHCP/PPPOE/Static IP, Support Static route,
NAT, Support DMZ, ALG, UPnP, Support Virtual Server, Support DNS Client and DNS Proxy,
Support DDNS
|
| Security |
Support local access control, Support IP/MAC filtering, URL filtering, Support Anti-DoS attack
function, Support loop detection, Support Parental control function
|
| System Function |
|
| System Function |
Support NTP (Network Time Protocol), Support scheduled device restart, Support Ping and
Traceroute diagnosis, Support Iperf speed measurement function, Support WLAN packet capture
|
