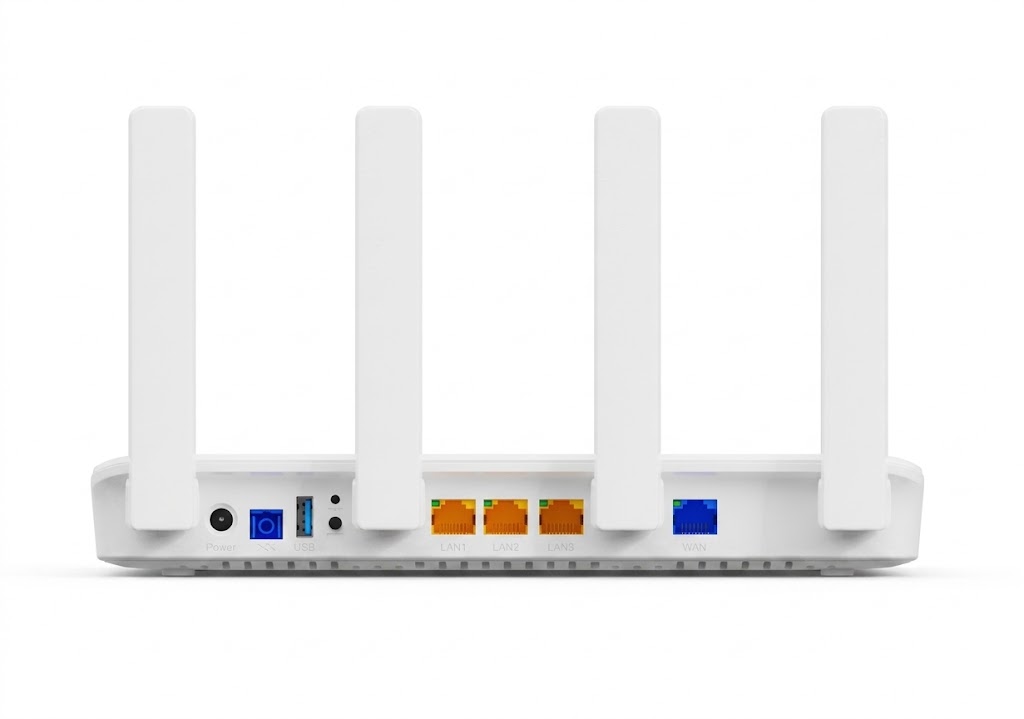

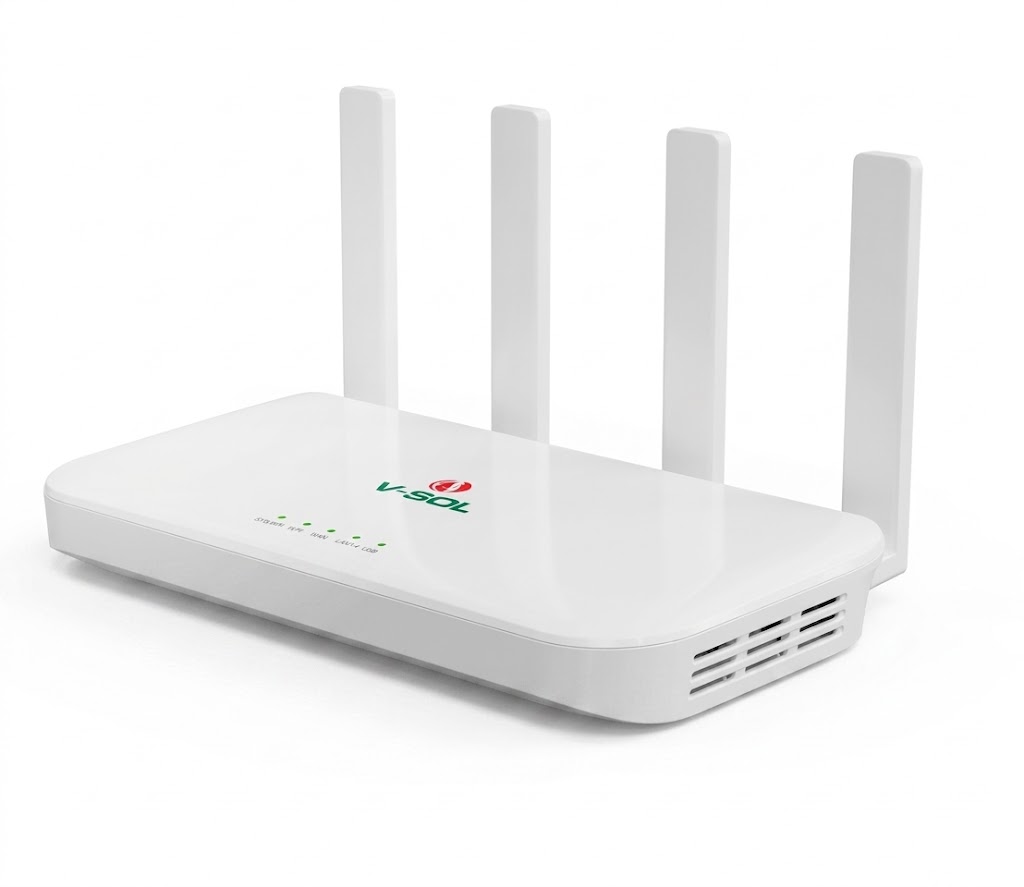

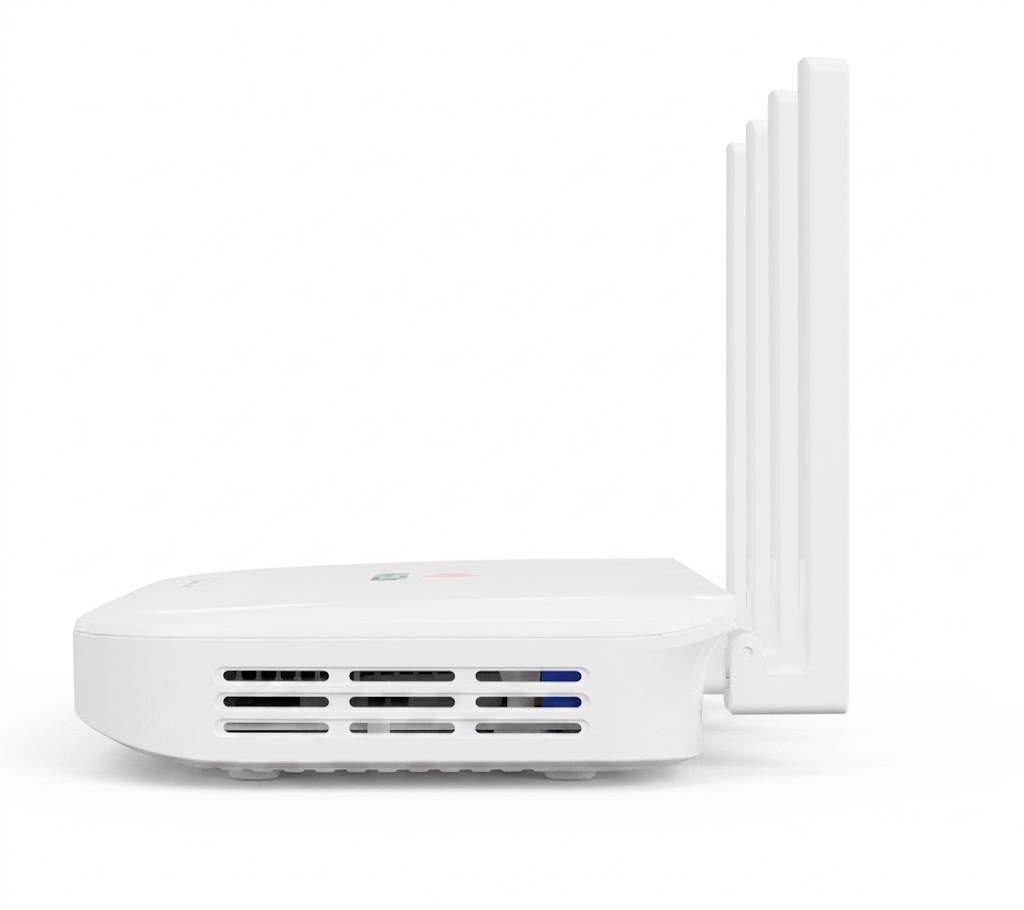

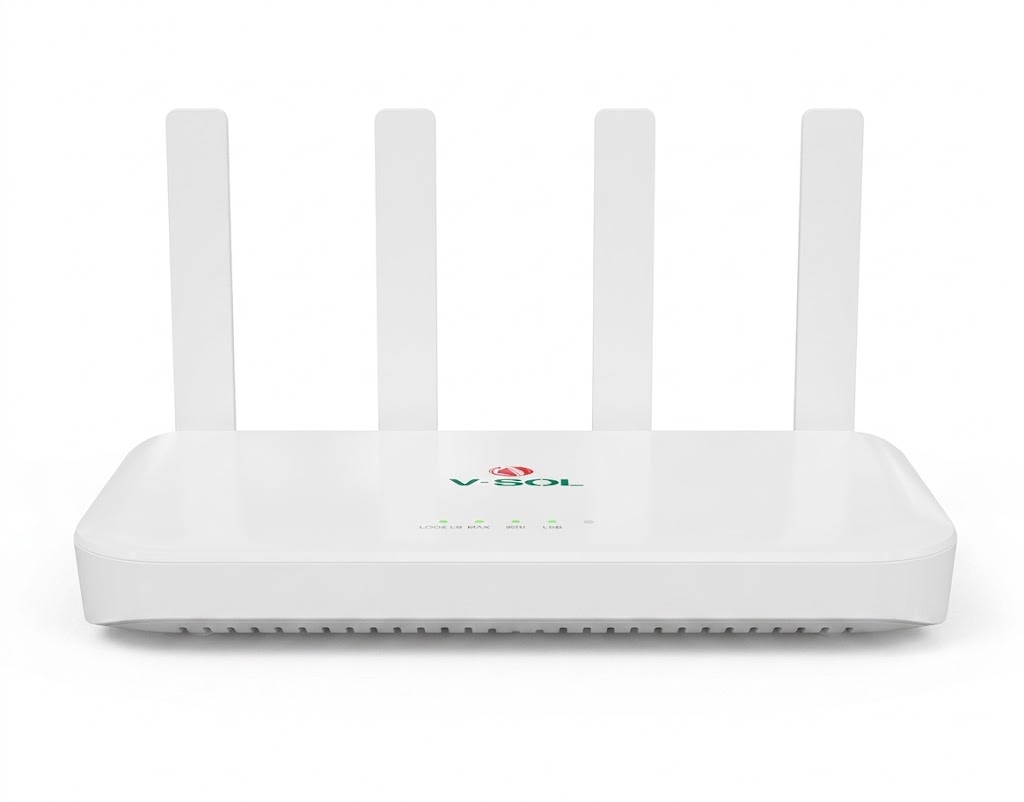

V.SOL V2904AX-XGS, WiFi 6 (AX3000) XGS-PON Optical Network Terminal (ONT)
V.SOL V2904AX-XGS is a WiFi 6 (AX3000) XGS-PON Optical Network Terminal designed to provide high-speed fiber broadband, wired networking, and advanced wireless connectivity. It combines XGS-PON access with WiFi 6, Gigabit Ethernet, 2.5GE, and USB 3.0 interfaces in a compact ONT platform.
The V2904AX-XGS features 1 × 2.5GE port, 3 × GE RJ45 ports, 1 × USB 3.0 port, and external dual-band antennas. Its WiFi 6 support across 2.4GHz and 5GHz bands provides flexible wireless connectivity, while the 2.5GE interface supports high-speed wired network connections.
The XGS-PON interface uses an SC/UPC connector and supports Class B+ optics, 20km transmission distance, and ITU-T G.9807.1 XGS-PON standards. Bridge and router modes provide deployment flexibility for broadband access environments, while IPv4/IPv6, DHCP, PPPoE, NAT, DMZ, and DDNS support enable versatile Layer 3 networking.
WiFi 6 features include OFDMA, MU-MIMO, DynamicQoS, and 1024-QAM, along with WPA, WPA2, and WPA3 encryption. Smart Connect and OneSSID allow the 2.4GHz and 5GHz bands to operate under one WiFi name, helping simplify wireless network management for connected devices.
The V.SOL V2904AX-XGS also supports WEB, TELNET, OAM, OMCI, and TR069 management, with private OAM/OMCI protocol support and unified network management through V.SOL OLT. Its USB 3.0 interface can connect to a USB disk and support FTP service, while multicast and firewall functions provide additional network service capabilities.
Key Features
-
WiFi 6 AX3000 XGS-PON Optical Network Terminal
-
1 × 2.5GE and 3 × GE RJ45 interfaces
-
1 × USB 3.0 with FTP service support
-
20km XGS-PON transmission distance
-
ITU-T G.9807.1 XGS-PON compliant
-
Dual-band 2.4GHz and 5GHz WiFi 6
-
OFDMA, MU-MIMO, DynamicQoS and 1024-QAM support
-
IPv4/IPv6, DHCP, PPPoE, NAT and DMZ support
Specifications:
| Hardware Parameter |
|
| Dimension |
244mm*131mm*36mm (L*W*H) |
| Net weight |
425g |
| Operating condition |
Operating temp: -10 ~ +55°C
Operating humidity: 5 ~ 95% (non-condensed)
|
| Storing condition |
Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95% (non-condensed) |
| Power adapter |
12V/2A |
| Power supply |
24W |
| Interface |
1*2.5GE+3*GE+1*USB 3.0+Wi-Fi 6 |
| Indicators |
PON/LOS, WAN, USB, Wi-Fi |
| Interface Parameter |
|
| PON Interface |
• 10G PON port: Class B+
• SC single mode, SC/UPC connector • TX optical power: 6dBm(XGS-PON)• RX sensitivity: -28dBm
• Overload optical power: -8dBm
• Transmission distance: 20km
• Wavelength: XG(S)-PON:DS 1577nm/US 1270nm
|
| 10G PON layer |
ITU-T G.9807.1 (XGS-PON) |
| User interface |
1*2.5GE, Auto-negotiation, RJ45 ports, 3*GE, Auto-negotiation, RJ45 ports, 1*USB 3.0 |
| Antenna |
2*4dBi (2.4GHz), 2*5dBi(5GHz); external antennas |
| USB |
1×USB 3.0(Can connect to USB disk and support FTP service) |
| Function Data |
|
| O&M |
• WEB/TELNET/OAM/OMCI/TR069
• Support private OAM/OMCI protocol andUnified network management of VSOLOLT
|
| Internet Connection |
Support Bridge/Router mode |
| Multicast |
• IGMP v1/v2/v3, IGMP snooping, • MLD v1/v2 snooping |
| Wi-Fi |
• Wi-Fi 6: 802.11a/n/ac/ax 5GHz&802.11g/b/n/ax 2.4GHz
• WiFi Encryption:WEP-64/WEP-128/
WPA/WPA2/WPA3
• Support OFDMA, MU-MIMO, DynamicQoS,1024-QAM
• Smart Connect for one Wi-Fi name- OneSSID for 2.4GHz and 5GHz dual band |
| L2 |
802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN |
| L3 |
IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS |
| Firewall |
Anti-DDOS, Filtering Based on ACL/MAC |
