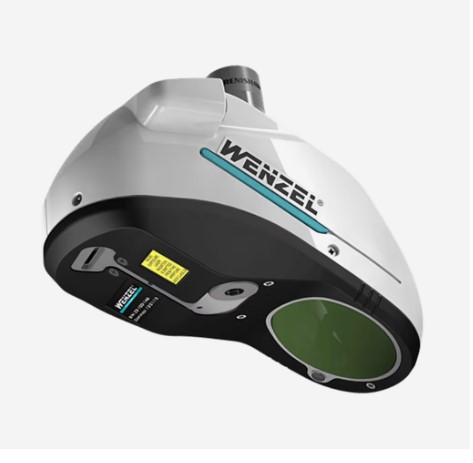

Wenzel WM | LS 70, 2M Blue laser 10 µm 3D Optical Sensor

When you need to capture the shape of a part that has tiny details or reflective surfaces, traditional touch probes can miss features or take too long. Missing those details can cause a bad fit, extra scrap, or costly re-work. The Wenzel WM | LS 70, 2M Blue laser 10 m 3D Optical Sensor gives you fast, non-contact measurement with 10 m accuracy, so you can trust every dimension the first time.

Wenzel WM | LS 70, 2M Blue laser 10 m 3D Optical Sensor with Wenzel

Imagine seeing every curve, edge and hole of a component in real time, without touching it. The WM | LS 70 is a blue-laser triangulation sensor that creates a 3-D line scan up to 70 mm wide at 250000 points per second. It works on the Wenzel measuring arm or CMM, giving you the data you need for quality control, reverse engineering or rapid inspection. If you struggle with dark, glossy or complex parts, this sensor removes the guesswork.

Key Features

• Blue laser triangulation for high contrast on dark and glossy materials.
• Line width up to 70 mm, covering large features in a single pass.
• Class 2M safety rating, safe for indoor use.
• Measurement rate of up to 250000 points per second.
• Approximate accuracy of 10 m across the whole line.
• Automatic sensor exchange via Autojoint adapter.
• Near-simultaneous optical and tactile measurement modes.
• Compatible with Renishaw TP20 probe and other tactile probes.
• Lightweight design fits on Renishaw PH10 probe heads.
• Integrated with WM | Quartis software for seamless data handling.
• Retrofit ready for existing Wenzel systems.

Specifications
