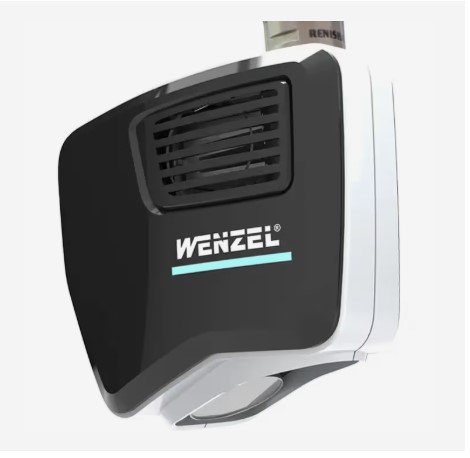

WENZEL WM | Shapetracer II 3d Line Scanner (Optical Sensor)

Imagine trying to capture the exact shape of a tiny part and ending up with rough data that forces you to redo the work. The WENZEL WM | Shapetracer II 3d Line Scanner (Optical Sensor) is a compact optical sensor that creates high-density point clouds in seconds. It solves the frustration of slow, low-resolution scans, giving you reliable geometry for inspection, reverse engineering, or quality control.

WENZEL WM | Shapetracer II 3d Line Scanner (Optical Sensor)

Many shops struggle with inaccurate measurements because traditional probes miss fine details or take too long to collect data. This problem hurts productivity and can lead to costly errors in the final product. The Shapetracer II uses blue laser line triangulation to capture up to 100,000 points per second, delivering a clear, dense point cloud that reflects every curve and edge. Integrated directly into a multi-sensor CMM, it removes the need for separate equipment and reduces set-up time, so you get fast, precise results without extra hassle.

Key Features

• Blue laser line triangulation for superior accuracy.
• Working distance of approximately 80 mm.
• Measuring range up to 120 mm with 29 m minimum point spacing.
• Maximum point rate of about 100,000 points per second.
• Ambient light filter for reliable scans in bright environments.
• Compatible with Renishaw Autojoint adapter and tactile probes.
• Automatic sensor replacement via Autojoint interface.
• Supports WM | Quartis and WM | PointMaster software.
• Material compatibility includes aluminium, sheet metal, plastics, and reflective surfaces.
• Fast data transfer and minimal surface pretreatment required.

Specifications
