Westermo L210-F2G, 10 Ports Layer 3 Managed Ethernet Switch

When an industrial network needs routing capabilities without using a large rack-mounted switch, a compact managed switch can provide a better fit for control cabinets and distributed network points. The Westermo L210-F2G combines Layer 3 routing functionality with copper and fiber connectivity in a small metal enclosure designed for demanding operating conditions.

Westermo L210-F2G, 10 Ports Layer 3 Managed Ethernet Switch

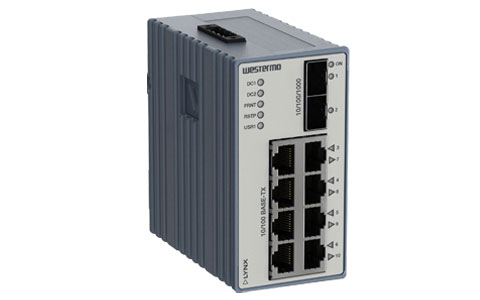

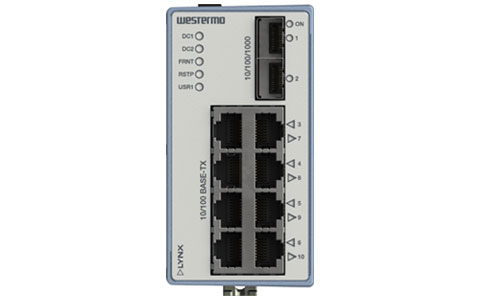

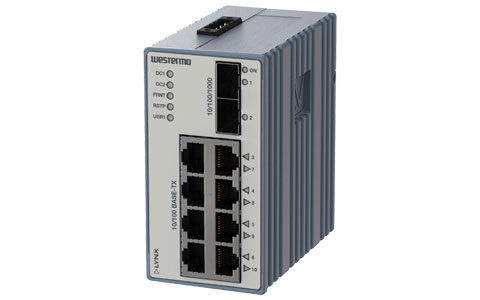

The Westermo L210-F2G is a managed Ethernet switch with routing functionality, designed for industrial networks that need more than basic Layer 2 switching. It provides 8 copper ports and 2 fibre SFP ports, allowing industrial Ethernet devices and fiber network segments to be connected through one compact Layer 3 platform. The switch runs on the WeOS operating system for managed network operation.

Its Layer 3 functionality allows the switch to be used where routing is required between different network segments. With 64 VLANs and 4 priority queues, it can organize connected devices and manage traffic according to network requirements. One digital input, one digital output, and a console interface also provide additional options for monitoring and local network integration.

The L210-F2G includes a status relay contact for alarm functions and a digital input with defined logic levels. The relay supports up to 60 VDC and 80 mA, while the digital input supports up to 60 VDC and 2 mA. These interfaces allow the switch to interact with external status or alarm circuits in industrial installations.

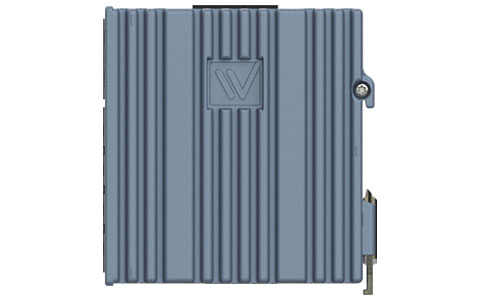

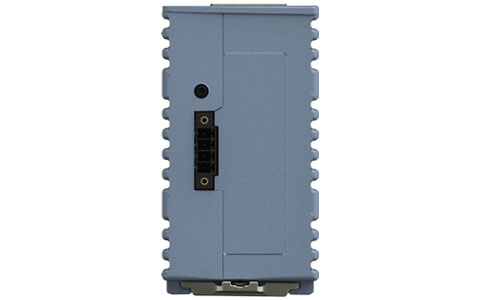

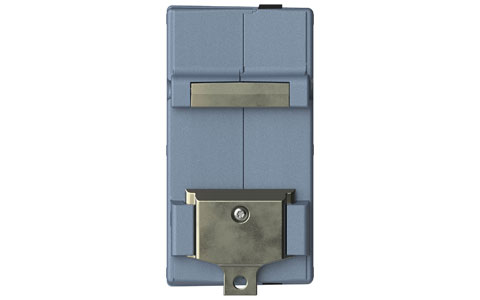

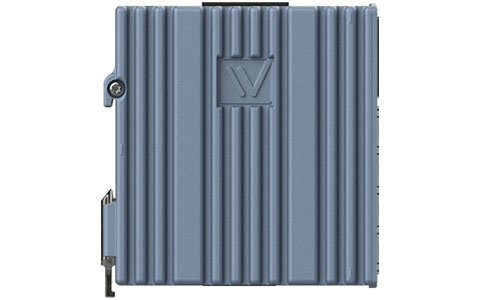

Power is supplied through a 24 to 48 VDC rated voltage range, with an operating voltage range of 19 to 60 VDC. Its full-metal housing, IP40 protection, and convection cooling support installation in industrial control environments without relying on forced-air cooling. The compact 100 × 52 × 101 mm dimensions also make it practical where cabinet space is limited.

The switch is designed for broad environmental conditions, operating from -40 to +70°C and supporting storage and transport temperatures from -50 to +85°C. Its approvals and standards include industrial EMC requirements, railway EN 50121-4/IEC 62236-4, NEMA TS 2, UL 62368-1, and DNV GL rules for classification for ships and offshore units. With its Layer 3 routing functionality, mixed copper and fiber interfaces, compact construction, and industrial approvals, the L210-F2G is suited to industrial, transportation, traffic, and marine network installations.

Key features

• Managed Ethernet Switch with Routing Functionality
• Layer 3 switch with WeOS operating system
• 8 copper ports and 2 fibre SFP ports
• 64 VLANs and 4 priority queues
• Status relay contact and digital input/output
• 19 to 60 VDC operating voltage
• Full-metal IP40 housing with convection cooling
• -40 to +70°C operating temperature
