Westermo Lynx 5512-E-F4G-T8G-LV, 12 Ports Layer 3 Gigabit Managed Switch

When a network has to handle Gigabit Ethernet, fiber uplinks, Layer 3 routing, and reliable communication in harsh environments, a basic industrial switch may not provide enough flexibility. The Westermo Lynx 5512-E-F4G-T8G-LV combines copper and fiber connectivity with Layer 3 switching, rugged construction, wide DC power input, and industrial, railway, traffic, and marine certifications.

Westermo Lynx 5512-E-F4G-T8G-LV, 12 Ports Layer 3 Gigabit Managed Switch

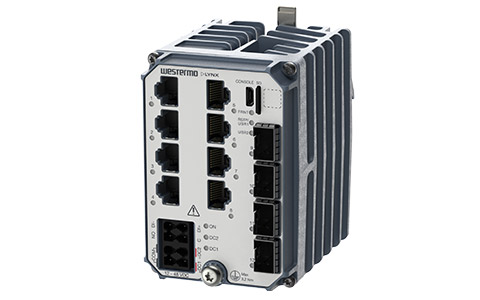

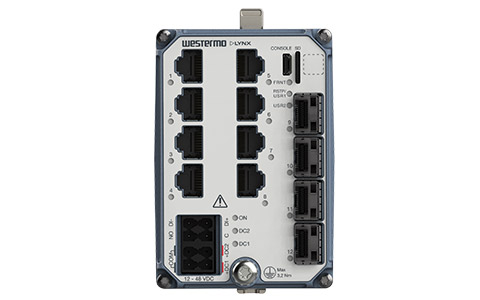

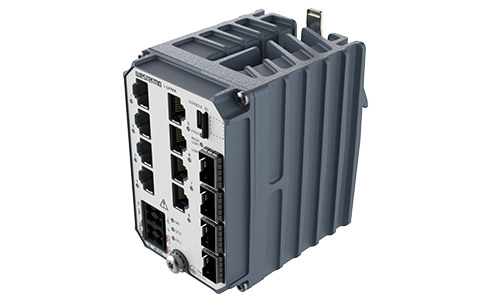

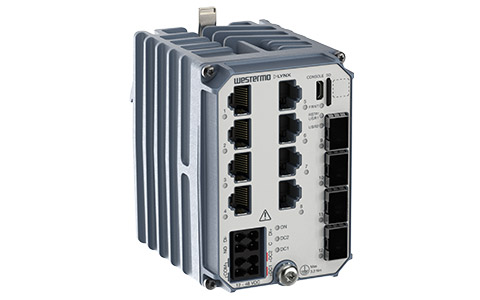

The Westermo Lynx 5512-E-F4G-T8G-LV is an industrial Layer 3 Gigabit managed switch designed for networks that need both high-speed copper connections and fiber connectivity. It provides 12 ports in total, including eight 10/100/1000 Mbit/s RJ-45 Ethernet ports and four 100/1000 Mbit/s SFP ports. This combination allows connected equipment to use copper Ethernet while fiber links can be used for uplinks or network connections where longer-distance or electrically isolated communication is required.

The Layer 3 design provides network functionality beyond basic Ethernet switching, making the Lynx 5512 suitable for more structured industrial networks. With 64 VLANs and eight priority queues, the switch can organize network traffic and prioritize important data. Its galvanic isolation to all ports also helps separate connected interfaces electrically, which is useful in industrial environments where equipment may be exposed to electrical disturbances.

The switch is designed for practical industrial management and maintenance. A Micro USB console provides local access, while Secure Digital 2.0 support through the Micro SD interface provides additional storage capability. The 4-pin detachable push-in terminal provides the digital I/O interface. Westermo's WeOS 5 platform and WeConfig support provide the software environment and configuration tools for managing the switch.

Power flexibility is important when equipment must be installed across different industrial systems. The LV version has a rated voltage of 12 to 48 VDC and an operating voltage range of 9.6 to 60 VDC. The full-metal housing measures only 70 x 100 x 100 mm and weighs 690 gr, making the switch suitable for compact control cabinets and equipment installations where space is limited.

The Lynx 5512 is built for demanding operating conditions and multiple infrastructure sectors. It operates from -40 to +70°C, supports 5-95% relative humidity, and provides IP40 ingress protection. Its specifications include railway trackside, marine, traffic-control, safety, and industrial EMC requirements, making it suitable for industrial automation, railway infrastructure, traffic systems, marine installations, and other demanding network environments.

Key features

• Industrial Layer 3 Gigabit managed switch
• 8 x 10/100/1000 Mbit/s RJ-45 Ethernet ports
• 4 x 100/1000 Mbit/s SFP fiber ports
• WeOS 5 platform with WeConfig support
• 64 VLANs and 8 priority queues
• Galvanic isolation to all ports
• 9.6 to 60 VDC operating voltage range
• -40 to +70°C operating temperature range
