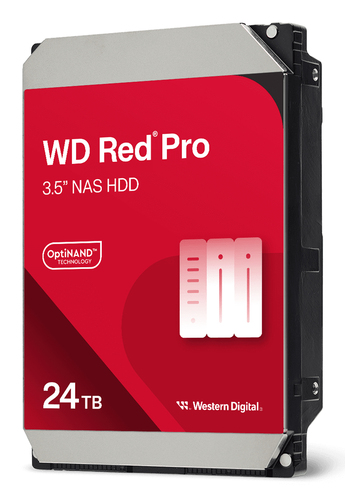

Western Digital Red Pro WD241KFGX, 24TB 7200 RPM 3.5" Serial ATA Internal HDD
The Western Digital Red Pro WD241KFGX is a 24TB internal hard drive designed for demanding NAS and storage environments. With a 7200 RPM spindle speed, 512MB buffer, and SATA 6Gb/s interface, it provides high-capacity storage and reliable data access for professional and business applications.
Built for continuous operation, the WD241KFGX supports 24x7 operation and offers a workload rating of up to 550 TB per year. Its CMR recording technology provides consistent performance, while NASware technology helps support compatibility and reliability in NAS systems.
The drive features a 3.5-inch form factor and is compatible with 3.5-inch bays. It delivers an internal data rate of 287 MBps and an external data transfer rate of up to 600 MBps, making it suitable for large-scale file storage, backups, media libraries, and business data.
For enhanced reliability, the WD241KFGX includes a Rotational Vibration sensor, multi-axis shock sensor, Dynamic Fly Height technology, and Error Recovery Control. It also uses Helium and OptiNAND technologies to support efficient and dependable operation.
With 24TB of storage, 7200 RPM performance, 512MB cache, and a 2,500,000-hour MTBF, the Western Digital Red Pro WD241KFGX is well suited for high-capacity NAS systems and other demanding storage environments.
Key Features
-
24TB high-capacity internal HDD
-
7200 RPM spindle speed
-
512MB buffer size
-
SATA 6Gb/s interface
-
287 MBps internal data rate
-
24x7 continuous operation
-
Up to 550 TB/year workload
-
3.5-inch form factor
-
2,500,000-hour MTBF
Specifications
| Miscellaneous |
|
| MTBF |
2,500,000hours |
| Storage |
|
| Type |
Hard drive |
| Header |
|
| Product Line |
WD Red Pro |
| Packaged Quantity |
1 |
| Dimensions & Weight |
|
| Height |
1in |
| Width |
4in |
| Depth |
5.8in |
| Weight |
23.63oz |
| Environmental Parameters |
|
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
149 °F |
| Min Storage Temperature |
-40 °F |
| Max Storage Temperature |
158 °F |
| Shock Tolerance (non-operating) |
200 g @ 2 ms |
| Shock Tolerance (operating) |
40 g @ 2 ms |
| Sound Emission |
25 dBA |
| General |
|
| Capacity |
24 TB |
| Depth |
5.8 in |
| Buffer Size |
512 MB |
| Width |
4 in |
| Weight |
23.63 oz |
| Interface |
SATA 6Gb/s |
| Device Type |
Hard drive - internal |
| Form Factor |
3.5" |
| Height |
1 in |
| Expansion & Connectivity |
|
| Interfaces |
1 x SATA 6 Gb/s |
| Compatible Bay |
3.5" |
| Performance |
|
| Drive Transfer Rate |
600 MBps (external) |
| Spindle Speed |
7200 rpm |
| Internal Data Rate |
287 MBps |
| Reliability |
|
| 24x7 Operation |
Yes |
| MTBF |
2,500,000 hours |
| Non-Recoverable Errors |
10 per 10^15 |
| Load / Unload Cycles |
600,000 |
| Hard Drive |
|
| Internal Data Rate |
287MBps |
| Form Factor |
3.5" |
| Non-Recoverable Errors |
10 per 10^15 |
| Spindle Speed |
7200rpm |
| Interface |
Serial ATA-600 |
| Form Factor (Short) |
3.5" |
| 24x7 Operation |
Yes |
| Form Factor (Short) (metric) |
8.9 cm |
| Capacity |
24TB |
| Data Transfer Rate |
600MBps |
| Buffer Size |
512MB |
| Hard Drive Type |
Internal hard drive |
| Form Factor (metric) |
8.9 cm |
| Power |
|
| Power Consumption |
6 watt (read) ¦ 6 watt (write) ¦ 3.6 watt (idle) ¦ 1.1 watt (standby) ¦ 1.1 watt (sleep) |
