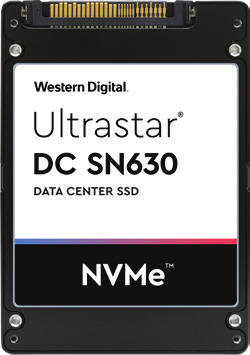

Accelerate Access to Critical Data for Data-Intensive Workloads and Applications
Ultrastar NVMe series SSDs perform at the speed of today’s business needs. Enabling faster intelligence and access to critical data, these SSDs meet the growing digital demands of your business applications. Our top-end Ultrastar DC SN200 drive delivers extreme performance and ultra-low latency to the top tier of enterprise storage. It takes hyper-converged infrastructure (HCI) system throughput to new levels and helps scale on-line transaction processing (OLTP). Our Essential NVMe drives, Ultrastar DC SN620 and DC SN630, offer low latency and higher bandwidth for a seamless transition away from SATA SSDs in mixed-use and read-intensive applications. This combination of high throughput and predictable low latency delivers high performance for deeper insights and faster results for today’s data intensive applications.
Specifications
| Features |
| Mean time between failures (MTBF) |
2000000 h |
| PCI Express interface data lanes |
x4 |
| Read latency |
120 µs |
| Random write (4KB) |
46410 IOPS |
| Random read (4KB) |
277220 IOPS |
| Write speed |
970 MB/s |
| Read speed |
2770 MB/s |
| Security algorithms |
256-bit AES |
| Hardware encryption |
Yes |
| Component for |
PC |
| Memory type |
3D TLC |
| NVMe version |
1.3 |
| NVMe |
Yes |
| Interface |
U.2 |
| SSD form factor |
2.5" |
| SSD capacity |
960 GB |
| Power |
| Power consumption (idle) |
5.6 W |
| Power consumption (average) |
10.75 W |
| Operating voltage |
12 V |
| Weight & dimensions |
| Weight |
95 g |
| Height |
7 mm |
| Depth |
100.5 mm |
| Width |
69.8 mm |
| Operational conditions |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Other features |
| Operating temperature (T-T) |
0 - 70 °C |
