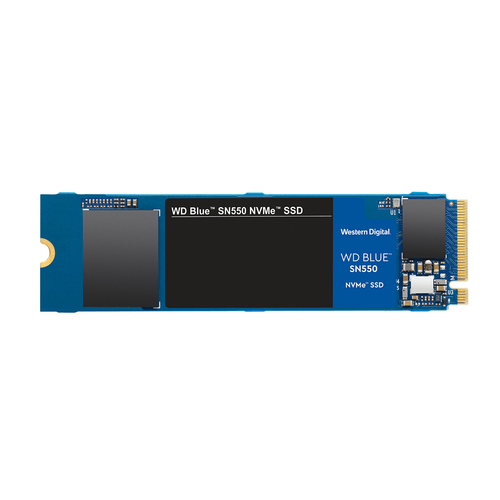

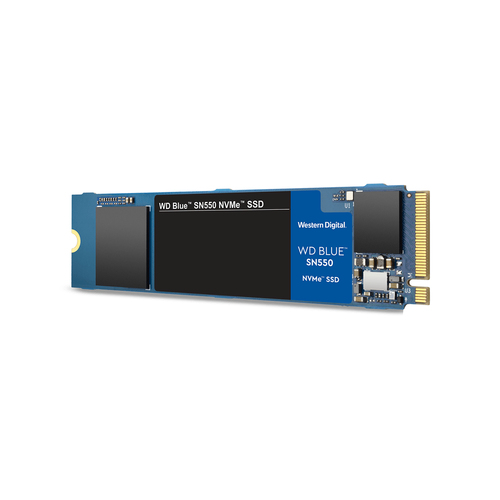

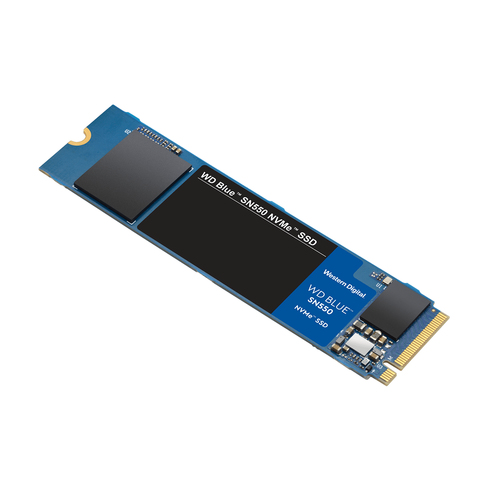

Drive Performance Beyond SATA
The WD Blue™ NVMe™ SSD family boosts performance immensely over our high-end SATA SSDs with lightning-fast, ultra-responsive performance. The WD Blue NVMe SSD family allows resellers, system builders and consumers to take advantage of our reliable NVMe storage solution when creating their next PCs. Available in capacities up to 1TB in an M.2 2280 form factor, the WD Blue NVMe SSD family will give your system the boost you need.
Fast
Get breakneck sequential read speeds up to 2,400 MB/s to improve your productivity no matter what you’re doing or creating
Low Power
Enables a low power draw while maintaining significantly higher performance over our SATA SSD
Reliable
Our in-house controller and 3D NAND supports the PCIe® NVMe™ interface and DRAM-less configurations
Specifications
| Features |
| Certification |
UL, TUV, FCC, BSMI, CE, KCC, RCM, Morocco, VCCI and CAN ICES-3(B)/NMB-3(B) |
| TBW rating |
150 |
| Mean time between failures (MTBF) |
1700000 h |
| Random write (4KB) |
135000 IOPS |
| Random read (4KB) |
170000 IOPS |
| Write speed |
950 MB/s |
| Read speed |
2400 MB/s |
| Data transfer rate |
8 Gbit/s |
| Hardware encryption |
Yes |
| Component for |
PC |
| Memory type |
3D NAND |
| NVMe |
Yes |
| Interface |
PCI Express 3.0 |
| SSD form factor |
M.2 |
| SSD capacity |
250 GB |
| Power |
| Power consumption (sleep) |
0.05 W |
| Power consumption (average) |
0.075 W |
| Power consumption (max) |
3.5 W |
| Weight & dimensions |
| Weight |
6.5 g |
| Height |
2.38 mm |
| Depth |
80 mm |
| Width |
22 mm |
| Operational conditions |
| Operating shock |
1500 G |
| Storage temperature (T-T) |
-55 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Other features |
| Operating temperature (T-T) |
0 - 70 °C |
