Imagine being able to manage your warehouse or factory operations with ease, using a powerful and reliable computer that can withstand the toughest environments. The Winmate FM12E, Intel Atom x6413E 1.5GHz, 12.1" Forklift Mounted Computers is here to revolutionize the way you work. This device is designed to help you streamline your operations, improve efficiency, and reduce errors. With its rugged design and advanced features, it's the perfect solution for businesses that need a reliable and powerful computer that can keep up with their demanding needs.

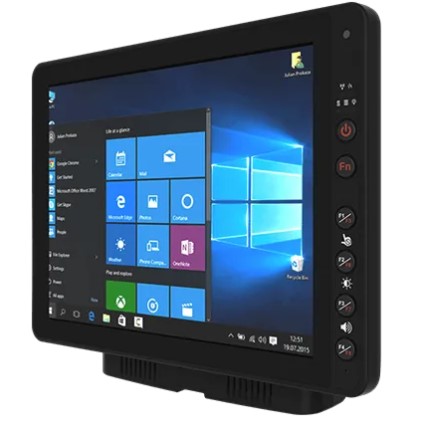

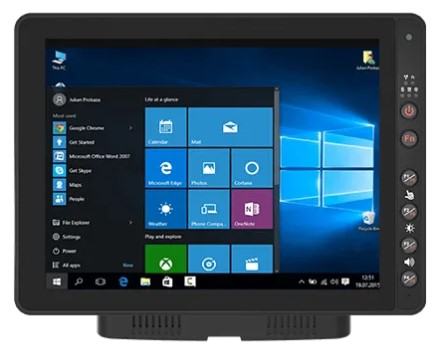

Winmate FM12E, Intel Atom x6413E 1.5GHz, 12.1" Forklift Mounted Computers
The Winmate FM12E solves the problem of inefficient warehouse management by providing a reliable and powerful computer that can withstand the toughest environments. This problem matters to users because it can lead to decreased productivity, increased errors, and reduced customer satisfaction. The Winmate FM12E gives a clear solution by providing a rugged and advanced computer that can keep up with demanding needs. With its powerful Intel Atom x6413E 1.5GHz processor and 12.1" display, it's the perfect device for managing warehouse operations, tracking inventory, and communicating with team members.
Key Features
- 12.1" display with projected capacitive multi-touch and 1024x768 resolution
- Intel Atom x6413E 1.5GHz processor with 4GB of memory and 128GB of storage
- Rugged design with IP65 rating and fanless cooling system
- Support for WLAN, BT, and WWAN with 4G/LTE and GPS/AGPS
- 5 x function buttons and 1 x power button with programmable function key configured by Winset
- 1 x USB Type-C and 1 x DB9 connector for 2 x USB 2.0 port
- 2 x COM port and 1 x Gigabit LAN port with 2 x speaker and 1 x CANBus or audio
- 7.6V UPS battery with minimum 30 minutes of runtime and 10V-60V power rating
- 45W typical power consumption and fanless design for reduced noise and increased reliability
- Support for SOTI MobiControl and compliance with MIL-STD-810H and IP65 ratings
Specifications
| Display |
|
| Size |
12.1 inches |
| Type |
Projected Capacitive Multi Touch |
| Resolution |
1024x768 |
| Panel Brightness |
400 nits |
| Contrast Ratio |
1000:1 |
| View Angles |
89,89,89,89 |
| Touch Mode |
Support Hand, Stylus, Glove Mode |
| System Specification |
|
| Processor |
Intel Atom x6413E 1.5GHz (up to 3GHz) |
| Memory |
4GB |
| Storage |
128GB |
| Security |
TPM 2.0 |
| Operating System |
Windows 10 IoT Enterprise LTSC (64 bit) |
| WLAN |
Support |
| BT |
Support |
| WWAN |
4G/LTE |
| GNSS |
GPS/AGPS |
| Sensors |
G-Sensor, Light Sensor, Temp Sensor |
| Camera |
|
| Front Camera |
2MP Camera |
| Environment |
|
| Operating Humidity |
5% to 90% RH, Non-Condensing |
| Operating Temperature |
-30°C to 60°C |
| Storage Temperature |
-30°C to 60°C |
| Shock |
MIL-STD-810H Method 516.8 Procedure I |
| Vibration |
MIL-STD-810H Method 514.8 Procedure I |
| IP rating |
IP65 |
| Impact |
Support EN62262 IK07 Rating |
| ESD |
Compliant with EN 61000-4-2, enhanced ESD to ±8kV direct & ±12kV air |
| Certification |
|
| Certification |
CE, FCC
FCC (Electromagnetic Emissions), IC (ICES-003)
UL60950-1, EN60950-1, PTCRB
|
| Control |
|
| Button |
1 x Power Button, 5 x Function Button(Programmable Function Key Configured by Winset) |

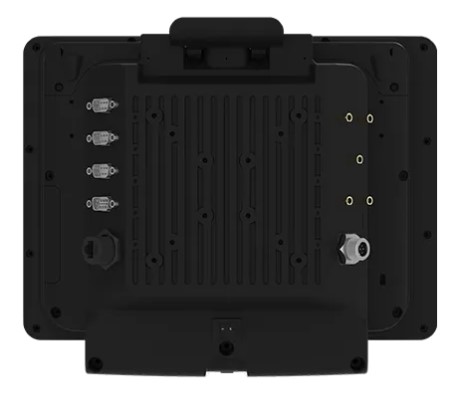

| IO Ports |
|
| USB Port |
1 x USB Type-C (Tablet)
1 x DB9 Connector for 2 x USB 2.0 Port (Docking)
|
| Serial Port |
2 x COM Port (Docking) |
| LAN |
1 x Gigabit LAN port (Docking) |
| Audio |
2 x Speaker (Docking)
1 x CANBus or 1 x Audio (Docking)
|
| SD Card Slot |
1 x Micro SD Card Slot (Tablet) |
| SIM Card Slot |
1 x Dual-Nano SIM Card Slot |
| Indicator |
4 x LED Indicator(WLAN, UPS battery, HDD, Heater) |
| Docking Connector |
SMA Connector (female) for external antenna WLAN |
| Mechanical |
|
| Dimension |
Tablet: 307 x 225 x 41 mm
Docking: 202 x 245 x 52 mm
|
| Docking Housing |
Aluminum Alloy Housing |
| Weight |
Tablet 1.7 kg
Docking 1.6 kg
|
| Mounting |
RAM mount / VESA mount |
| Cooling System |
Fanless Design |
| Security Function |
|
| SOTI MobiControl |
SOTI MobiControl Compliance |
| Accessory |
|
| Accessory |
5M Power Cable with Fuse Kit
0.3M USB Cable
0.15M Power Converter Cable
DC Jack Power Cable
84W Adapter with power cable
Cable Clamp Kit
WLAN Antenna x 2
Quick Start Guide
External Antenna Fixing Bracket
Dock + Latch Locking Key
Stylus Kit + Screw |
| Power |
|
| Battery |
7.6V UPS Battery (2S1P) Minimum 30 minutes |
| Power Rating |
Docking: 10V-60V with ignition control, Tablet: 12V DC In |
| Consumption |
45W (Typical) |
