If you are looking for a powerful and reliable vehicle mounted computer, you are in the right place. The Winmate FM12MG, 4GB/64GB 12.1" Android Vehicle Mounted Computer is a top-of-the-line device that can help you stay connected and productive on the go. Many people struggle with finding a computer that can keep up with their demanding work requirements, especially when they are on the move. This is where the Winmate FM12MG comes in, providing a solution to this problem with its advanced features and durable design. With its powerful processor and high-quality display, this computer is perfect for anyone who needs a reliable and efficient device for their work or personal use.

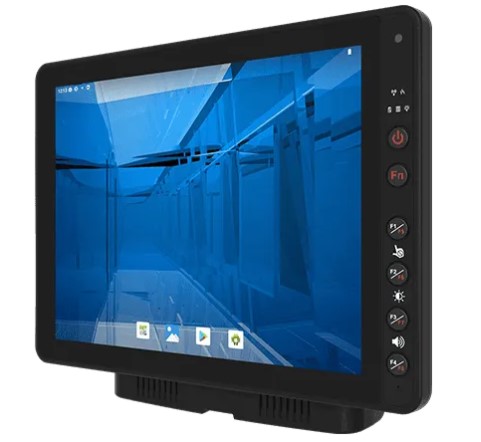

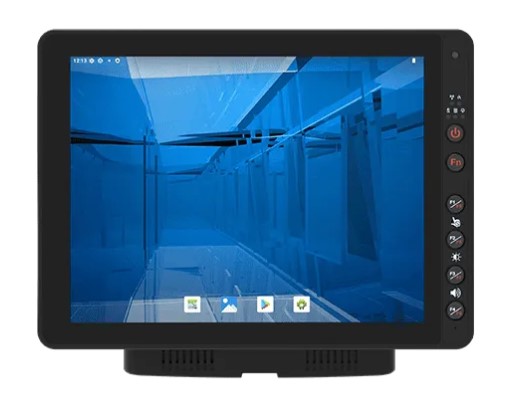

Winmate FM12MG, 4GB/64GB 12.1" Android Vehicle Mounted Computer
The Winmate FM12MG solves the problem of having a limited and unreliable computer system in your vehicle. This problem matters to users because it can cause delays and inefficiencies in their work, leading to lost productivity and revenue. The Winmate FM12MG provides a clear solution to this problem by offering a powerful and reliable computer system that can keep up with demanding work requirements. With its advanced features and durable design, this computer is perfect for anyone who needs a reliable and efficient device for their work or personal use. The Winmate FM12MG is designed to provide a seamless and efficient computing experience, making it an essential tool for anyone who needs to stay connected and productive on the go.
Key Features
- 12.1" projected capacitive multi-touch display
- ARM Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz processor
- 4GB of memory and 64GB of onboard storage
- Android 13 operating system
- WLAN and Bluetooth connectivity
- Optional 4G/LTE and GPS/GLONASS capabilities
- 2MP front camera and 3 x LED indicators
- IP65 rating and fanless design
- Support for SOTI MobiControl and other security features
- Includes a variety of accessories, such as a power cable and USB cable
Specifications:
| Display |
|
| Size |
12.1 inches |
| Type |
Projected Capacitive Multi Touch |
| Resolution |
1024x768 |
| Panel Brightness |
400 nits |
| Contrast Ratio |
1000:1 |
| View Angles |
89,89,89,89 |
| Touch Mode |
Support Hand, Stylus, Glove Mode |
| System Specification |
|
| Processor |
ARM Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory |
4GB |
| Storage |
Onboard 64 GB |
| Operating System |
Android 13 |
| WLAN |
Support with Internal Antenna |
| BT |
Support |
| WWAN |
4G/LTE with External Antenna (Optional) |
| GNSS |
GPS/GLONASS with External Antenna (Optional) |
| Sensors |
G-Sensor, Temp. Sensor |
| Camera |
|
| Front Camera |
2MP Camera |
| Mechanical |
|
| Dimension |
Tablet: 307 x 225 x 41 mm
Docking: 202 x 245 x 52 mm
|
| Weight |
2.5 kg |
| Mounting |
RAM mount / VESA mount |
| Cooling System |
Fanless Design |

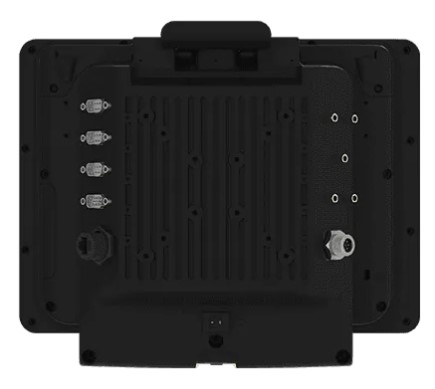

| IO Ports |
|
| USB Port |
1 x USB 2.0 Type C (OTG) (Tablet)
1 x DB9 Connector for 2 x USB 2.0 Port (Docking)
|
| Serial Port |
2 x COM Port (Docking) |
| LAN |
1 x Gigabit LAN port (Docking) |
| Audio |
2 x Speaker (Docking)
1 x CANBus or 1 x Audio (Docking)
|
| SD Card Slot |
1 x Micro SD Card Slot (Tablet) |
| SIM Card Slot |
1 x Dual-Nano SIM Card Slot (Tablet) |
| Indicator |
3 x LED Indicator(WLAN, UPS battery, Heater) |
| Docking Connector |
SMA Connector (female) for external antenna WLAN |
| Environment |
|
| Operating Humidity |
5% to 95% RH, Non-Condensing |
| Operating Temperature |
-30°C to 60°C |
| Storage Temperature |
-30°C to 60°C |
| Shock |
MIL-STD-810H Method 516.8 Procedure I |
| Vibration |
MIL-STD-810H Method 514.8 Procedure I |
| IP rating |
IP65 |
| Impact |
Support EN62262 IK07 Rating |
| ESD |
Compliant with EN 61000-4-2,Enhanced ESD to ±8kV Direct & ±15kV Air |
| Certification |
|
| Certification |
CE, FCC |
| Control |
|
| Button |
1 x Power Button, 5 x Function Button
(Programmable Function Key Configured by Winset)
|
| Power |
|
| Battery |
7.6V UPS Battery (2S1P)Minimum 30 minutes |
| Power Rating |
Docking: 10V-60V with ignition controlTablet: 12V DC In |
| Security Function |
|
| SOTI MobiControl |
SOTI MobiControl Compliance |
| Accessory |
|
| Accessory |
5M Power Cable with Fuse Kit
0.3M USB Cable
0.15M Power Converter Cable
DC Jack Power Cable
84W Adapter with power cable
Cable Clamp Kit
WLAN Antenna x 2
Quick Start Guide
External Antenna Fixing Bracket
Dock + Latch Locking Key
Stylus Kit + Screw |
