If you are working in a vehicle and need a computer that can keep up with your mobile lifestyle, you know how hard it can be to find the right tool. Many computers are not made to work well in a car or truck, and they can be slow or hard to use. This can cause problems and make it harder to get your work done. The Winmate FM14AD-V is a special computer made just for vehicles. It is fast, easy to use, and has all the features you need to stay productive on the go. With its powerful Intel Core i5-1235U processor and 8GB of memory, this computer can handle any task you throw at it.

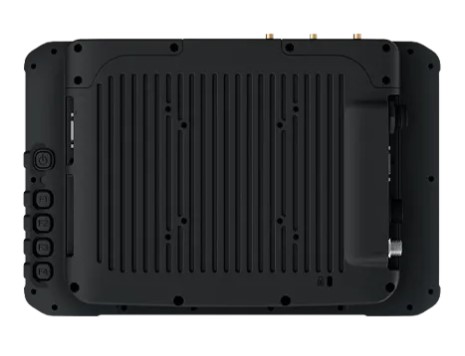

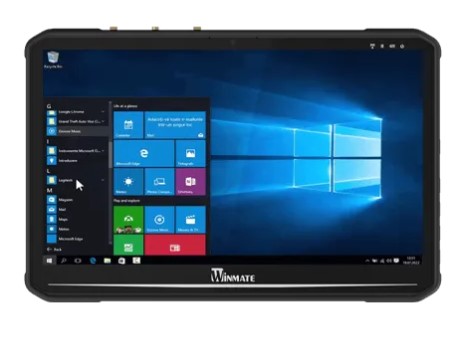

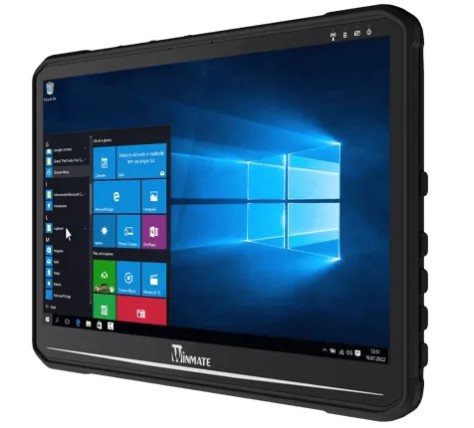

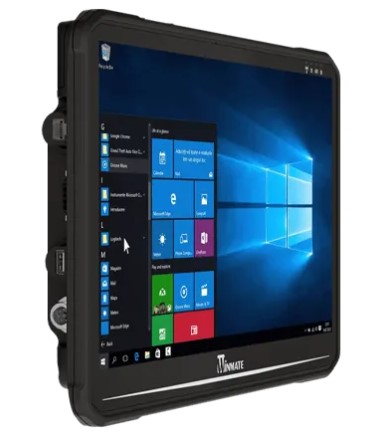

Winmate FM14AD-V, Intel Core i5-1235U, 8GB/128GB 14" Windows Vehicle Computer with Winmate
Imagine having a computer that is made just for your vehicle, with a big 14-inch screen and a powerful processor that can handle any task. The Winmate FM14AD-V is that computer. It is perfect for people who work in their vehicles, like truck drivers or police officers. It is also great for people who like to travel and need a computer that can keep up with them. With its easy-to-use interface and powerful features, this computer is the perfect tool for anyone who needs to stay productive on the go. The Winmate FM14AD-V is a great solution for anyone who needs a reliable and powerful computer for their vehicle.
Key Features
- 14-inch screen with 1920x1080 resolution
- Intel Core i5-1235U processor for fast and reliable performance
- 8GB of memory and 128GB of storage for all your files and programs
- Windows 10 IoT Enterprise operating system for easy use and navigation
- Projected Capacitive Multi Touch screen for easy interaction
- 700 nits panel brightness for clear visibility in any lighting conditions
- Support for WLAN, BT, and WWAN for staying connected on the go
- 1 x USB 3.0 Type C and 1 x USB 2.0 Port for connecting devices
- 2 x RS232/422/485 serial ports for connecting to other devices
- 1 x Gigabit LAN port for fast and reliable internet connection
Specifications
| Display |
|
| Size |
14.0 inches |
| Resolution |
1920x1080 |
| Type |
Projected Capacitive Multi Touch |
| Panel Brightness |
700.0 nits |
| Contrast Ratio |
800:1 |
| View Angles |
85,85,85,85 |
| Bonding |
Optical Bonding for Sunlight Viewability |
| System Specification |
|
| Processor |
Intel® Core™ i5-1235U 3.30 GHz (up to 4.40 GHz) |
| Memory |
8GB |
| Storage |
128GB |
| Security |
TPM 2.0 |
| Operating System |
Windows 10 IoT Enterprise LTSC (64 bit) |
| WLAN |
Support |
| BT |
Support |
| WWAN |
LTE/5G Sub 6 (Optional) |
| GNSS |
GPS/GLONASS (Optional) |
| Sensors |
G-Sensor, Light Sensor, Temp Sensor |
| Camera |
|
| Front Camera |
2MP Camera |
| Mechanical |
|
| Dimension |
342 x 225 x 52 mm |
| Weight |
2.5 kg |
| Mounting |
VESA mount |
| Cooling System |
Fanless Design |
| IO Ports |
|
| USB Port |
1 x USB 3.0 Type C1 x USB 2.0 Port |
| Serial Port |
2 x RS232/422/485 (Default RS232) |
| LAN |
1 x Gigabit LAN port |
| Audio |
1 x Audio (Mic in & Line Out) either one with DIDO (Optional) |
| SD Card Slot |
1 x Micro SD Card Slot |
| SIM Card Slot |
1 x Dual-Nano SIM Card Slot |
| Indicator |
4 x LED Indicator |
| DIDO |
1 x DIDO (2XDI ; 2XDO) either one with Audio (Optional) |
| CANBUS |
1 x CANBus (Optional) |
| Environment |
|
| Operating Humidity |
5% to 90% RH, Non-Condensing |
| Operating Temperature |
-30°C to 60°C |
| Storage Temperature |
-30°C to 60°C |
| Shock |
MIL-STD-810H Method 516.8 Procedure I |
| Vibration |
MIL-STD-810H Method 514.8 Procedure I |
| IP rating |
IP65 |
| Impact |
Support EN62262 IK07 Rating |
| ESD |
Compliant with EN 61000-4-2, enhanced ESD to ±8kV direct & ±12kV air |
| Certification |
|
| Certification |
CE, FCCFCC (Electromagnetic Emissions), IC (ICES-003)UL60950-1, EN60950-1, PTCRB |
| Control |
|
| Button |
1 x Power Button, 4 x Function Button
(Programmable Function Key Configured by Winset)
|
| Power |
|
| Battery |
2400mAh UPS Battery for 1 hour backup (Optional) |
| Power Rating |
10V~60V with ignition control |
| Security Function |
|
| SOTI MobiControl |
SOTI MobiControl Compliance |
| Accessory |
|
| Accessory |
1.8M Power Cable with Fuse Kit
0.15M Power Converter Cable
DC Jack Power Cable
150W Adapter with power cable
Quick Start Guide |
