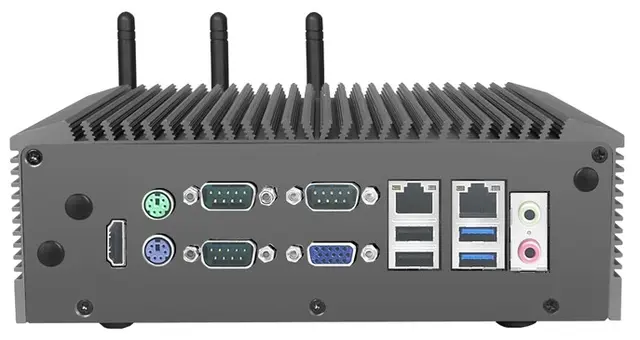

Winsonic MR-BC005-CB0M0B, Marine Grade, Aluminum Fanless Box-PC
The Winsonic MR-BC005-CB0M0B is a marine grade aluminum fanless Box-PC designed for applications that require reliable computing in demanding marine environments. Its aluminum extrusion and heavy-duty steel construction provide a durable enclosure for industrial and marine system installations.
This Box-PC supports Intel® 11th Gen. i3, i5, and i7 processors with DDR4-3200 MHz system memory and up to 64GB capacity. It uses the Intel® H510 chipset and Intel® Iris® Xe Graphics, providing a practical platform for marine computing, monitoring, and control applications.
The system supports Linux, Win10, and Win11 operating systems and provides 2xHDMI, 6xUSB3.0, 2xLAN, and 1xLine-out connectivity. Storage options include M.2 2280 or SATA SSD, while the AMI UEFI BIOS supports a watchdog timer for system monitoring applications.
Expansion capability is available through PCIe/PCI, depending on the model. Optional wireless communication support includes WiFi, BLE, 4G LTE, and 5G, allowing the system to support different connectivity requirements in marine and industrial installations.
The Winsonic MR-BC005-CB0M0B operates from 0~60℃ with a storage temperature range of -20~75℃ and 5 ~ 95%, Non-condensing humidity. Its fanless aluminum construction and flexible processor, memory, storage, and communication options make it suitable for marine-grade computing applications.
Key features
-
- Marine Grade Box PC, Housing with powder coating
- Support Comformal Coating
- Compliance IEC 60945 (Vibration/Shock/ Anti-salt spray)
- Compact Fanless Embedded Box PC
- Intel® H510 Chipset
- Intel® 11 Gen. i3, i5, i7 processors
- Intel® Tiger Lake
- Intel® Iris® Xe Graphics
- Support DDR4-3200 MHz, Max up to 64GB
- 2 x HDMI, 6 x USB 3.0, 2 x LAN, 1 x Line-out
- Standard IP66/IP67 models I/O: 1 x HDMI, 2 x USB, 1 x LAN.
- Intel I225-V GBE LAN Chip (RJ45, 10/100/1000 Mbps)
- Security support TPM 2.0 onboard IC
SPECIFICATION
| Specification |
|
| Standard Color |
Sliver Black |
| Construction |
Aluminum extrusion and heavy-duty steel |
| CPU |
Intel® 11th Gen. i3, i5, i7 |
| System Memory |
Support DDR4-3200 MHz, Max up to 64GB |
| Chipset |
Intel® H510 |
| OS Support |
Linux, Win10, Win11 |
| System / Graphic Chipset |
Intel® Iris® Xe Graphics |
| I / O port |
2xHDMI 6xUSB3.0 2xLAN 1xLine-out |
| Storage |
M.2 2280 or SATA SSD |
| Watchdog Timer |
AMI UEFI BIOS (Support Watchdog Timer) |
| Expansion Interface |
PCIe/PCI expansion availability varies by model. |
| Communication |
Wireless: WiFi, BLE, 4G LTE, 5G (Optional) |
| POWER |
|
| Operating Temperature |
0~60℃ |
| Storage Temperature |
-20~75℃ |
| Humidity |
5 ~ 95%, Non-condensing |
