Imagine a factory floor where the robot never stops, never makes a mistake, and can be re-programmed in minutes. The WITTMANN Robot control TeachBox R9 makes that vision real. It is a handheld teach pendant that lets you program, monitor and control your robot directly at the machine. Operators who struggle with slow, confusing interfaces will find this device saves time and reduces errors, keeping production running smoothly.

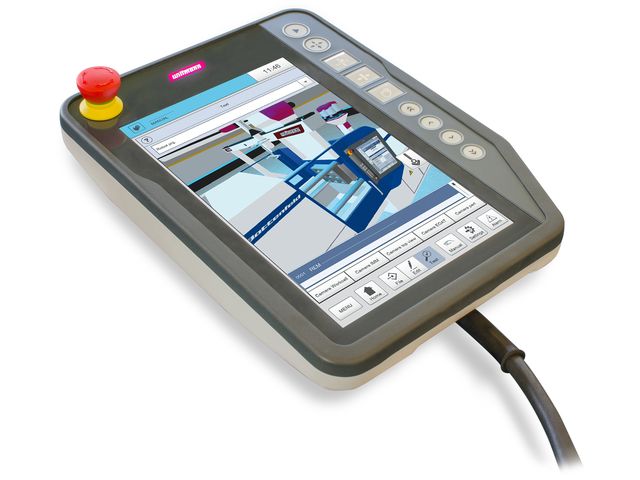

WITTMANN Robot control TeachBox R9
Many plants lose money because robot programs are written on a PC, then transferred, and finally tested on the shop floor. Each step adds delay and risk of data loss. This problem matters because downtime directly cuts profit and can upset delivery schedules. The TeachBox R9 solves it by giving you a rugged, touch-screen interface right at the robot. You can create, edit and run programs instantly, see a live 3-D animation, and monitor safety features without leaving the cell.
Usages of WITTMANN
The TeachBox R9 is perfect for injection molding cells where quick changeovers are needed. It also fits assembly lines that require precise force monitoring during part insertion. In a multi-robot work cell, the device can control several Wittmann machines at once, handling peripheral equipment such as conveyors or grippers. Maintenance crews use it to track service intervals and to run diagnostic checks without a separate computer.
Benefits
- Fast programming saves hours of setup time each shift.
- Live 3-D animation lets you see robot motion before it moves.
- Built-in safety monitoring reduces risk of collisions.
- USB and PC connectivity make data backup simple.
- Ergonomic glass display reduces operator fatigue.
Key Features
- 10.1 inch capacitive touchscreen with mechanical buttons.
- Portrait format screen with 1280 800 pixel resolution.
- Graphical UI with live 3-D robot animation.
- QuickNew Wizard, TextEditor and QuickEdit programming modes.
- Support for up to 12 servo axes.
- OPC-UA interface for easy integration with other devices.
- ACD collision monitoring and force monitoring during insertion.
- Automatic maintenance interval tracking.
- USB port for program export and PC storage.
- ControlRoom function to manage auxiliary equipment.
- Hardened glass display with gesture operation and angled design.
- Option to add a second TeachBox for the same cell.
Specifications
| Product Name |
Robot Control TeachBox R9 |
| Manufacturer |
WITTMANN Group (Austria) |
| Product Type |
Robot Teach Pendant / TeachBox (Human Machine Interface) |
| Control System |
R9 Robot Control |
| Display Type |
Capacitive touchscreen with mechanical buttons |
| Screen Size |
10.1 inch |
| Resolution |
1280 × 800 pixels |
| Display Format |
Portrait format |
| User Interface |
Graphical user interface with live 3D animation |
| Programming Methods |
QuickNew Wizard, TextEditor, QuickEdit |
| Programming Interface |
TeachBox interface transferable to PC |
| Operating Platform |
Windows-based TeachBox interface |
| Servo Axes Support |
Up to 12 servo axes |
| Input Controls |
Tactile feedback buttons and touch control |
| Data Storage |
Internal storage, USB export, PC storage |
| USB Interface |
Yes |
| Communication |
OPC-UA interface support |
| Peripheral Control |
ControlRoom function for auxiliary equipment |
| Safety Feature |
ACD collision monitoring |
| Force Monitoring |
Standard force monitoring during insertion and removal |
| Maintenance Monitoring |
Automatic maintenance interval monitoring |
| Integration |
Injection molding machine (IMM) integration via TeachBox |
| Additional Option |
Second TeachBox for same application |
| Connectivity |
Control of multiple Wittmann devices in a work cell |
| Ergonomics |
Hardened glass display, gesture operation, angled design |
| Function |
Robot programming and control of automation/peripheral systems |
