Imagine a meeting room where every voice is crystal clear and every face stays in focus, no matter how many people join. The Yealink MeetingBar A30-020, Video collaboration bar, Android 10, Black is a compact all-in-one device that turns a medium-size room into a high-quality video-conference hub. Many teams struggle with blurry video, echo, or complicated setups that waste time. This bar solves those problems with smart cameras, AI-driven audio, and simple plug-and-play connections, so you can focus on the conversation, not the technology.

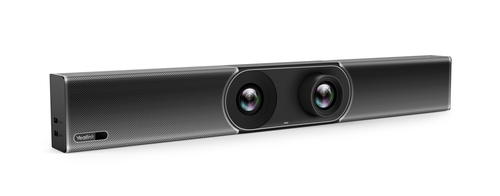

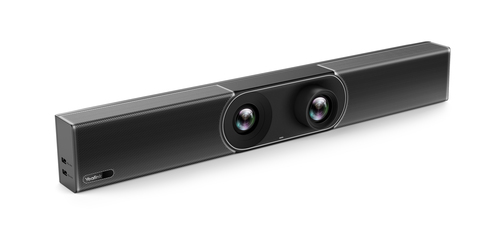

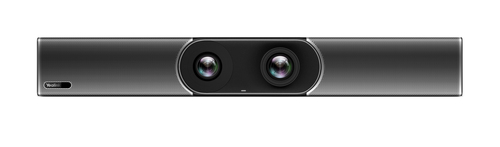

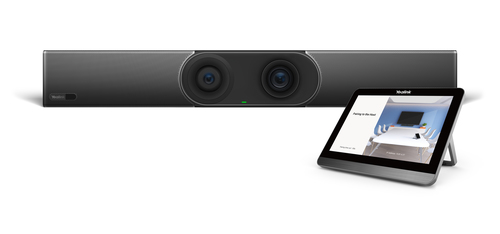

Yealink MeetingBar A30-020, Video collaboration bar, Android 10, Black
The main issue in many offices is poor video quality that makes meetings feel disjointed. When participants cannot see details or hear each other, decisions are delayed and frustration grows. This bar addresses the issue by delivering sharp dual-camera views, auto framing, and speaker tracking, while its eight-mic array and AI noise cancellation keep audio clean. The result is a seamless, professional experience that feels like everyone is in the same room.
Key Features
- Dual 8 MP cameras with 90 and 120 fields of view.
- Auto framing and picture-in-picture for dynamic video layout.
- Eight-MEMS beamforming microphones with AI-enhanced noise cancellation.
- Full-duplex audio system for simultaneous speaking.
- Android 10 OS with Qualcomm Snapdragon 845 processor.
- Bluetooth and Wi-Fi connectivity for wireless peripherals.
- HDMI input and two HDMI outputs for external displays.
- USB-C and USB-A ports for accessories and content sharing.
- Secure networking with 256-bit AES encryption and VLAN support.
- Power over AC 100-240 V, idle consumption 13 W, typical 10.5 W.
- CE, FCC, RoHS certified for global compliance.
Specifications
| Performance |
| PTZ control |
Yes |
| Meeting features |
Add participates, Calendar, Content sharing, Hold/Resume, One-click join, Whiteboard |
| Auto framing |
Yes |
| Product colour |
Black |
| Bluetooth |
Yes |
| Product type |
Video collaboration bar |
| Video |
| Video codecs |
H.264 High profile, H.264 SVC, H.264 |
| Audio |
| Echo cancellation |
Yes |
| RMS rated power |
5 W |
| Audio system full duplex |
Yes |
| Number of speakers |
1 |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
| Line-in |
Yes |
| Line-out |
Yes |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
2 |
| USB connector type |
USB Type-A, USB Type-C |
| HDMI input ports quantity |
1 |
| HDMI output ports quantity |
2 |
| Network |
| Security algorithms |
256-bit AES, EAP-MD5, EAP-TTLS, PEAP, SRTP, TLS |
| VLAN support |
Yes |
| Networking standards |
IEEE 802.1x |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Camera |
| Field of view (tele) |
90° |
| Field of view (wide) |
120° |
| Second camera resolution |
8 MP |
| Camera type |
Dual camera |
| Megapixel (approx.) |
8 MP |
| Display |
| Touchscreen |
Yes |
| Display resolution |
1280 x 800 pixels |
| Display diagonal |
20.3 cm (8") |
| Microphone |
| Number of microphone arrays |
8 |
| Microphone mute |
Yes |
| Computer system |
| Operating system installed |
Android 10 |
| Processor model |
845 |
| Processor family |
Qualcomm Snapdragon |
| Features |
| Cable lock slot |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
| Power |
| Power consumption (idle) |
13 W |
| Power consumption (typical) |
10.5 W |
| DC output current |
0.7 A |
| DC output voltage |
48 V |
| AC input voltage |
100 - 240 V |
| Power source type |
AC |
| Certificates |
| Certification |
CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM |
| Weight & dimensions |
| Weight |
7.05 kg |
| Height |
121 mm |
| Depth |
98 mm |
| Width |
700 mm |
| Packaging data |
| Package weight |
8.13 kg |
| Package height |
796 mm |
| Package depth |
212 mm |
| Package width |
434 mm |
| Packaging content |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| HDMI cable length |
1.8 m |
| Networking cable length |
3 m |
| Cables included |
HDMI, LAN (RJ-45) |
