Tired of choppy video calls and hard-to-use conference rooms? The YEALINK MVC S90-C5U-004, 11.6" Touchscreen, Teams Rooms System is a complete solution that turns any space into a smooth, professional meeting hub. It lets you start a Teams meeting with a tap, share screens instantly, and keep every participant visible. If your current setup drops calls or forces you to juggle cables, this kit removes the hassle and lets you focus on the conversation.

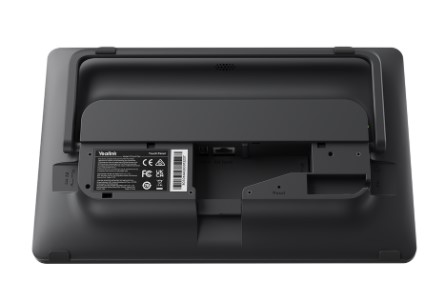

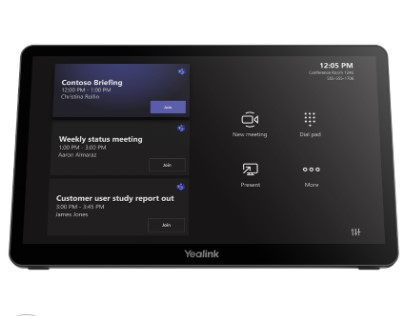

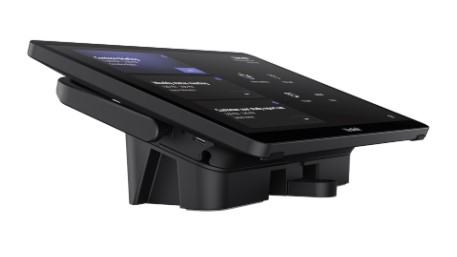

YEALINK MVC S90-C5U-004, 11.6" Touchscreen, Teams Rooms System
Many small and medium offices struggle with unreliable video conferencing gear that needs many separate devices. The problem is wasted time, missed details, and frustrated teams. This matters because every minute lost in a meeting is a minute lost in productivity. The YEALINK system bundles a touch panel, cameras, audio, and a hub into one easy-to-install package, giving you a single button to launch Teams, crystal-clear video, and secure connectivity.
Key Features
- 11.6-inch IPS touchscreen with 1920 1080 resolution.
- Two UVC86 PTZ cameras with 4K video, 1.7 digital zoom, and auto-framing.
- Speaker and presenter tracking for dynamic meeting flow.
- Security lock slot and TPM 2.0 for hardware encryption.
- Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for fast wireless connections.
- Gigabit Ethernet port for reliable wired networking.
- Three HDMI outputs and four USB 3.0 ports for external displays and peripherals.

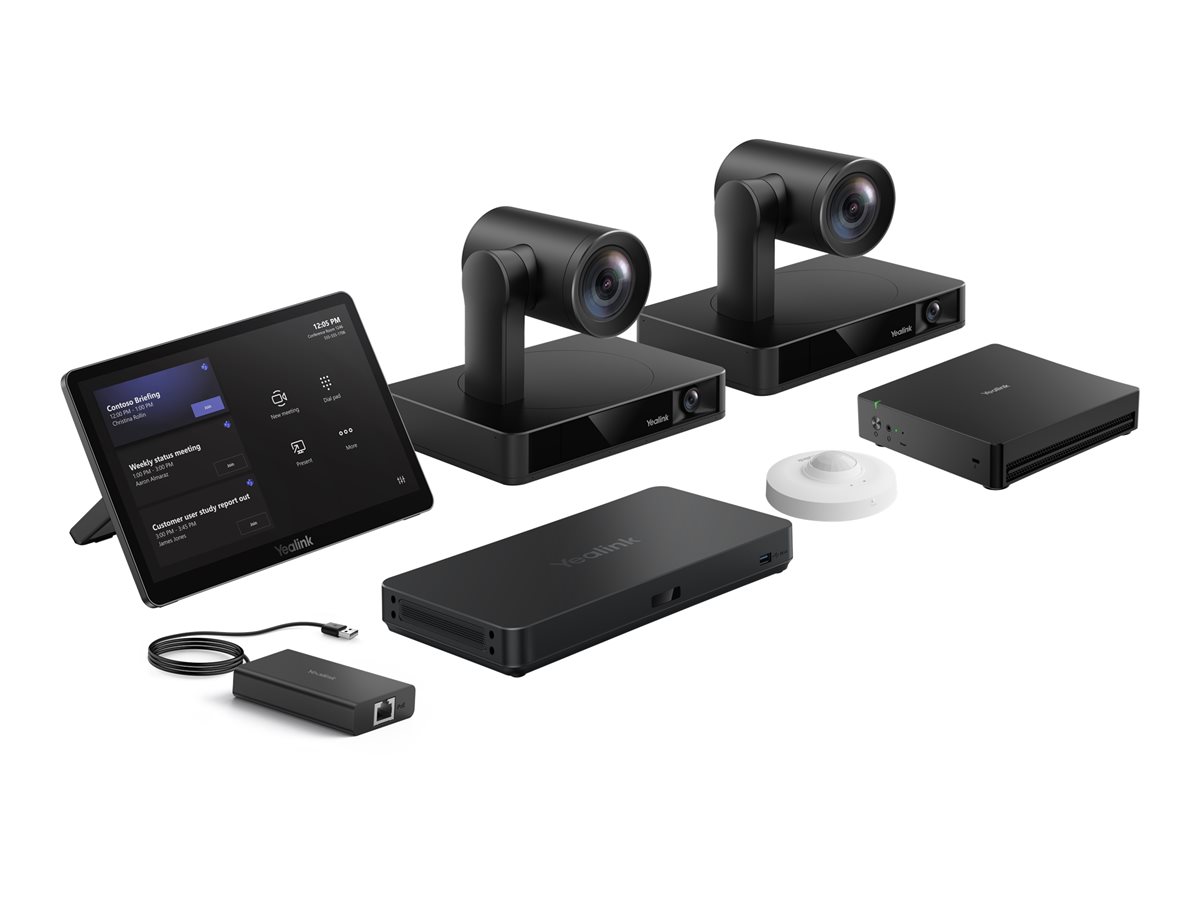

- AVHub, MTouch Plus panel, RoomSensor, MVC-BYOD extender, and MCore 4 included.
- Power supplied by an external adapter for easy placement.
- Operating temperature range 32 F - 104 F and humidity 10 % - 95 %.
Specifications
| Miscellaneous |
|
| Color Category |
Black |
| Networking |
|
| Connectivity Technology |
Wireless, wired |
| Features |
DMA Coalescing (DMAC), Trusted Platform Module 2.0 (TPM 2.0) |
| Type |
Network adapter |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Video Input |
|
| Video Modes |
4K |
| Digital Zoom |
1.7 |
| Type |
Digital video camera |
| Features |
Security lock slot (cable lock sold separately), auto-framing, speaker tracking, presenter tracking, gesture control, PIP support, multi-focus framing |
| System |
|
| Conferencing System Type |
Video conferencing kit |
| Header |
|
| Model |
MVC S90-C5U |
| Product Line |
Yealink MVC Series |
| Packaged Quantity |
1 |
| Environmental Parameters |
|
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
10 - 95% |
| Input Device |
|
| Type |
11.6" touchscreen |
| Connectivity Technology |
Wireless, wired |
| Features |
Security lock slot, IPS screen, 1920 x 1080 resolution |
| General |
|
| Device Type |
Video conferencing kit |
| Kit Content |
AVHub, MTouch Plus touch panel, RoomSensor, 2 x UVC86 USB PTZ camera, MVC-BYOD-Extender, MCore 4 |
| Expansion / Connectivity |
|
| Interfaces |
3 x audio / video - HDMI output - 19 pin HDMI Type A, 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45, 4 x SuperSpeed USB 3.0 - 9 pin USB Type A, 1 x Yealink Mtouch port - RJ-45 |
| Power |
|
| Power Device |
Power adapter - external |
