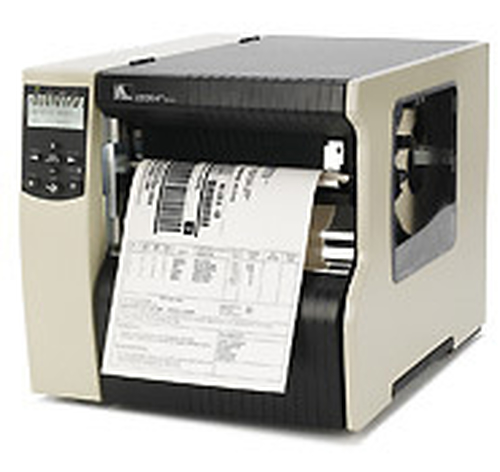

Designed to produce large labels up to 8.5” (216 mm) wide at 10” (254 mm) per second at 203 dpi and 6" per second at 300 dpi (152 mm) resolution, the 220Xi4 is ideal for industrial applications—chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.
In addition, the Xi4 provides the following new features:
- LCD content customizable to user needs
- Large, easy to use, multilingual LCD screen
- Flexible connectivity including simultaneous parallel/Ethernet with internal Ethernet included as standard in the product
- Advanced ribbon- and media-low LCD/e-mail alerts
- Intelligent printhead system
Benefits
- Faster Ethernet performance with Internal ZebraNet 10/100 PrintServer - included standard
- Handles everything from paper to specialty label/tag stocks
- Satisfies high-volume label requirements
- Offers a wide range of connectivity solutions
Standard Features
- Print methods: Thermal transfer or direct thermal
- Construction: 12-gauge steel frame
- Single 32 bit 133 Mhz RISC processor
- 16 MB SDRAM; 8 MB non-volatile Flash memory
- Automatic media/ribbon sensing capability
- Improved head test for element out
- Auto calibration
- Clear media side door for ease of supplies monitoring
- 300 unique darkness settings
- RS-232, Parallel ports
- USB 2.0 port
- Internal ZebraNet 10/100 PrintServer
- ZPL or ZPL II Programming Language
- XML enabled printing
- Mirror feature allows user-defined printer configurations to be retrieved from the network
- Create and design customizable printer LCD menus
- Large (240W x 128H pixels), multilingual, backlit, graphical LCD display
- Transmissive and reflective media sensors
- Multi-level Element Energy Equalizer (E3) for superior print quality
- Unicode™ - Compliant
- Intelligent printhead
Specifications
| Printing |
| Maximum resolution |
300 x 300 DPI |
| Paper handling |
| Core diameter |
2.54 cm |
| Maximum media length |
3.81 m |
| Maximum media length (imperial) |
150" |
| Maximum roll diameter |
8.13 cm |
| Media thickness |
0.076 - 0.305 mm |
| Media thickness (imperial) |
0.003 - 0.012" |
| Supported paper width |
216 mm |
| Supported paper width (imperial) |
8.5" |
| Ribbon length |
300 m |
| Ports & interfaces |
| Standard interfaces |
USB 2.0 |
| RS-232 ports |
1 |
| Parallel ports quantity |
1 |
| Connectivity technology |
Wired |
| Performance |
| Certification |
- BSMI - cTUVus - CCC - CE - C-Tick - EN55022 Class B - EN55024 - EN61000-3-2,3
- FCC Class B - GOST-R - ICES-003 Class B - IEC 60950-1 / EN60950 - KCC - NOM - S Mark
- STB - UkrSEPRO - VCCI - ZIK
|
| Built-in barcodes |
Code 39, Code 49, Code 93, MaxiCode, PDF417, Postnet, QR Code, UPC-A, UPC-E |
| Flash memory |
8 MB |
| Internal memory |
16 MB |
| Page description languages |
XML, ZPL II |
| Power |
| Power requirements |
90 - 264 VAC, 48 - 62 Hz |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-40 - 60 °C, -40 - 140 °F |
| Storage temperature (T-T) |
-40 - 60 °C, -40 - 140 °F |
| Storage relative humidity (H-H) |
5 - 85% |
| Operating relative humidity (H-H) |
20 - 85% |
| Weight & dimensions |
| Weight |
32.7 kg |
| Other features |
| Weight (imperial) |
32.7 kg (72 lbs) |
| Dimensions (WxDxH) |
401.6 x 517.5 x 393.7 mm |
| Maximum resolution |
300 x 300 DPI |
