Dispatch Time: Next Working Day
Product Code: SCNR-082
MPN #: DS3608-ER20003VZWW

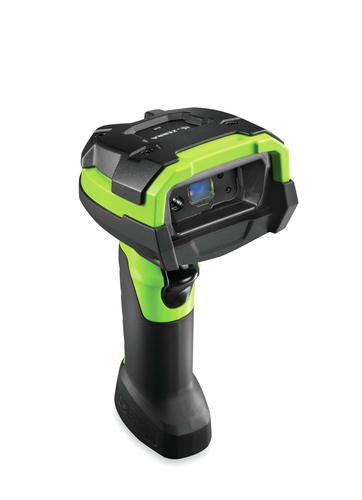

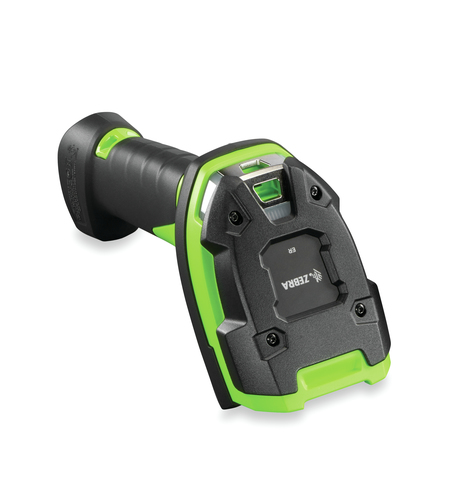

Tired of missed scans and slow checkout lines? The Zebra DS3608-ER 1D/2D 655 nm 1280 pixels Wired Laser Handheld Barcode Scanner is built to end that frustration. It reads every barcode, near or far, even on dirty or damaged labels. If your warehouse or store loses time because scanners fail, you need a device that never quits. It connects by cable, so you get reliable power and instant data transfer.
Many businesses struggle with scanners that cannot read barcodes from a distance or in harsh conditions. When a scanner misses a code, workers have to walk back, re-aim, or even replace the label, which slows down order fulfillment and raises error rates. This hurts productivity and can disappoint customers. The Zebra DS3608-ER solves that problem by delivering ultra-ranged laser scanning up to 70 feet and by handling 1D and 2D symbols on any surface. Its rugged design meets IP67 standards, so dust, water and drops do not stop it. With a wired connection you get steady power and fast data flow, keeping your line moving without interruption.
| Scanning | |
| Optical sensor resolution | 1280 pixels |
| Yaw reading angle | -45 - 45° |
| Pitch reading angle | -65 - 65° |
| Tilt reading angle | -65 - 65° |
| Wavelength | 655 nm |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| Sensor type | Laser |
| Scanner type | 1D/2D |
| Type | Handheld bar code reader |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Connectivity technology | Wired |
| Performance | |
| Programming function | Yes |
| LED indicators | Yes |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| International Protection (IP) code | IP67 |
| Product colour | Black, Green |
| Power | |
| Number of reads per charge | 70000 |
| Battery capacity | 3100 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power source type | Battery |
| Weight & dimensions | |
| Weight | 334 g |
| Height | 185 mm |
| Depth | 76 mm |
| Width | 132 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Battery | |
| Battery capacity | 3100 mAh |
| Technical details | |
| Compliance certificates | RoHS |
