Tired of scanners that miss marks on rough parts or stop working after a few drops? The Zebra DS3678-DP 1D/2D 655 nm Laser Wired & Wireless Handheld Barcode Scanner is built for tough factories and warehouses. It reads every 1D and 2D code, even direct part marks etched on metal, so you never lose a traceable item again.

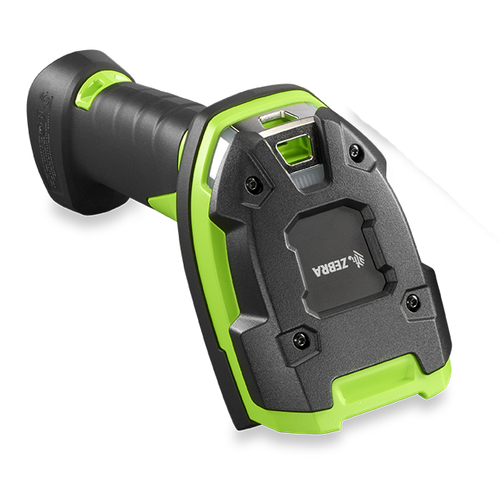

Zebra DS3678-DP 1D/2D 655 nm Laser Wired & Wireless Handheld Barcode Scanner - SCNR-080
In a busy production line a missed scan can halt the whole process and cost time and money. This scanner solves that problem by capturing any barcode or direct part mark no matter the size, surface or contrast. The result is a smooth flow, accurate data and fewer interruptions for you and your team.
Key Features
- 1280-pixel laser sensor for high-resolution reads.
- 655 nm wavelength optimized for industrial marks.
- Supports all major 1D codes (UPC, Code 128, GS1-128, etc.).
- Supports 2D codes including QR, Data Matrix, PDF417 and Aztec.
- Ethernet LAN, USB, RS-232 and keyboard wedge interfaces.
- Bluetooth Low Energy 4.0 with 100 m wireless range.
- IP67 dust-tight and waterproof cradle for cordless use.
- LED status lights for quick scan feedback.
- Programmable function keys for custom workflows.
Specifications
| Scanning |
| Optical sensor resolution |
1280 pixels |
| Yaw reading angle |
-45 - 45° |
| Pitch reading angle |
-65 - 65° |
| Tilt reading angle |
-65 - 65° |
| Wavelength |
655 nm |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417,
PDF417, QR Code, TLC-39
|
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| Sensor type |
Laser |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Ethernet LAN |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
4.0 |
| Wireless range |
100 m |
| Standard interfaces |
RS-232, USB, Keyboard wedge |
| Connectivity technology |
Wired & Wireless |
| Performance |
| Programming function |
Yes |
| LED indicators |
Yes |
| Protection features |
Dust resistant, Shock resistant, Water resistant |
| International Protection (IP) code |
IP67 |
| Product colour |
Black, Green |
| Power |
| Number of reads per charge |
100000 |
| Battery capacity |
3100 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
| Weight |
402 g |
| Height |
185 mm |
| Depth |
77 mm |
| Width |
143 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Battery |
| Battery capacity |
3100 mAh |
| Technical details |
| Compliance certificates |
RoHS |
| Sustainability certificates |
RoHS |
