Product Code: SCNR-078

MPN #: DS3678-ER2F003VZWW

In busy warehouses and factories, workers often have to scan barcodes that are far away, covered in dust, or printed on damaged labels. When a scanner cannot read these codes, the whole workflow slows down and mistakes increase, hurting productivity and customer service. The Zebra DS3678-ER, 1D/2D Laser, 655 nm Wired & Wireless Handheld barcode Scanner solves this by reading any 1D or 2D barcode from a few centimeters up to 70 ft, even in harsh conditions, so you keep the line moving.

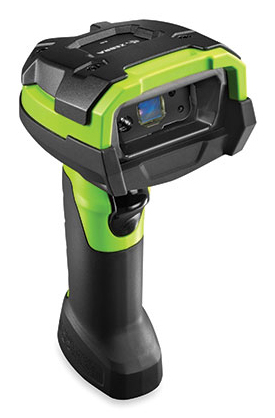

Zebra DS3678-ER, 1D/2D Laser, 655 nm Wired & Wireless Handheld barcode Scanner with Zebra - SCNR-078

Imagine a scanner that never quits, whether you are on a pallet rack or on the shop floor. This Zebra device is a rugged, handheld reader that works wired or wirelessly, giving you the freedom to move and the reliability to capture every code. If you have struggled with missed reads, short battery life, or a scanner that cannot survive a drop, this model removes those frustrations and lets you focus on getting the job done.





Key Features
    • 1280-pixel laser sensor captures tiny and damaged barcodes.
    • Supports all major 1D and 2D formats, including QR, Data Matrix, and PDF417.
    • Dual connectivity: USB, RS-232, Keyboard wedge, Ethernet LAN, and Bluetooth 4.0.
    • Dust-tight, spray-proof, and waterproof design (IP67) for tough environments.
    • LED indicators give instant feedback on scan success.
    • Programmable functions let you tailor the scanner to your workflow.
    • Lightweight at 436 g, easy to hold for long shifts.
    • Comes with a sealed cradle (IP65) for secure cordless charging.



Specifications
Scanning
Optical sensor resolution 1280 pixels
Yaw reading angle -45 - 45°
Pitch reading angle -65 - 65°
Tilt reading angle -65 - 65°
Wavelength 655 nm
2D (matrix & stacked) barcodes supported

Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417,

PDF417, QR Code, TLC-39

Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
Sensor type Laser
Scanner type 1D/2D
Type Handheld bar code reader
Ports & interfaces
Ethernet LAN Yes
Bluetooth Low Energy (BLE) Yes
Bluetooth version 4.0
Wireless range 100 m
Standard interfaces RS-232, USB, Keyboard wedge
Connectivity technology Wired & Wireless
Performance
Programming function Yes
LED indicators Yes
Protection features Dust resistant, Shock resistant, Water resistant
International Protection (IP) code IP67
Product colour Black, Green
Power
Number of reads per charge 70000
Battery capacity 3100 mAh
Battery technology Lithium-Ion (Li-Ion)
Power source type Battery
Weight & dimensions
Weight 436 g
Height 185 mm
Depth 76 mm
Width 142 mm
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -20 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Battery
Battery capacity 3100 mAh
Technical details
Compliance certificates RoHS
