In busy warehouses and factories, workers often have to scan damaged, dirty or hard-to-reach barcodes. When a scan fails, the whole workflow slows down and errors increase. This hurts productivity and can lead to costly mistakes. The Zebra DS3678-HP handheld barcode reader solves the problem by delivering fast, accurate reads even in the harshest conditions, keeping your line moving without interruption.

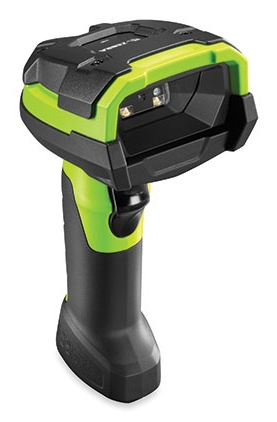

Zebra DS3678-HP, 1D/2D Laser 655nm Handheld barcode Reader with Zebra - SCNR-086
Never miss a scan, even when the environment is rough. This handheld scanner captures every 1D and 2D code, photos, and documents from up to 7 ft away. It is built for warehouses, manufacturing floors, and any place where dust, water or drops are common. If your workers need a reliable tool that reads every label quickly, this Zebra device is the answer.
Key Features
- Laser sensor with 1280-pixel resolution.
- Read range up to 7 ft (2.1 m) for distant tags.
- Supports all major 1D and 2D symbologies.
- IP67 dust-tight and waterproof design.
- Bluetooth Low Energy 4.0 with 100 m wireless range.
- Wired options: RS-232, USB, keyboard wedge.
- LED indicators for scan status.
- Remote configuration and firmware updates.
- 3100 mAh Li-Ion battery for long shifts.
- Lightweight at 411 g for comfortable handheld use.
Specifications
| Scanning |
| Optical sensor resolution |
1280 pixels |
| Yaw reading angle |
-45 - 45° |
| Pitch reading angle |
-65 - 65° |
| Tilt reading angle |
-65 - 65° |
| Wavelength |
655 nm |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417,
PDF417, QR Code, TLC-39
|
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| Sensor type |
Laser |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Ethernet LAN |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
4.0 |
| Wireless range |
100 m |
| Standard interfaces |
RS-232, USB, Keyboard wedge |
| Connectivity technology |
Wired & Wireless |
| Performance |
| Programming function |
Yes |
| LED indicators |
Yes |
| Protection features |
Dust resistant, Shock resistant, Water resistant |
| International Protection (IP) code |
IP67 |
| Product colour |
Black, Green |
| Power |
| Number of reads per charge |
100000 |
| Battery capacity |
3100 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
| Weight |
411 g |
| Height |
185 mm |
| Depth |
76 mm |
| Width |
142 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Battery |
| Battery capacity |
3100 mAh |
| Technical details |
| Compliance certificates |
RoHS |
