Imagine a checkout line that never slows down because a scanner can read every barcode, even the tiny ones on jewelry or the faded codes on a drivers license. The Zebra DS4608-HD 1D/2D LED Imager 1280 x 800 pixels Handheld Barcode Scanner is built for that need. It helps stores keep lines short, reduces errors, and lets you capture data from almost any item you sell. If you struggle with missed scans or slow transactions, this scanner is the tool you need.

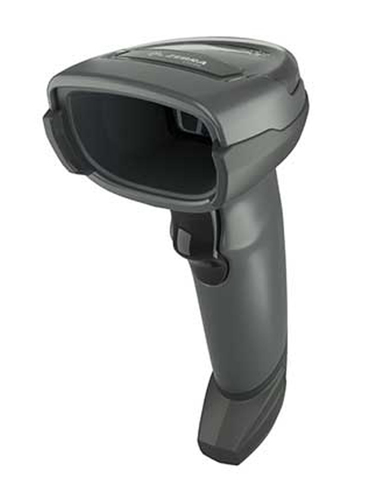

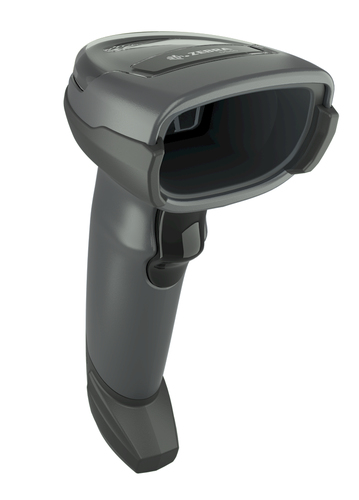

Zebra DS4608-HD 1D/2D LED Imager 1280 x 800 pixels Handheld Barcode Scanner - SCNR-089
Retail workers often waste time trying to read damaged or small barcodes. That delay adds up and frustrates customers. The problem matters because every second of waiting can cost a sale. This Zebra scanner solves the issue with a 28-inch scan range, high-resolution sensor, and intelligent imaging that captures data instantly, even on tough codes. The result is faster checkouts, fewer returns, and happier shoppers.
Key Features
- LED imager with 1280 800 pixel resolution.
- Supports a wide range of 1D barcodes such as Code 128, GS1 DataBar, and Code 39.
- Supports many 2D codes including QR, Data Matrix, PDF417, and Aztec.
- Pitch reading angle of -60 to +60 for flexible positioning.
- Wavelength of 660 nm for bright, reliable scanning.
- Wired RS-232 and USB interfaces for easy integration.
- IP52 rating protects against dust and light splashes.
- Lightweight at 161.9 g, comfortable for long use.
- Operating temperature from 0 C to 50 C and humidity up to 95 %.
- Power consumption of 340 mA with 4.5-5.5 V input.
Specifications
| Scanning |
| Pitch reading angle |
-60 - 60° |
| Wavelength |
660 nm |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code,
MicroPDF417, PDF417, QR Code, TLC-39
|
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, Industrial 2 of 5, MSI,
Plessey
|
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Standard interfaces |
RS-232, USB |
| Connectivity technology |
Wired |
| Performance |
| Certification |
2011/65/EU, EN 50581:2012, EN IEC 63000:2018 UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07.
EN 60950-1:2006/A2:2013 IEC 60950-1:2005/A2:2013 IEC 62368-1 (ed.2); EN 62368-1:2014
IEC 62471:2006 (Ed.1.0); EN 62471:2008 FCC: 47 CFR 15, B, B ICES-003 6, B, EN 55032, B, EN 55024,
EN 55035, EN 60601-1-2:2015, IEC 60601-1-2:2014
|
| LED indicators |
Yes |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
| Power consumption |
340 mA |
| Input voltage |
4.5-5.5 V |
| Power source type |
DC |
| Weight & dimensions |
| Weight |
161.9 g |
| Height |
165 mm |
| Depth |
98 mm |
| Width |
67 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
