Many stores and warehouses lose time because scanners miss codes or read them slowly. When a scan fails, workers have to re-aim the reader, customers wait longer, and errors can slip into inventory records. This hurts sales, raises labor costs, and creates frustration for staff and shoppers alike. The Zebra DS8178-HC (DS8178-HCBU210MP5W) handheld bar code reader fixes the issue by delivering fast, reliable reads of both 1D and 2D codes, even on damaged or low-contrast labels. It lets you move through checkout or picking tasks without pauses, keeping your operation smooth and accurate.

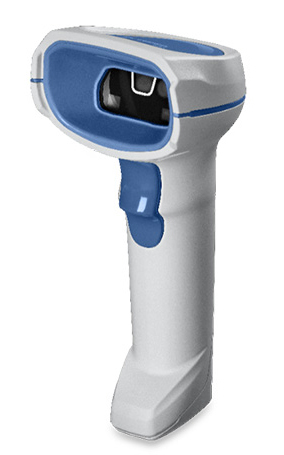

Zebra DS8178-HC (DS8178-HCBU210MP5W), 1D/2D, LED 528 nm Handheld bar code reader with Zebra
Imagine a scanner that never hesitates, no matter the angle or lighting. The Zebra DS8178-HC is a compact, hand-held device that reads every barcode you need - from simple UPCs to complex QR and Data Matrix symbols. It is built for busy environments where a missed scan means a line of customers or a delay in order fulfillment. With Bluetooth Low Energy and wired options, you can connect it to a PC, POS system, or mobile terminal instantly. This reader gives you the speed and confidence you need to keep work flowing.
Key Features
- LED 528 nm sensor for bright, consistent illumination.
- Supports 1D barcodes such as UPC, Code 128, Code 39 and more.
- Supports 2D codes including QR, Data Matrix, PDF417, Aztec, and Micro QR.
- Yaw, pitch and tilt reading angles up to 60 for flexible aiming.
- 360 tilt rotation for scanning from any direction.
- Bluetooth 4.0 Low Energy and RS-232/USB wired connections.
- IP42 rating protects against splashes and dust in busy environments.
- Built-in 2500 mAh Li-Ion battery with up to 65 000 reads per charge.
- Operating temperature range 0 C to 50 C for indoor and semi-outdoor use.
- Compact dimensions (168 mm 107 mm 66 mm) fit easily in a hand.
Specifications
| Scanning |
| Yaw reading angle |
0 - 60° |
| Pitch reading angle |
0 - 60° |
| Tilt reading angle |
0 - 360° |
| Wavelength |
528 nm |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| PC connection |
RS-232/USB |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
4.0 |
| Wireless range |
100 m |
| Standard interfaces |
RS-232, USB, Keyboard wedge |
| Connectivity technology |
Wired & Wireless |
| Performance |
| International Protection (IP) code |
IP42 |
| Product colour |
White |
| Power |
| Input voltage |
5 V |
| Battery life |
83 h |
| Number of reads per charge |
65000 |
| Battery capacity |
2500 mAh |
| Number of batteries supported |
1 |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
| Weight |
235 g |
| Height |
168 mm |
| Depth |
107 mm |
| Width |
66 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Battery |
| Battery capacity |
2500 mAh |
