In busy stores or warehouses a missed scan can cause long lines, lost inventory and unhappy customers. The problem gets worse when barcodes are damaged, printed poorly, or placed on a screen. You need a scanner that reads every code quickly, no matter the condition, so work keeps moving and errors stay low. The Zebra DS8178 handheld barcode reader solves this by delivering fast, reliable 1D and 2D scans at a distance of up to 61 cm.

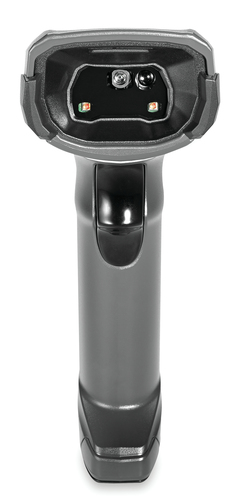

Zebra DS8178(DS8178-SR7U2100PFW) 1D/2D Photo diode 61 cm Handheld barcode reader with Zebra
Never let a missed scan slow you down. This device is a handheld imager that reads every 1D and 2D barcode, even the faint ones on smartphones. It is built for checkout counters, inventory rooms and field work. If you struggle with slow or inaccurate scanners, this Zebra model gives you the speed and accuracy you need to keep customers happy and staff productive.
Key Features
- 1280-pixel photo-diode sensor for high-resolution capture.
- 0-60 yaw and pitch angles plus 0-360 tilt for flexible scanning.
- Supports all major 1D codes such as Code 128, Code 39 and GS1-128.
- Supports 2D codes including QR, Data Matrix, PDF417 and Aztec.
- IP42 rating protects against dust and light splashes.
- 2500 mAh Li-Ion battery provides up to 83 hours of continuous use.
- Wireless range up to 100 m for remote data collection.
- RS-232, USB and Bluetooth interfaces for easy integration.
- Operating temperature from 0 C to 50 C for most indoor environments.
- Compact dimensions (168 mm 107 mm 66 mm) fit comfortably in hand.
Specifications
| Scanning |
| Optical sensor resolution |
1280 pixels |
| Yaw reading angle |
0 - 60° |
| Pitch reading angle |
0 - 60° |
| Tilt reading angle |
0 - 360° |
| Wavelength |
617 nm |
| Working distance |
61 cm |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code,
MicroPDF417, PDF417, QR Code, Small Aztec Code, TLC-39
|
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 128A, Code 128B, Code 128C,
Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey
|
| Sensor type |
Photo diode |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| PC connection |
RS-232/USB |
| Bluetooth version |
4.0 |
| Wireless range |
100 m |
| Standard interfaces |
USB, RS-232, Bluetooth |
| Connectivity technology |
Wired & Wireless |
| Performance |
| International Protection (IP) code |
IP42 |
| Product colour |
Black |
| Power |
| Battery life |
83 h |
| Battery capacity |
2500 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
| Weight |
235.3 g |
| Height |
168 mm |
| Depth |
107 mm |
| Width |
66 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Battery |
| Battery capacity |
2500 mAh |
