Tired of handheld scanners that freeze, lose data, or break after a few drops? The Zebra TC22 6" 6GB, 64GB, Wireless LAN and Wi-Fi Connectivity Mobile Computer is built to keep your workflow moving, even in the toughest environments. It combines a bright screen, fast Android OS, and rugged design so you can scan, capture, and transmit information without missing a beat.

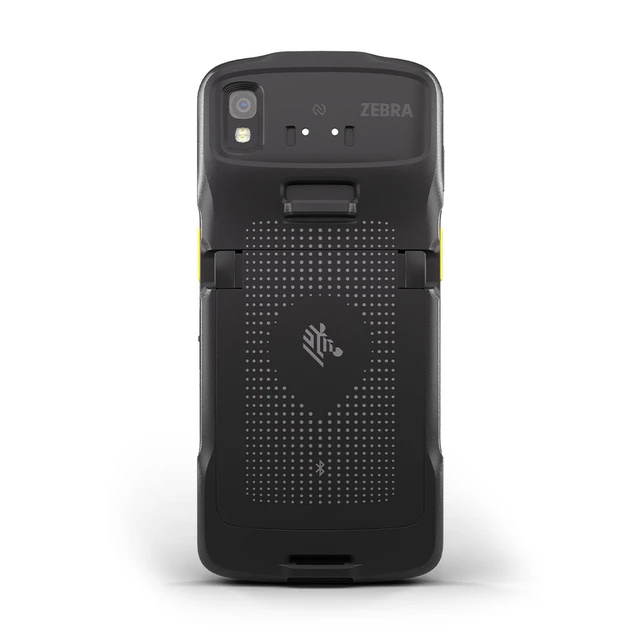

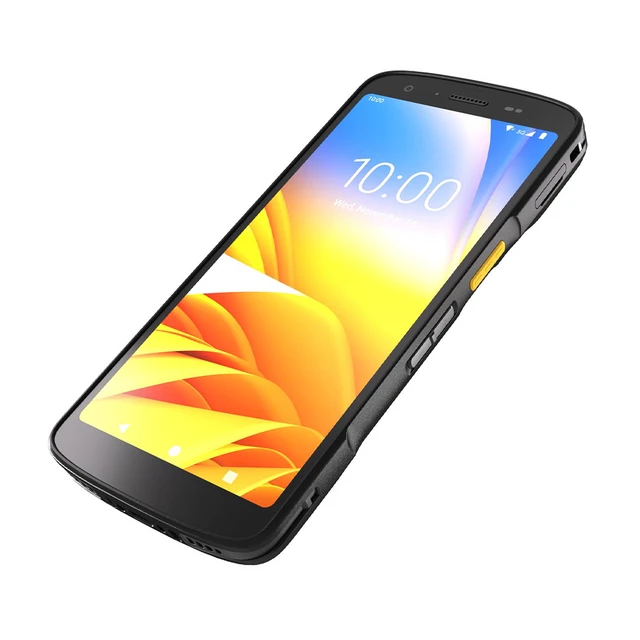

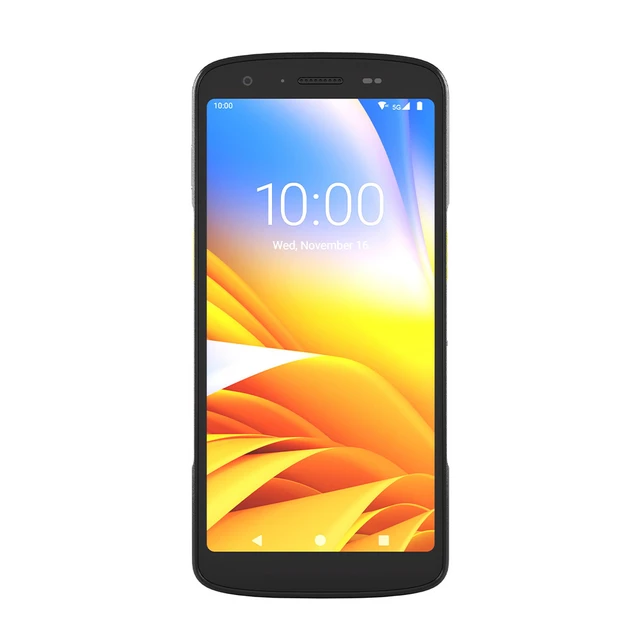

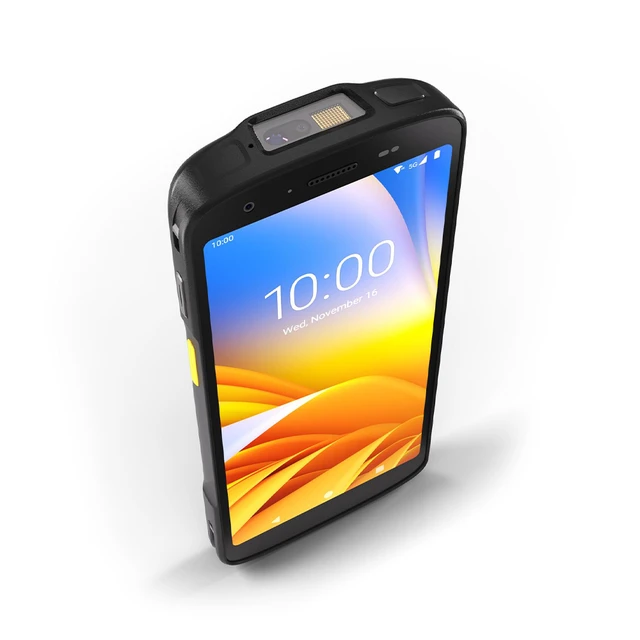

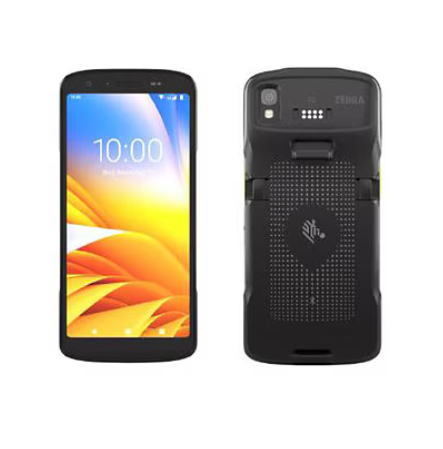

Zebra TC22 6" WLAN Mobile Computer, 6GB, 64GB, 5200 mAh Extended Battery
Workers in warehouses, delivery fleets, and field service often struggle with devices that cannot handle dust, drops, or weak signals. When a scanner dies, orders are delayed and errors increase. This rugged Android terminal solves those problems by offering IP68 water resistance, a 6.5-inch Gorilla Glass display, and built-in 5G, Wi-Fi, and Bluetooth for reliable connectivity. You get a single device that scans barcodes, takes photos, and runs business apps, so you can finish tasks faster and with fewer interruptions.
Key Features
- TC22/TC27 boasts 6”, 32% larger display, 10% thinner, tougher IP68 compared to TC21/TC26
- Offers a choice of standard SE4710 or advanced range SE55 scan engines.
- Ensures future proofing with Wi-Fi 6E, 5G, CBRS (US band only), Qualcomm 5430 2.1 GHz Multi-Core Processor
- Brings unique value-adds: Workstation Connect, mobile payment, and mobile/hybrid POS, Apple VAS + Google Smart Tap for ticketing/membership cards, and RFID capability (eConnex +RFD40 or RFD90)
- Get a built-in advantage with no-cost Mobility DNA Professional or maximize device functionality, workforce productivity and user experience with the optional Mobility DNA Enterprise license.
Note: It is North America version with 5200 mAh extended battery.
Specifications
| Brand |
Zebra |
| Product Line |
Zebra |
| Model |
TC22 |
| Manufacturer |
Zebra Technologies |
| Processor Brand |
Qualcomm |
| Processor Number |
5430 |
| Clock Speed |
2.1 GHz |
| Cores |
6-core |
| Flash Memory Installed |
64 GB |
| Flash Memory Cards Supported |
microSD |
| Max Flash Memory Cards Supported |
2 TB |
| Memory Card Slot |
microSD slot |
| RAM Installed |
6 GB |
| Cellular Data Connectivity Technology |
4G LTE, 5G, UMTS |
| Mobile Broadband Access |
5G |
| Wireless Connectivity |
Bluetooth 5.2, IEEE 802.11a/b/g/n/ac/ax, NFC |
| Security Protocols & Features |
AES, EAP-AKA, EAP-GTC, EAP-PWD, EAP-TLS, EAP-TTLS, GCMP, IPv4 support, IPv6 support, LEAP, MS-CHAP, MS-CHAPv2, PAP, PEAPv0, PEAPv1, TKIP, WEP, WPA-Enterprise, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-OWE, WPA3-SAE |
| Expansion Slots |
1 x microSD |
| Interface Provided |
1 x 2 pin connector, 1 x USB-C 3.1 |
| Barcode Reader |
Yes |
| Scan Element Type |
2D imager |
| Display |
6.5 inch, 1080 x 2160, color |
| Display Brightness |
450 NIT |
| Display Protection |
Corning Gorilla Glass |
| Multi-touch Screen |
Yes |
| Touchscreen |
Yes |
| Display Backlight Technology |
LED backlight |
| Audio Input Type |
Microphone |
| Audio Output |
Two speakers |
| Rear Camera |
Yes |
| Rear Camera Resolution |
16 Megapixel |
| Sensor Resolution |
5 Megapixel |
| Battery Capacity |
5200 mAh |
| Battery Chemistry |
Lithium ion |
| Operating System |
Android |
| Input Device Type |
Touchscreen |
| Max Operating Temperature |
122 °F |
| Min Operating Temperature |
14 °F |
| Max Storage Temperature |
158 °F |
| Min Storage Temperature |
-40 °F |
| Operating Humidity |
5 - 95% (non-condensing) |
| RFID Compliant Standards |
Felica, ISO 14443A, ISO 14443B, ISO 15693 |
| Rugged |
Yes |
| Sensor Type |
3-axis accelerometer, Ambient light sensor, Magnetometer, Proximity sensor |
| Vibration Alert |
Yes |
| Features |
2x2 MiMo function, Capacitive touch screen, ESD protection up to 15 kV (air), ESD protection up to 8 kV (direct), ESD protection up to 8 kV (indirect), Interactive Sensor Technology (IST), Over-the-Air (OTA), Push-to-talk speaker, SE4710 imager |
| GPS |
GPS/GLONASS/Galileo/BeiDou/QZSS receiver |
| PDA Software Type |
Google Mobile Services |
| USB Host |
Yes |
| Product Type |
Data collection terminal |
| Service Activation |
Yes |
| Packaged Quantity |
1 |
| Height |
6.5 inch |
| Width |
3 inch |
| Depth |
0.5 inch |
| Color Category |
Black |
| Compliant Standards |
2015/863, Bluetooth Class 2, IP65, IP68, MIL-STD-810H, REACH SVHC 1097/2006, RoHS, ROHS Directive 2011/65/EU |
| ENERGY STAR Certified |
No |
| EPEAT Compliant |
No |
| TCO Certified |
No |
