Tired of label printers that jam, print slowly, or break after a few months? The Zebra ZD230 (ZD23042-31EC00EZ), 203x203 DPI, 152mm/sec Thermal transfer Printer is built for businesses that need fast, reliable tags every day. It prints barcodes, receipts, and shipping labels with crisp quality, so you never lose a sale because of a bad print.

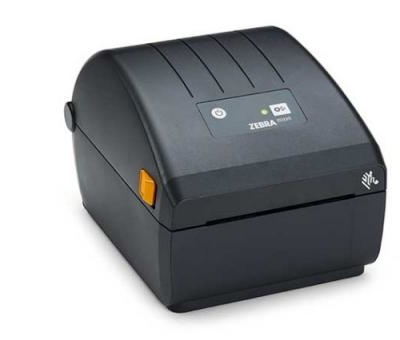

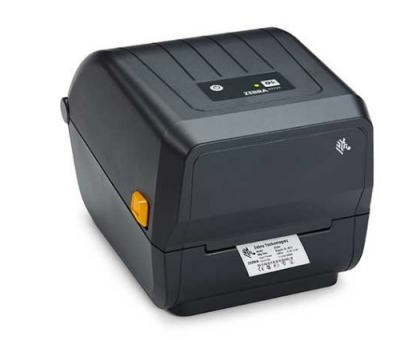

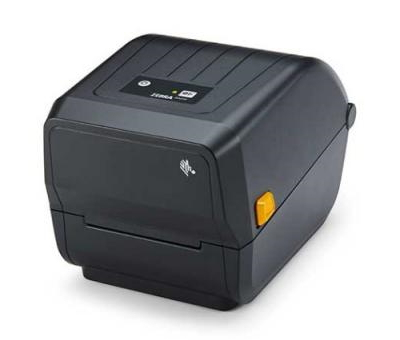

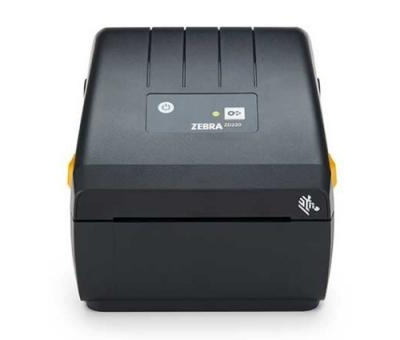

Zebra ZD230 (ZD23042-31EC00EZ), 203x203 DPI, 152mm/sec Thermal transfer Printer
Small shops and large warehouses both face the same problem - slow printers cause line backs and wrong labels cause costly re-work. When a printer cannot keep up, workers waste time fixing errors instead of serving customers. The ZD230 solves this by printing up to 152 mm per second and storing more fonts and graphics in its memory. Its dual-wall design and Ethernet port keep it running day after day without interruption.
Key Features
- Print speed 152 mm/sec (up to 6 inches per second).
- Resolution 203 x 203 DPI for clear, sharp images.
- Thermal transfer technology for durable, long-lasting prints.
- Ethernet LAN port for reliable wired networking.
- USB 2.0 port for quick local connections.
- 256 MB flash memory and 128 MB internal memory for fonts and graphics.
- Supports 23 built-in fonts and a full range of 1D and 2D barcodes.
- Maximum label width 11.2 cm and length 99 cm.
- 300 m ribbon capacity reduces media changes.
- ENERGY STAR qualified to lower power costs.
Specifications
| Printing |
| Maximum printing width |
10.4 cm |
| Print speed |
152 mm/sec |
| Maximum resolution |
203 x 203 DPI |
| Colour |
No |
| Print technology |
Thermal transfer |
| Paper handling |
| Core diameter |
1.27 cm |
| Maximum label length |
0.991 m |
| Maximum label width |
11.2 cm |
| Maximum roll diameter |
12.7 cm |
| Media thickness |
0.08 - 0.1905 mm |
| Supported paper width |
25.4 - 112 mm |
| Ribbon length |
300 m |
| Ribbon width |
10.9 cm |
| Ports & interfaces |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired |
| Performance |
| Certification |
IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B,
ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311,
cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
|
| Number of fonts |
23 |
| Built-in barcodes |
1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39,
Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5,
MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
|
| Flash memory |
256 MB |
| Internal memory |
128 MB |
| Page description languages |
EZPL, XML, ZPL II |
| Design |
| Display |
No |
| Built-in display |
No |
| Product colour |
Black |
| Power |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Operational conditions |
| Operating temperature (T-T) |
4.4 - 41 °C |
| Operating temperature (T-T) |
4.4 - 41 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
| Weight |
1.1 kg |
| Height |
191 mm |
| Depth |
267 mm |
| Width |
197 mm |
| Packaging content |
| Cables included |
AC |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Other features |
| Maximum resolution |
203 x 203 DPI |
