Imagine a busy hospital ward where every patient needs a wristband that is clear, safe and ready in seconds. The Zebra ZD510-HC, 300 x 300 DPI, 102 mm/sec, Direct thermal Printer does exactly that. It prints high-quality wristbands fast, so you never waste time waiting for labels. If you have struggled with blurry prints, broken printers or hard-to-clean machines, this printer solves those problems and keeps patient safety high.

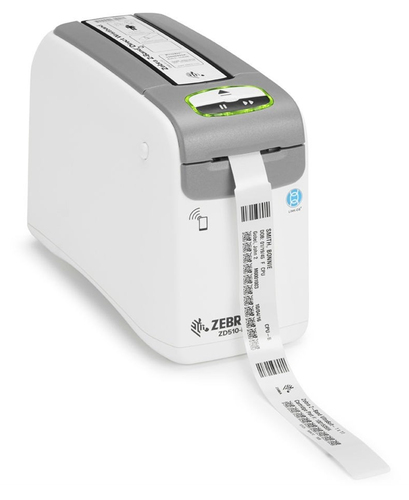

Zebra ZD510-HC, 300 x 300 DPI, 102 mm/sec, Direct thermal Printer
The main issue in healthcare printing is unreliable wristband output that can cause identification errors. When a wristband is unreadable, staff may waste time and patients may be at risk. This printer removes the guesswork. It automatically detects the cartridge size, sets the right darkness and speed, and prints crisp barcodes at 300 dpi. The UV-resistant housing lets you clean with strong disinfectants without damage. With wired and wireless options, it fits into any network and keeps your workflow smooth.
Benefits
- Fast 102 mm/sec printing reduces patient wait time.
- Antimicrobial-coated Z-Band wristbands stay clean even after sanitizer use.
- Automatic cartridge detection means virtually no training needed.
- Durable prints survive harsh cleaning and UV light.
- Multiple connectivity choices let you link the printer to any system.
Key Features
- Direct thermal printing technology.
- 300 x 300 dpi resolution for sharp barcodes.
- Print speed of 102 mm per second.
- Minimum print length 7.6 cm, max width 3.02 cm.
- USB 2.0 (2 ports), Ethernet LAN, Bluetooth, optional Wi-LAN.
- UV-resistant housing for regular disinfecting.
- Supports ZBI, ZPL and ZPL II languages.
- Built-in barcode set includes QR, Data Matrix, Code-128 and more.
- Weight only 1.4 kg, compact footprint for tight spaces.
- Energy-Star certified for lower power use.
Specifications
| Printing |
| Minimum print length |
7.6 cm |
| Maximum printing width |
3.02 cm |
| Print speed |
102 mm/sec |
| Print speed |
102 mm/sec |
| Print speed |
102 mm/sec |
| Maximum resolution |
300 x 300 DPI |
| Colour |
No |
| Print technology |
Direct thermal |
| Ports & interfaces |
| Optional connectivity |
Wireless LAN |
| USB 2.0 ports quantity |
2 |
| USB port |
Yes |
| Bluetooth |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired & Wireless |
| Performance |
| Certification |
FCC Part 15, Subpart B, VCCI, RCM CE: EN 55032:2012 B, EN 55024:2010,
EN 61000-3-2, EN 61000-3-3, CISPR 32:2015 CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTL IEC 60601-1:2012
|
| Built-in barcodes |
Logmars, Plessey, MSI, EAN14, AZTECCODE, CODABAR (NW-7), Code 11,
Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar Limited, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
|
| Page description languages |
ZBI, ZPL, ZPL II |
| Design |
| Display |
No |
| Built-in display |
No |
| Product colour |
White |
| Power |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Operational conditions |
| Operating temperature (T-T) |
4.4 - 40 °C |
| Operating temperature (T-T) |
4.4 - 40 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Storage relative humidity (H-H) |
5 - 85% |
| Operating relative humidity (H-H) |
20 - 85% |
| Weight & dimensions |
| Weight |
1.4 kg |
| Height |
178 mm |
| Depth |
242 mm |
| Width |
127 mm |
| Packaging data |
| Package type |
Box |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Other features |
| Maximum resolution |
300 x 300 DPI |
