Tired of waiting for a desk printer to print tags while your line moves on? The Zebra ZQ630R Plus ZQ63-RUXAE14-00 Mobile Label printer puts fast, reliable printing right in your hand. It creates barcode labels, RFID tags and receipts wherever you need them, so you never lose momentum on the shop floor, in a warehouse, or at a field site. If missed or wrong labels are costing you time, this compact printer is the tool you need.

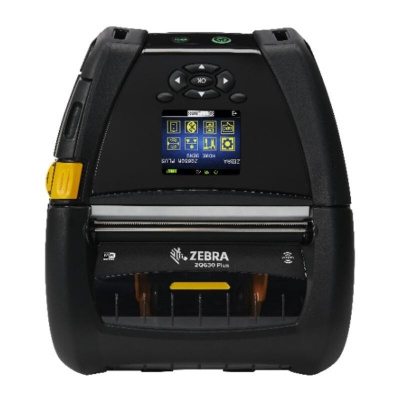

Zebra ZQ630R Plus ZQ63-RUXAE14-00 Mobile Label printer, 8 dots/mm (203 dpi)
The biggest problem for mobile workers is not having a printer that can keep up with fast-moving tasks. When you cannot print a label at the point of use, you end up with manual workarounds, inventory errors and unhappy customers. Zebra solves this by delivering a rugged, battery-powered printer that prints up to 115 mm per second at 203 dpi. The built-in Wi-Fi, Bluetooth 5.3 and NFC let you connect instantly, while the RFID capability writes data directly onto tags, removing the need for a separate encoder.
Usages of Zebra
You can use this printer on a warehouse picking cart to label pallets as they are loaded, on a delivery van to print shipping tags right before departure, or in a retail store to create price stickers on the sales floor. Field technicians appreciate the ability to print service tags on site, and event organizers rely on it for fast badge creation. The small size and 1.1 kg weight let you carry it all day without fatigue.
Benefits
- Print instantly at the point of need, so you never stop work waiting for a label.
- Battery lasts for a full shift, eliminating downtime for charging.
- Wireless options let you connect from any device, making integration simple.
- RFID writing adds data security and faster scans for inventory control.
- Rugged design survives drops and dust, keeping performance steady in tough environments.
Key Features
- Direct thermal printing with 203 dpi resolution.
- Up to 115 mm / sec print speed for high-volume jobs.
- Supports rolls up to 11.2 cm wide and custom lengths to 813 mm.
- Built-in label taken sensor, black-mark and gap sensors for accurate media handling.
- 400 MHz processor with 256 MB RAM and 512 MB flash for fast job processing.
- USB, RS232C, Wi-Fi (ax), Bluetooth 5.3 and NFC connectivity.
- RFID antenna for encoding tags in the same pass as printing.
- 288 240 pixel color display for easy menu navigation.
- Compatible with ZPL, EPL, CPCL, XML and other printer languages.
- 1-year manufacturer warranty for peace of mind.
Specifications
| Product Description |
Zebra ZQ600 Series ZQ630 Plus RFID - label printer - B/W - direct thermal |
| Printer Type |
Label printer - direct thermal - B/W |
| Form Factor |
Portable |
| Weight |
1.1 kg |
| Max Media Size |
Roll (11.2 cm) |
| Min Media Size (Custom) |
51 mm x 12.7 mm |
| Max Media Size (Custom) |
112 mm x 813 mm |
| Print Speed |
Up to 115 mm/sec - max speed |
| Max Resolution (B&W) |
203 dpi |
| Interface |
USB, NFC, RS232C, Wi-Fi(ax), Bluetooth 5.3 |
| Processor |
400 MHz |
| RAM Installed (Max) |
256 MB |
| Flash Memory Installed (Max) |
512 MB |
| Language Simulation |
ZPL, EPL, Comtec Printer Control Language (CPCL), ZBI 2.x, Extensible Mark-up Language (XML) |
| Barcodes |
Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode,
Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5,
Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey, EAN-8, EAN-13, MSI, RSS
|
| Media Type |
Die cut labels, receipt paper, RFID labels, black mark labels, tag labels, continuous labels |
| Fonts |
CG Triumvirate Bold Condensed, English fonts |
| Features |
Label Taken Sensor (LTS), linerless, Black Mark sensor, gap sensor |
| Display Resolution |
288 x 240 |
| Networking |
Print server |
| Printer Features |
XML-enabled printing |
| Battery |
Lithium ion Included Qty 1 |
| Manufacturer Warranty |
1-year warranty |
| Dimensions (WxDxH) |
16.5 cm x 18.7 cm x 8.25 cm |
