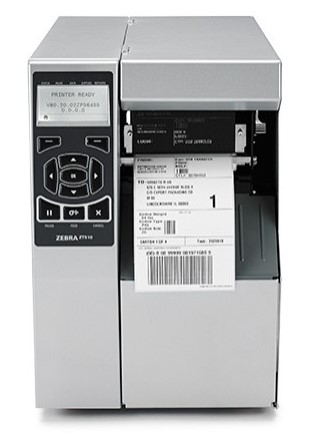

TAKING THE 105SL PLUS TO A NEW LEVEL WITH EXPANDED PERFORMANCE AND VALUE
Building on the legacy of the industry-leading, 105SLPlus printer, the ZT510 includes the core features you need in an industrial printer at a cost-effective price point. The ZT510 provides a proven, durable design and construction while adding advanced management and monitoring capabilities. That means you get 24/7 reliability to keep your operations running smoothly today, plus longevity and advanced functionality to power through every challenge in the years to come — all at an exceptional value.
EXCEPTIONAL PERFORMANCE IN THE HARSHEST CONDITIONS
Boost your productivity with printers that just won’t quit. The ZT510 builds on the legacy of its industry-leading predecessor, the 105SLPlus. Durable steel structural components can withstand years of abuse in extreme temperatures, dust, debris and other challenging industrial conditions, and meticulously engineered printing mechanisms provide 24/7 reliability to meet your high-volume production needs.
OPERATIONAL VISIBILITY, REMOTE MANAGEMENT AND FUTURE-READY ADAPTABILITY
Zebra’s cloud-accessible Link-OS software platform and managed services offerings give you total visibility and control over your printing systems, whether you’re onsite or across the globe. Plus, with two available communication slots, field-installable media-handling options and optional USB Host for plug-and-play integration, it’s easy to stay ahead of your evolving business and technology needs, whatever they may be.
A VALUE THAT WON'T BREAK YOUR BUDGET
For cost-conscious decision makers, the ZT510 offers next-generation print performance at an exceptional value. It provides high-duty cycle, rugged reliability, fast processing, advanced Link-OS capabilities and all the basic features you need — without the added cost of those you don’t.
Specifications
| Printing |
| Maximum printing width |
11.4 cm |
| Print speed |
305 mm/sec |
| Maximum resolution |
300 x 300 DPI |
| Colour |
No |
| Print technology |
Thermal transfer |
| Paper handling |
| Maximum roll diameter |
20.3 cm |
| Media thickness |
0.076 x 0.305 mm |
| Ribbon length |
450 m |
| Ribbon width |
11 cm |
| Ports & interfaces |
| RS-232 ports |
1 |
| Parallel ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Bluetooth |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Performance |
| Certification |
EC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 cTUVus, CE Marking,
FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN Metro
|
| Cutter |
Yes |
| Built-in barcodes |
Code 11, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, MaxiCode,
QR Code, TLC39, UPC-A, UPC-E
|
| Flash memory |
2048 MB |
| Internal memory |
512 MB |
| Design |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Grey |
| Power |
| AC input frequency |
47 - 63 Hz |
| AC input voltage |
90 - 265 V |
| Power consumption (printing) |
250 W |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-30 - 60 °C |
| Storage temperature (T-T) |
-30 - 60 °C |
| Storage relative humidity (H-H) |
20 - 85% |
| Operating relative humidity (H-H) |
20 - 85% |
| Weight & dimensions |
| Weight |
22.7 kg |
| Height |
395.7 mm |
| Depth |
512.3 mm |
| Width |
268.2 mm |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Other features |
| Maximum resolution |
300 x 300 DPI |
