Tired of printers that jam, fade, or stop working when you need them most? The Zebra ZT62063-T0E01C0Z Thermal transfer, 300 x 300 DPI, Black/Grey Printer is built for tough industrial jobs and delivers clear, durable labels every time. If you run a warehouse, a manufacturing line, or a shipping department, you need a printer that can handle high volume without slowing you down. This Zebra model gives you that reliability.

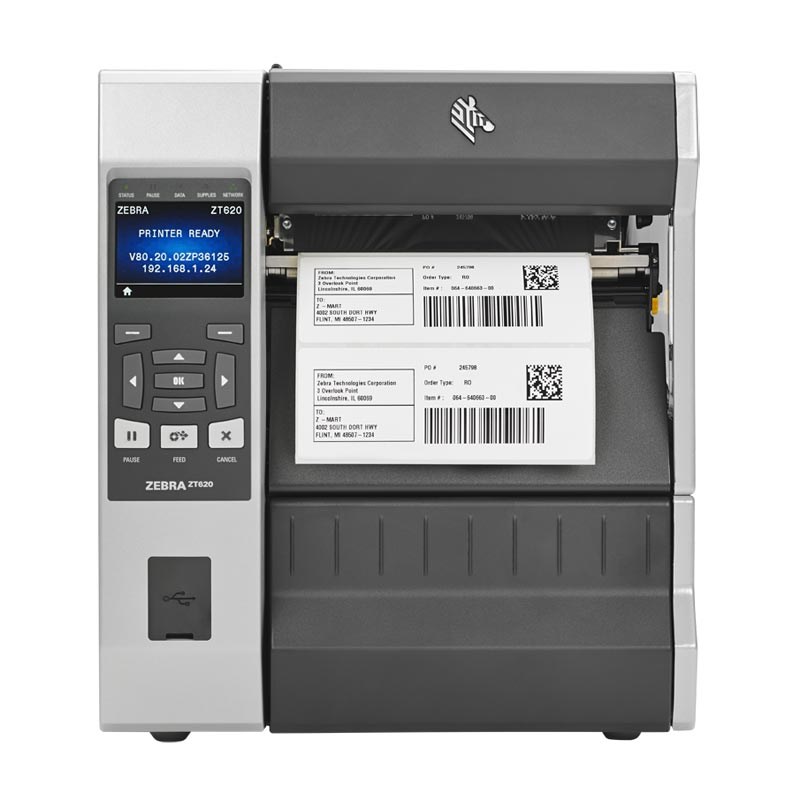

Zebra ZT62063-T0E01C0Z Thermal transfer, 300 x 300 DPI, Black/Grey Printer
Many businesses struggle with printers that cannot print on thick media or that lose quality on long runs. Poor label quality can cause mis-picks, shipping errors, and costly re-prints. The ZT62063 solves this by offering a rugged steel body, 300 300 dpi thermal-transfer technology, and a powerful 800 MHz processor. It prints sharp barcodes and graphics on rolls up to 20 cm in diameter, keeping your line moving and your data accurate.
Key Features
- Thermal transfer printing at 300 x 300 dpi.
- Maximum media width 16.8 cm, roll diameter 20.3 cm.
- Supports media thickness from 0.058 mm to 0.25 mm.
- Three USB 2.0 ports and one RS-232 port.
- Bluetooth 4.0 for wireless label jobs.
- Ethernet LAN for networked environments.
- 10.9 cm color LCD with navigation keys.
- 800 MHz processor and 2 GB flash memory.
- Built-in 1D and 2D barcode libraries.
- Plug-and-play setup with side-load media path.
- Industrial steel housing for extreme temperatures.
- Energy-Star certified for lower power use.
Specifications
| Printing |
| Rotated printing |
Yes |
| Vertical printing |
Yes |
| Maximum printing width |
16.8 cm |
| Maximum resolution |
300 x 300 DPI |
| Print technology |
Thermal transfer |
| Paper handling |
| Core diameter |
7.62 cm |
| Maximum roll diameter |
20.3 cm |
| Media thickness |
0.058 - 0.25 mm |
| Ribbon length |
450 m |
| Ribbon width |
17.4 cm |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
3 |
| USB port |
Yes |
| Bluetooth version |
4.0 |
| Bluetooth |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired & Wireless |
| Performance |
| Processor frequency |
800 MHz |
| Number of fonts |
16 |
| Built-in processor |
Yes |
| Built-in barcodes |
1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93,
Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417,
PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
|
| Flash memory |
2048 MB |
| Internal memory |
1024 MB |
| Page description languages |
ZPL, ZPL II |
| Design |
| Housing material |
Metal |
| Colour display |
Yes |
| Display diagonal |
10.9 cm (4.3") |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Black, Grey |
| Power |
| AC input frequency |
47 - 63 Hz |
| AC input voltage |
90 - 265 V |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-30 - 60 °C |
| Storage temperature (T-T) |
-30 - 60 °C |
| Storage relative humidity (H-H) |
20 - 85% |
| Operating relative humidity (H-H) |
20 - 85% |
| Weight & dimensions |
| Weight |
26 kg |
| Height |
395.7 mm |
| Depth |
505 mm |
| Width |
341.4 mm |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Other features |
| Plug and Play |
Yes |
| Maximum resolution |
300 x 300 DPI |
| Navigation key |
Yes |
