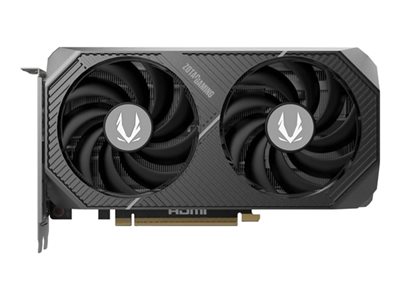

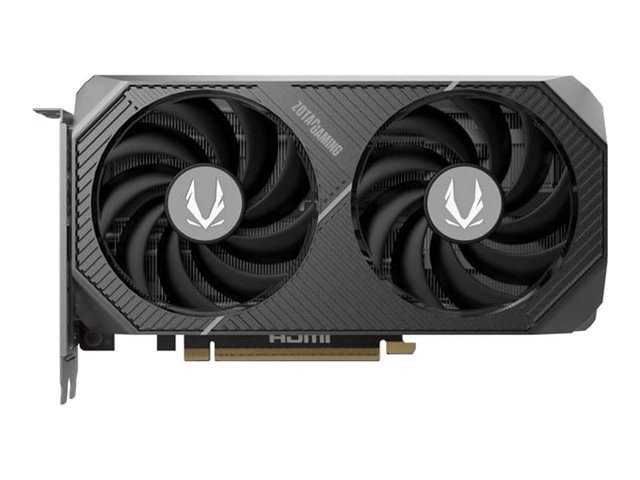

The ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a solid cooling solution, the Twin Edge is ready to take on the latest title releases with smooth framerates and performance.
Specifications
| Processor |
| Maximum displays per videocard |
4 |
| Parallel processing technology support |
Not supported |
| Processor boost clock speed |
2572 MHz |
| CUDA cores |
4608 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 5060 Ti |
| Graphics processor family |
NVIDIA |
| Memory |
| Data transfer rate |
28 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR7 |
| Discrete graphics card memory |
8 GB |
| Ports & interfaces |
| DisplayPort version |
2.1b |
| Mini DisplayPorts quantity |
0 |
| HDMI version |
2.1b |
| Mini HDMI ports quantity |
0 |
| Thunderbolt 3 ports quantity |
0 |
| DVI-D ports quantity |
0 |
| DVI-I ports quantity |
0 |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express x8 5.0 |
| Performance |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
| Product colour |
Black |
| SFF ready |
Yes |
| Number of slots |
2 |
| Form factor |
Full-Height/Half-Length (FH/HL) |
| Fan diameter |
9 cm |
| Number of fans |
2 fan(s) |
| Cooling technology |
Zotac IceStorm 2.0 |
| Cooling type |
Active |
| Power |
| Power consumption (max) |
180 W |
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
600 W |
| System requirements |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Weight & dimensions |
| Height |
120.2 mm |
| Depth |
41.6 mm |
| Length |
220.5 mm |
| Packaging data |
| Package type |
Box |
| Package height |
283 mm |
| Package depth |
83 mm |
| Package width |
218 mm |
| Packaging content |
| Manual |
Yes |
