ZTE ZXA10 C610 1U Pizza Box Optical Line Terminal (OLT) Supports 16 PON Access

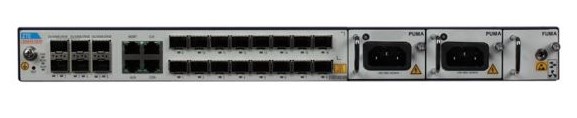

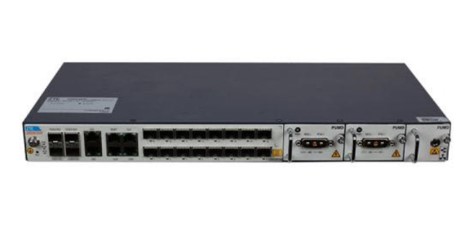

The ZTE ZXA10 C610 is a compact 1U Pizza Box Optical Line Terminal designed to provide efficient GPON access in fiber networks. It supports up to 16 GPON ports per shelf and combines subscriber access, optical uplink, management, and synchronization interfaces in a space-efficient chassis.
The ZXA10 C610 features a four-slot shelf configuration with one slot for switch control and GPON ports, two slots for power cards, and one slot for the fan. Its system throughput reaches 160 Gbps, providing capacity for GPON access deployments.
For network aggregation, the ZTE ZXA10 C610 provides six 10GE/GE optical uplinks per shelf, with the uplink type configurable into two groups. It also includes a 120Ω 2MBits/2Mhz clock and 1PPS+ToD input/output interface, along with out-of-band management and RS232 serial interfaces.
The GPON interface complies with ITU G.984.x and supports up to a 1:128 optical split ratio. The platform provides OLS, Type B optical link protection, FEC, and AES-128 encryption for GPON access applications.
The ZXA10 C610 also provides L2 networking functions including MAC filtering, ACL, VLAN, flexible QinQ, MAC management, STP/RSTP/MSTP, LACP, and trunking. It operates from -40°C to 65°C with 5% to 95% non-condensing humidity and has a compact 43.6 mm × 442 mm × 220 mm chassis.
Key features
- 1U Pizza Box Optical Line Terminal
-
Supports up to 16 GPON ports per shelf
-
160 Gbps system throughput
-
6 × 10GE/GE optical uplinks per shelf
-
Supports up to 1:128 optical split ratio
-
ITU G.984.x compliant GPON
-
Supports OLS, Type B protection, FEC, and AES-128 encryption
-
Operating temperature from -40°C to 65°C
Specifications:
| Hardware Features |
|
| Shelf configuration |
|
| Total slots |
Total 4 slots |
| Switch control and GPON ports |
1 slot for switch control and GPON ports |
| Power card |
2 slots for power card |
| Fan |
1 slot for fan |
| System capability |
|
| System throughput |
160 Gbps |
| Subscriber interface |
|
| GPON |
16/8 ports per shelf |
| Uplink interface |
|
| Uplink |
6* 10GE/GE optical per shelf |
| Uplink type |
Uplink type can set to 2 group |
| Clock synchronization interfaces |
|
| Clock interface |
1 * 120Ω 2MBits/2Mhz clock and 1PPS+ToD input/output interface |
| Out-of-band management interface |
1 * out-of-band management interface |
| Digital sensors |
4 * digital sensors (ALM) |
| RS232 serial interface |
1 * RS232 serial interface for local management and environment monitoring |
| PON Features |
|
| GPON |
|
| Standard compliance |
GPON is compliant to ITU G.984.x |
| Optical split ratio |
Support up to 1:128 optical split ratio |
| OLS |
Support OLS |
| Type B optical link protection |
Type B optical link protection |
| FEC |
Support FEC |
| AES-128 encryption |
Support AES-128 encryption |
| L2 Features |
|
| Access control |
MAC filtering, ACL |
| L2-port |
physical Ethernet port, logical Vport and aggregation port, support L2 service and TPID configuration |
| VLAN |
1:1 VLAN, N:1 VLAN, flexible QinQ, VLAN bridge, TLS VLAN, M-VLAN, VLAN reuse |
| MAC address |
32k MAC address, MAC address management, static MAC, MAC address aging/learning/query/number limit |
| Uplink protection |
STP/RSTP/MSTP, LACP and trunking |
| Working Environment |
|
| Operating temperature |
-40 ℃ ~ 65 ℃ |
| Operating humidity |
5% ~ 95%, non-condensing |
| Altitude |
≤ 4000 m |
| Air pressure |
70 kPa ~ 106 kPa |
| Power Supply |
|
| DC voltage range |
-48 V (±20%) / -60 V (±20% |
| Dimensions |
|
| Dimensions |
43.6 mm (H) * 442 mm (W) * 220mm (D) |
| Dimensions including mounting ears |
43.6 mm (H) * 482.6 mm (W) * 220mm (D) (including mounting ears of IEC standard ) |
| Weight |
|
| Cross weight |
7.5 kg(16 GPON) |
| Net weight |
4.9 kg(16 GPON) |
