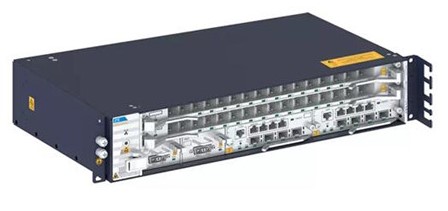

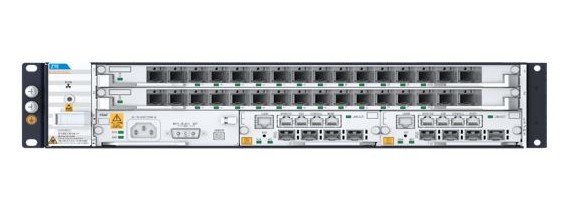

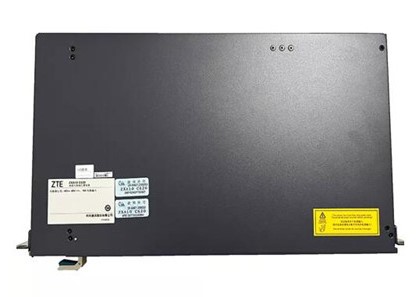

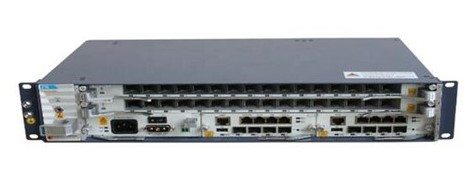

ZTE ZXA10 C620 Supports 32GPON/10G PON Ports, 2U Optical Line Terminal (OLT)

ZTE ZXA10 C620 Supports 32GPON/10G PON Ports, 2U Optical Line Terminal (OLT)

The ZTE ZXA10 C620 is a 2U Optical Line Terminal designed for full-service fiber access networks, supporting 32 GPON, 10G PON, Any-PON, or Combo PON ports. It supports multiple PON technologies and service access scenarios within a compact platform.

The ZXA10 C620 supports three generations of PON technologies and directions, with two generations of PON, including GPON and XG(S)-PON, available in one card. It supports full services and scenarios such as big video, 5G bearing, and access office rearchitecture.

The ZTE ZXA10 C620 provides a 1.8 Tbit/s backplane bus switching capacity, 240 Gbit/s switching and control card capacity, and 480 Gbit/s system switching capacity. Its shelf configuration includes six slots for AC operation or seven slots for DC operation, with dedicated service, switching and control, power, and fan module slots.

For PON access, the C620 supports GPON, XG-PON, XGS-PON, and Combo PON. GPON supports up to a 1:128 optical split ratio, while XG-PON and XGS-PON support up to 1:256. The platform also provides OLS, optical link protection, FEC, AES-128 encryption, and up to 60 km maximum logical distance.

The ZXA10 C620 also provides extensive L2/L3, QoS, routing, VLAN, MAC management, and traffic control functions. It supports -48 V or -60 V DC power and 100 V to 240 V AC power, with an operating temperature range of -40°C to 65°C and a compact 88.1 mm × 482.6 mm × 283.5 mm chassis.

Key features

• Supports 32 GPON, 10G PON, Any-PON, or Combo PON ports

• Supports GPON, XG-PON, XGS-PON, and Combo PON

• 1.8 Tbit/s backplane bus switching capacity

• 480 Gbit/s system switching capacity

• Supports up to 1:256 optical split ratio for XG-PON and XGS-PON

• Supports up to 60 km maximum logical distance

• 4 × 10GE/GE uplinks per switching and control card

• Operating temperature from -40°C to 65°C
