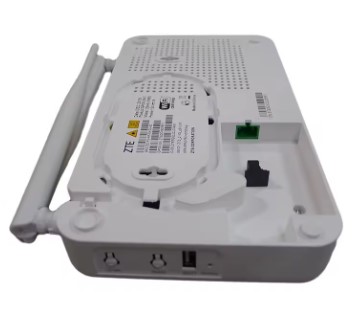

ZTE ZXHN F660, N300 gigabit GPON Optical Network Terminal (ONT)

ZTE ZXHN F660 N300 Gigabit GPON Optical Network Terminal (ONT)

ZTE ZXHN F660 is a GPON Optical Network Terminal designed for home users and Fiber to the Home (FTTH) deployments. It combines GPON WAN access with four Gigabit Ethernet ports, a phone interface, USB connectivity, and 2.4 GHz Wi-Fi for flexible residential broadband networking.

The ZXHN F660 provides 4xGE LAN ports for wired Gigabit connectivity and supports IEEE 802.11b/g/n 2x2 Wi-Fi at 2.4 GHz. With two external antennas, the ZTE GPON ONT can provide wireless network access for compatible devices while maintaining wired connectivity for computers, network equipment, and other Ethernet-enabled devices.

The integrated 1xFXS interface supports residential voice connectivity, while the 1xUSB port provides additional device connectivity. Reset, On/Off, WPS, and Wi-Fi buttons provide convenient access to common device functions, while dedicated LEDs for Power, PON, LOS, Internet, Wi-Fi, LAN, Phone, WPS, and USB provide clear operating status information.

Designed for FTTH scenarios, the ZTE ZXHN F660 supports both desktop and wall mounting, allowing flexible installation in residential environments. Its compact 185 mm × 32 mm × 110 mm design and 260 g net weight make it suitable for space-conscious home network deployments.

The ZTE ZXHN F660 operates from a 12 V DC, 1.0 A power supply and supports an operating temperature range of 0°C to 40°C with 5%–95% humidity. CE, Wi-Fi, and RoHS certifications further support its use as a residential GPON ONT for compatible FTTH network installations.

Key features

• GPON WAN interface for FTTH connectivity

• 4xGE Gigabit Ethernet LAN ports

• 2x2 IEEE 802.11b/g/n Wi-Fi at 2.4 GHz

• Two external Wi-Fi antennas

• 1xFXS phone interface

• 1xUSB interface

• Desktop and wall mounting support

• N300-class residential wireless networking

Specifications:
